Product Info
- Manufacturer:Eaton
- Sub-Category:High Voltage Fuse
Description
72DBA1-100E

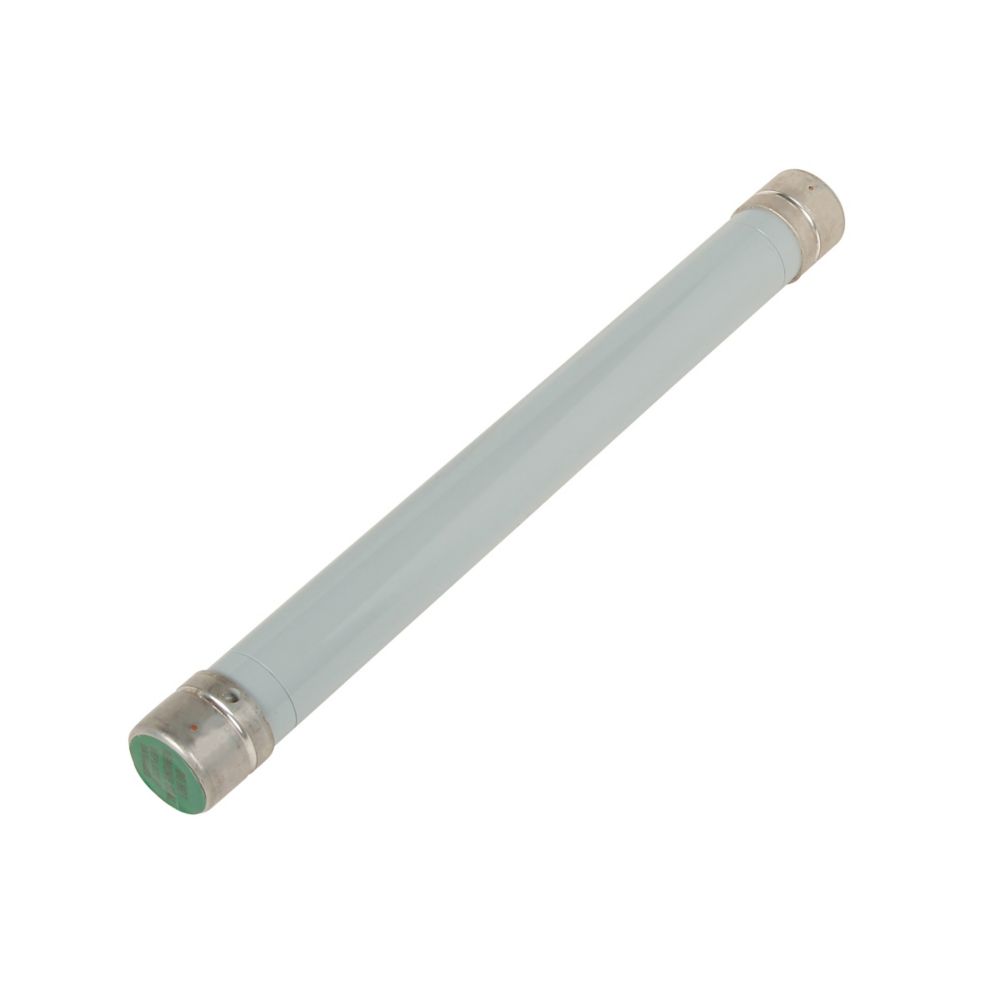

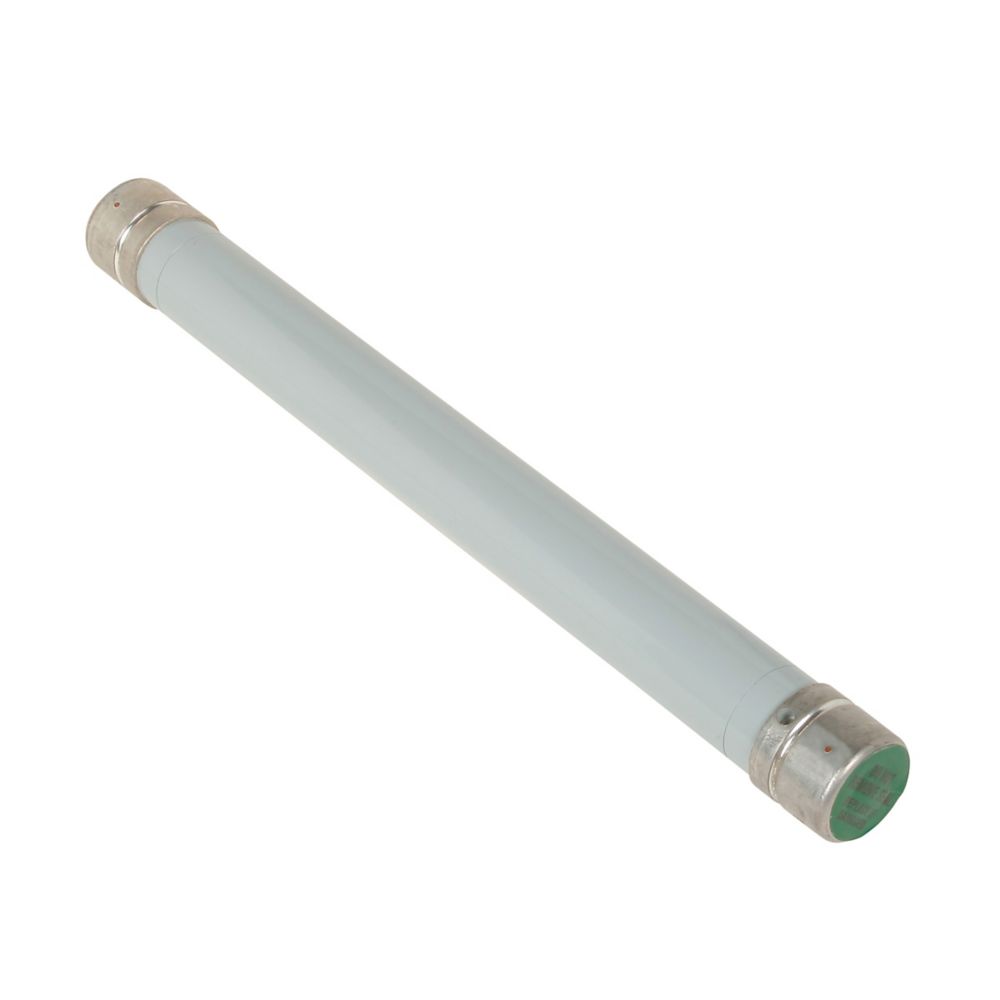

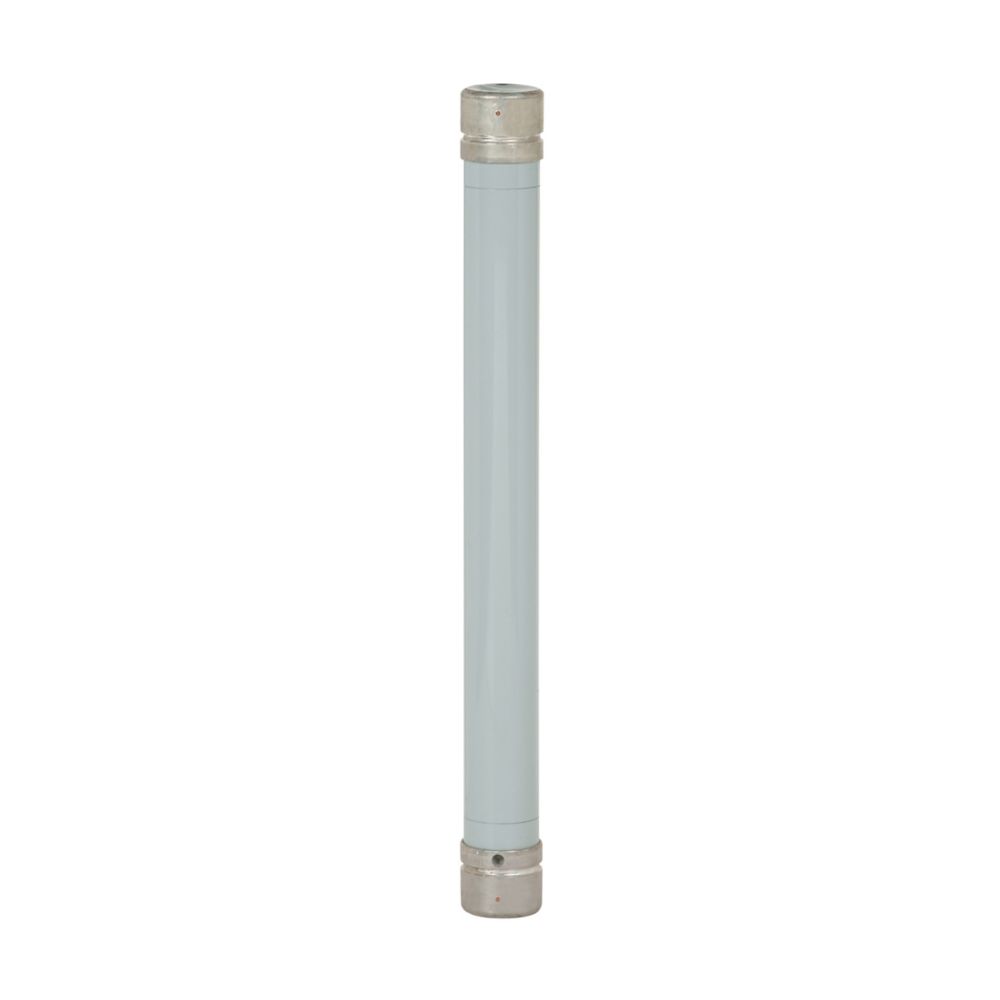

72DBA1-100E is an Eaton DBA-1 Class E expulsion fuse refill rated for 100 amperes and 72.5 kV maximum voltage.
This expulsion fuse refill is designed for use in high-voltage power distribution systems, providing reliable overcurrent protection. It is a Type DBA1 fuse with a 100E rating, suitable for 69 kV nominal and up to 72 kV maximum voltage applications. The fuse is 1 inch in height and length, and it is part of Eaton's Class E fuse series, known for its defined melting characteristics under overcurrent conditions. Mounting hardware is not included as mountings are no longer available for this fuse type.
- Amperage: 100A
- Maximum Voltage: 72.5 kV
- Nominal Voltage: 69 kV
- Fuse Type: DBA-1 Expulsion Fuse Refill
- Fuse Class: Class E
- Physical Dimensions: Approximately 1 inch height and length
- Series: DBA1
- Mounting: Mountings not available
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 72DBA1-100E
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : High Voltage Fuse
- Family : DBA
- Type : DBA1
- Voltage : 69000
- Amperage : 100
- AIC rating : 10kA@72kV
- Connection : Ferrule
- Class Rating : E
- Barrels : 1
- Velocity : Standard
Product Data
- UPC : 78667024517
- GTIN : 00786670245179
- Country of Origin : Dominican Republic
- Dimensions : 43.88 in x 1.7 in x 1.7 in (Length/Depth x Height x Width)
- Weight : 7
- Certification : IEEE Std. C37.41
