Product Info
- Manufacturer:Littelfuse
- Sub-Category:Medium Voltage Fuse
Description
702R1C5.5W

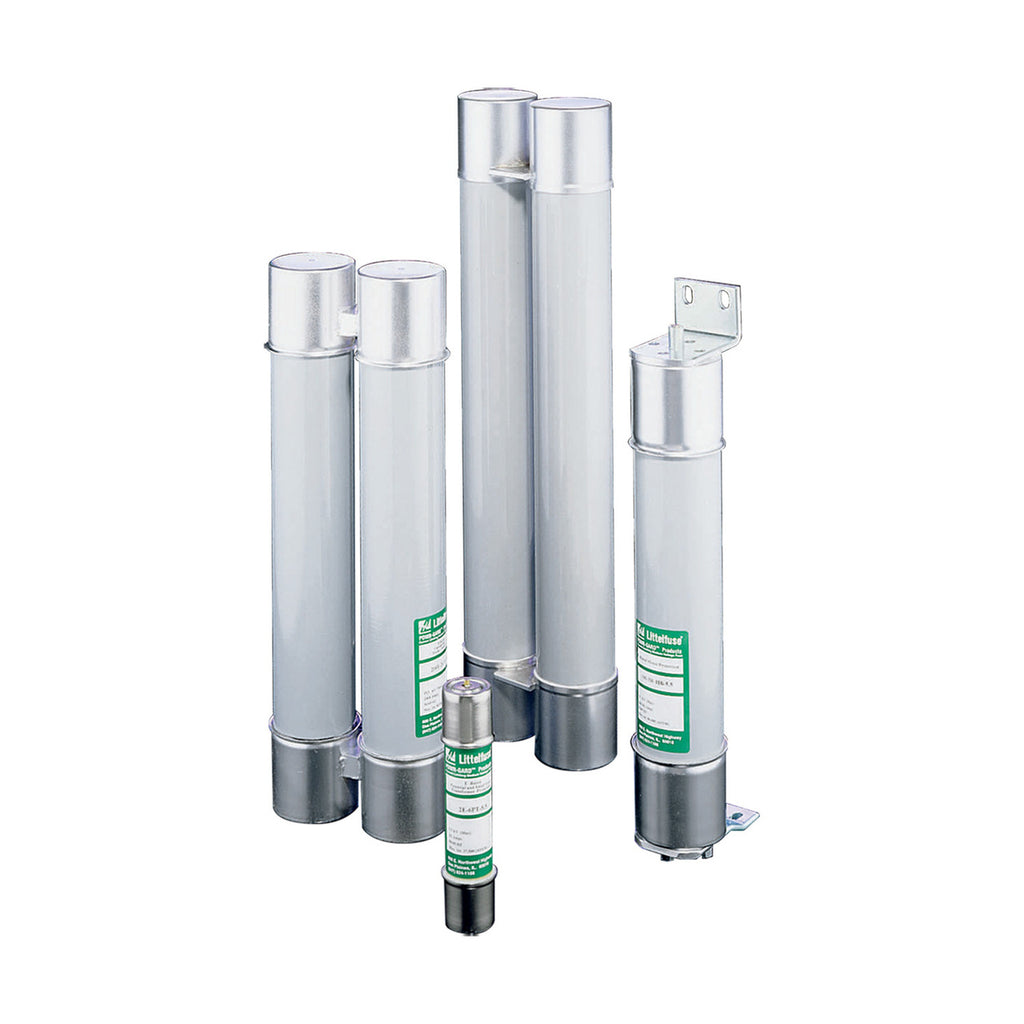

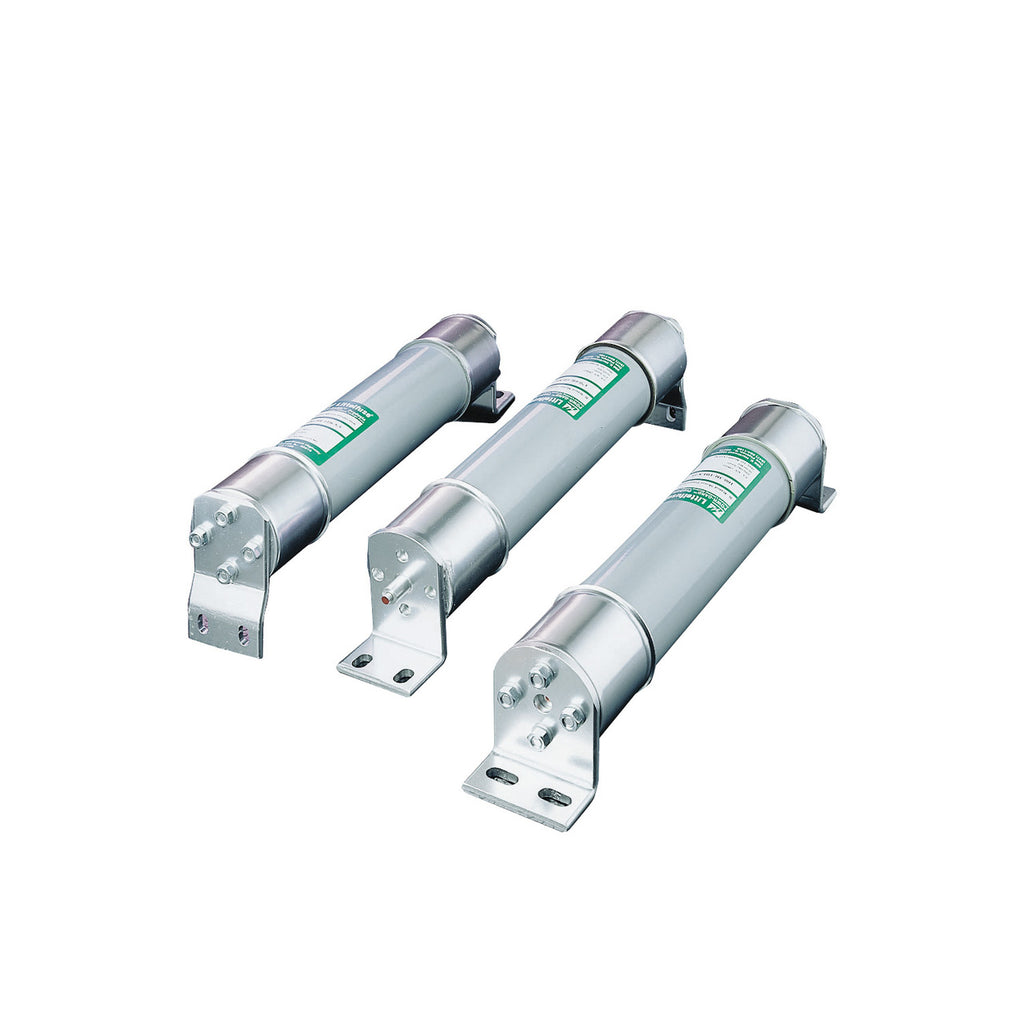

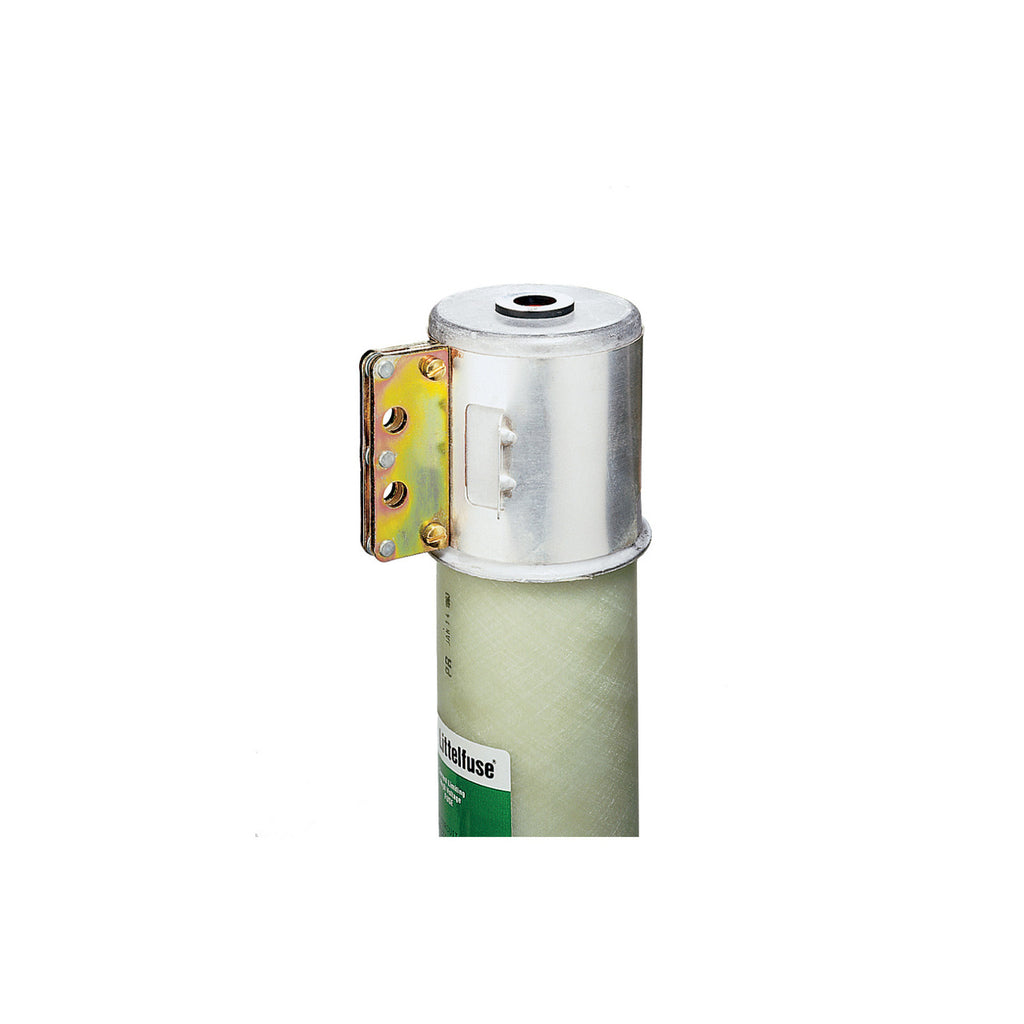

702R1C5.5W is a Littelfuse POWR-GARD R-Rated medium voltage fuse designed to provide short-circuit protection for medium voltage motors, motor controllers, and associated circuitry. This current-limiting fuse delivers reliable overcurrent protection in demanding industrial applications requiring medium voltage distribution. 702R1C5.5W features a cartridge design with mechanical indicator for visual fault indication. The fuse combines high interrupt capability with compact construction to meet the protection requirements of modern power distribution systems.
- Current Rating: 70 Amperes continuous
- Voltage Rating: 5.5 kV AC (5500 VAC)
- Interrupt Rating: 80 kA at 5.5 kV
- Fuse Type: R-Rated, Current Limiting
- Termination Style: Cartridge (Non-Standard)
- Fuse Size/Group: 2R

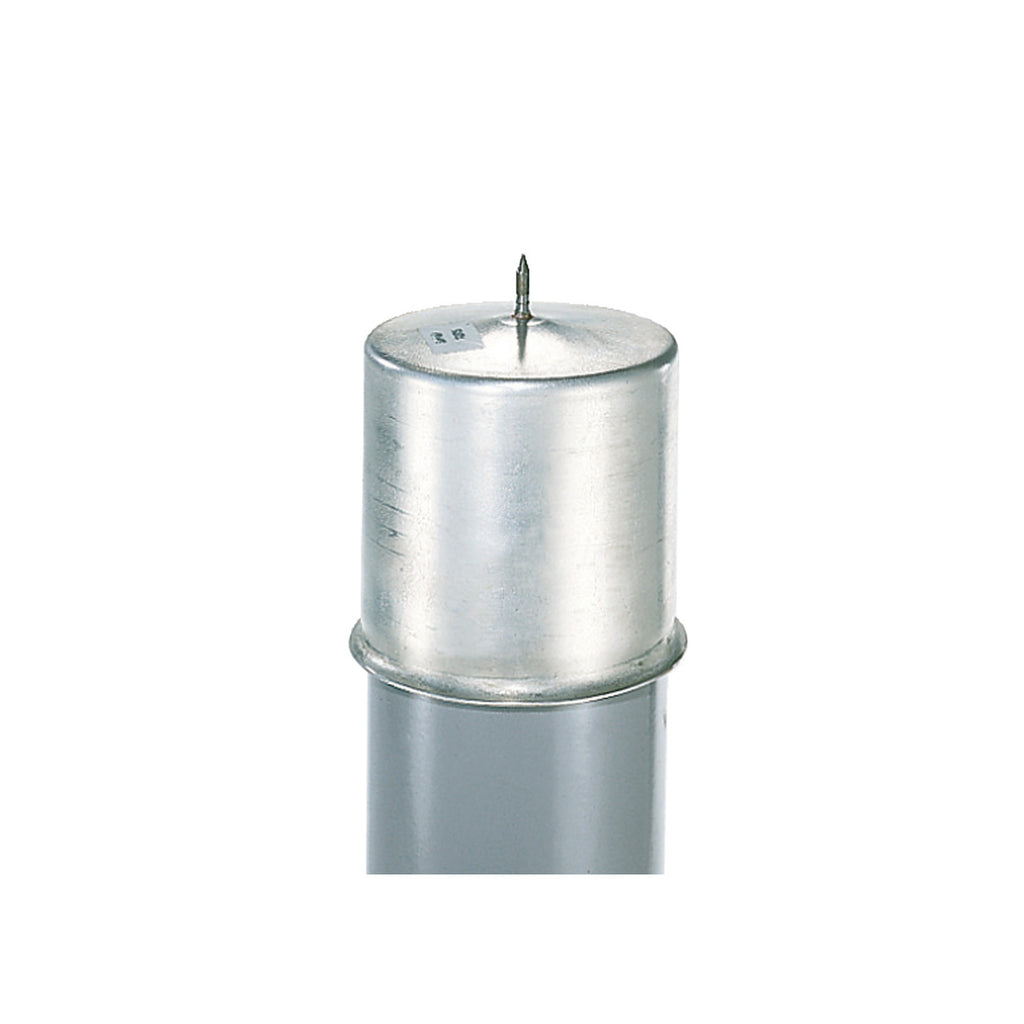

- Indicator: Mechanical Indicator
- Length: 15.875 inches
- Diameter: 3 inches
- Protection Type: Medium Voltage Fuse
- Series: POWR-GARD
Specifications
- Part Number: 702R1C5.5W
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : R Rated
- Type : R Rated
- Voltage : 5500
- Amperage : 70
- AIC rating : [email protected]
- Diameter : 3
- Class Rating : R
- Barrels : 1
- Clip Center : 12
Product Data
- UPC : 07945804183
- GTIN : 00079458041835
- Weight : 5.19
