700FMM - Eaton 700A 690VAC/450VDC High Speed British Standard Fuse Class aR 200kA Interrupt Rating

700FMM

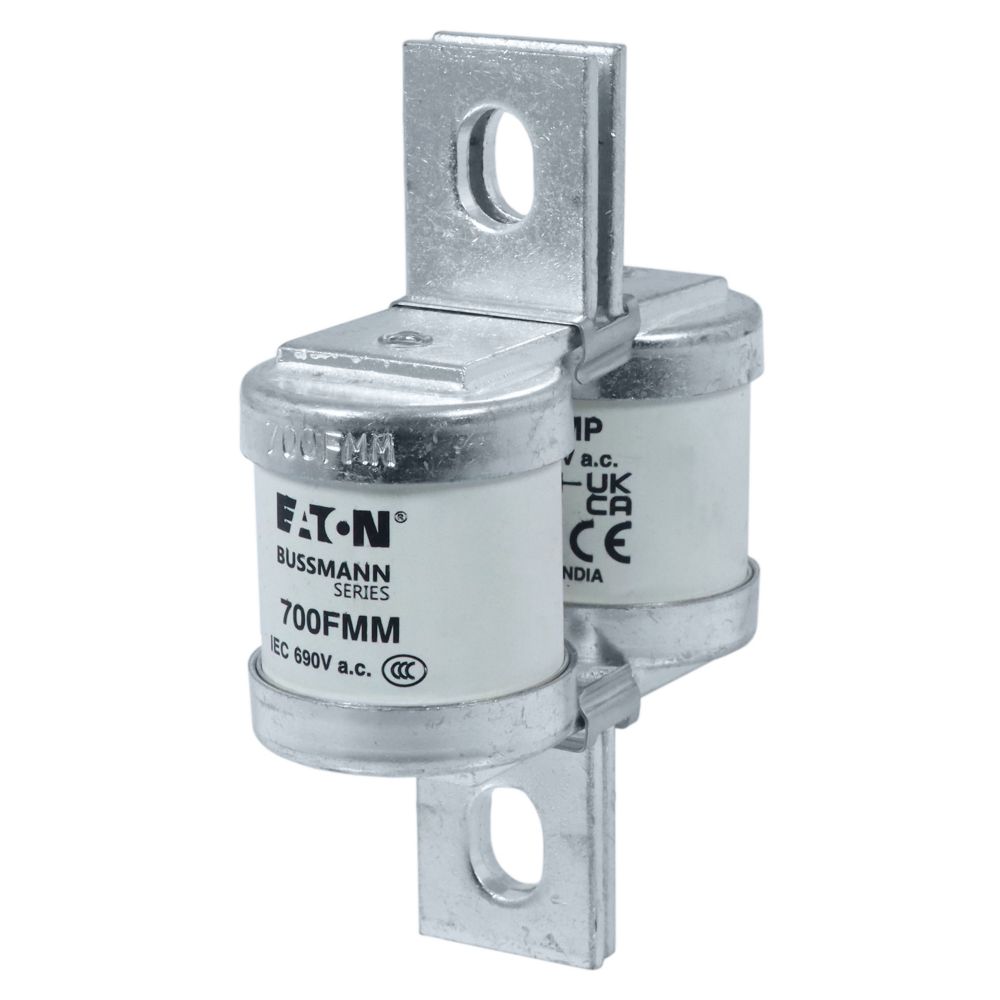

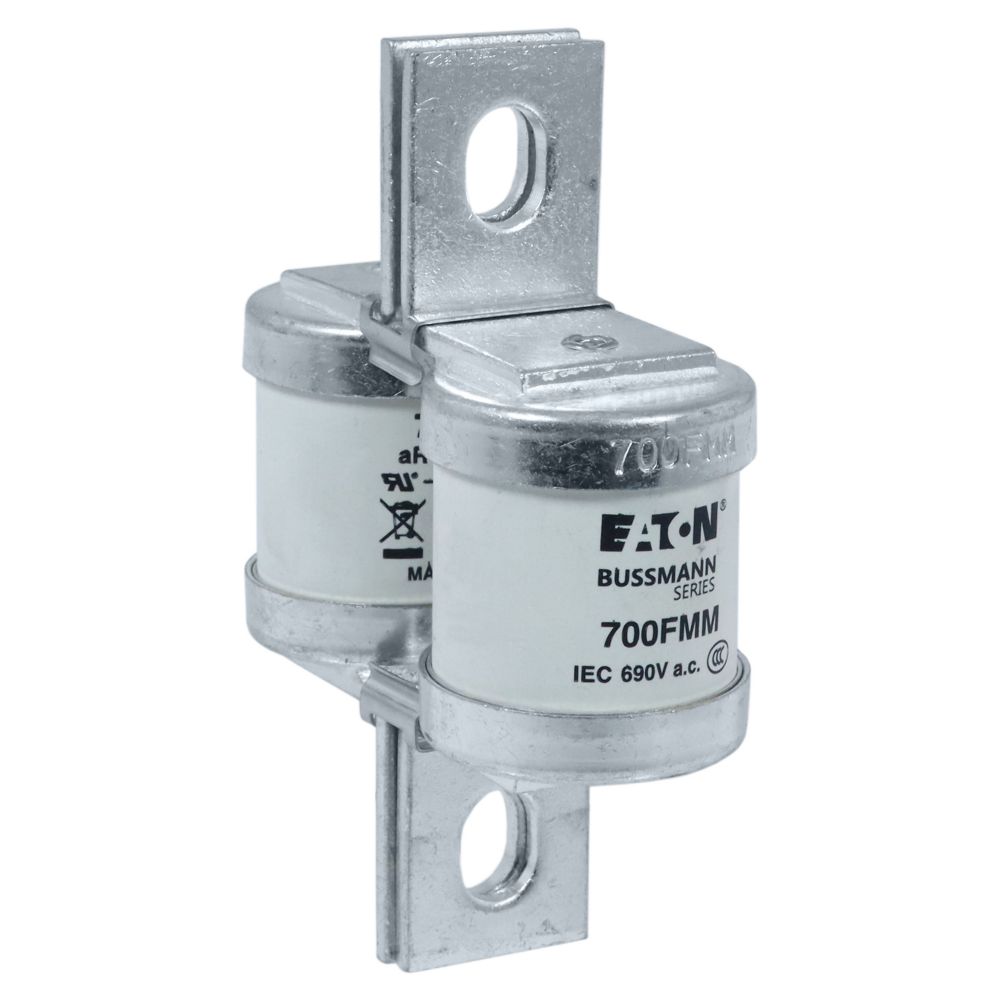

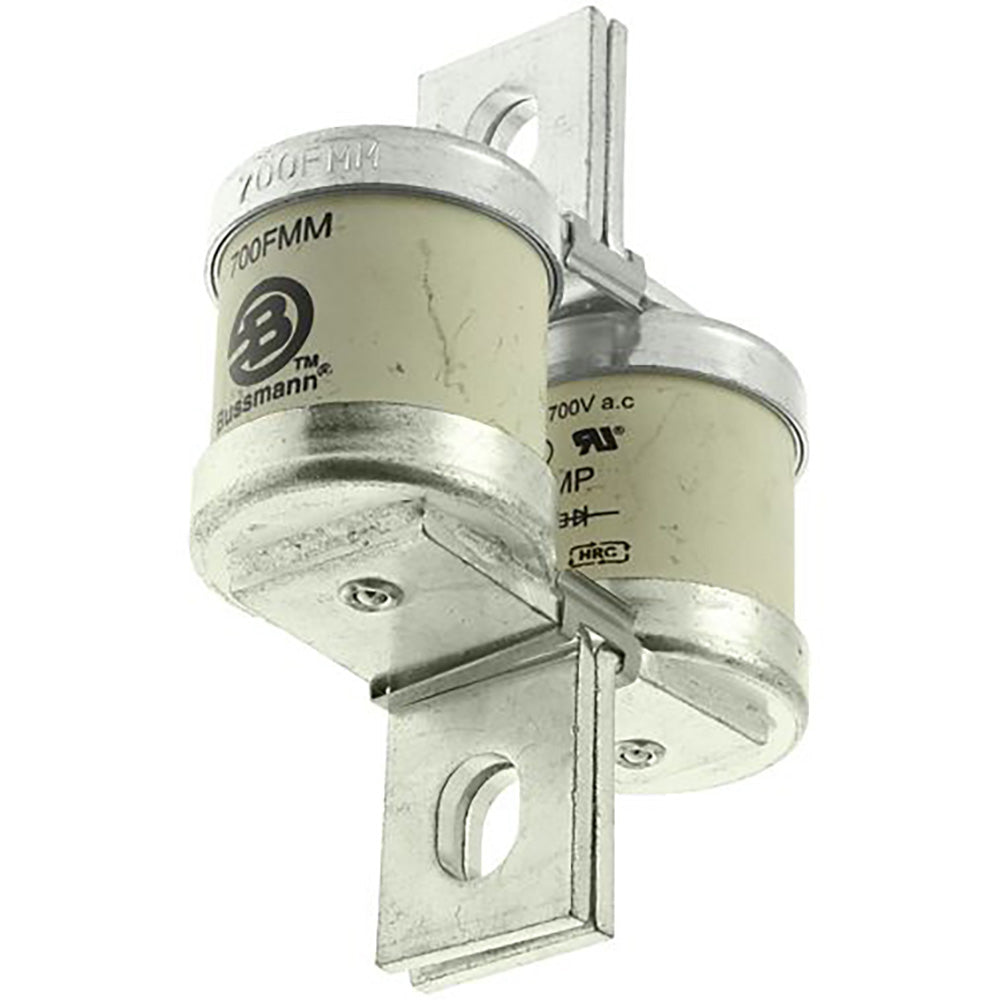

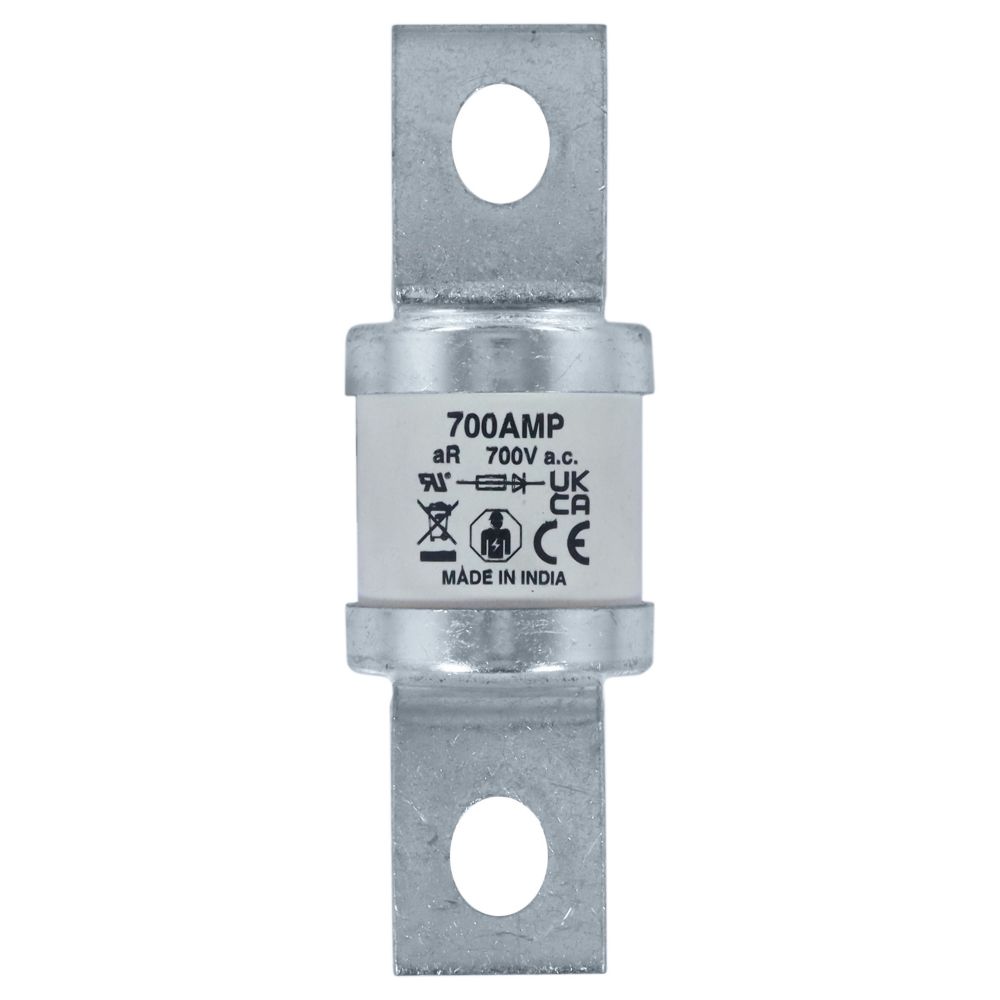

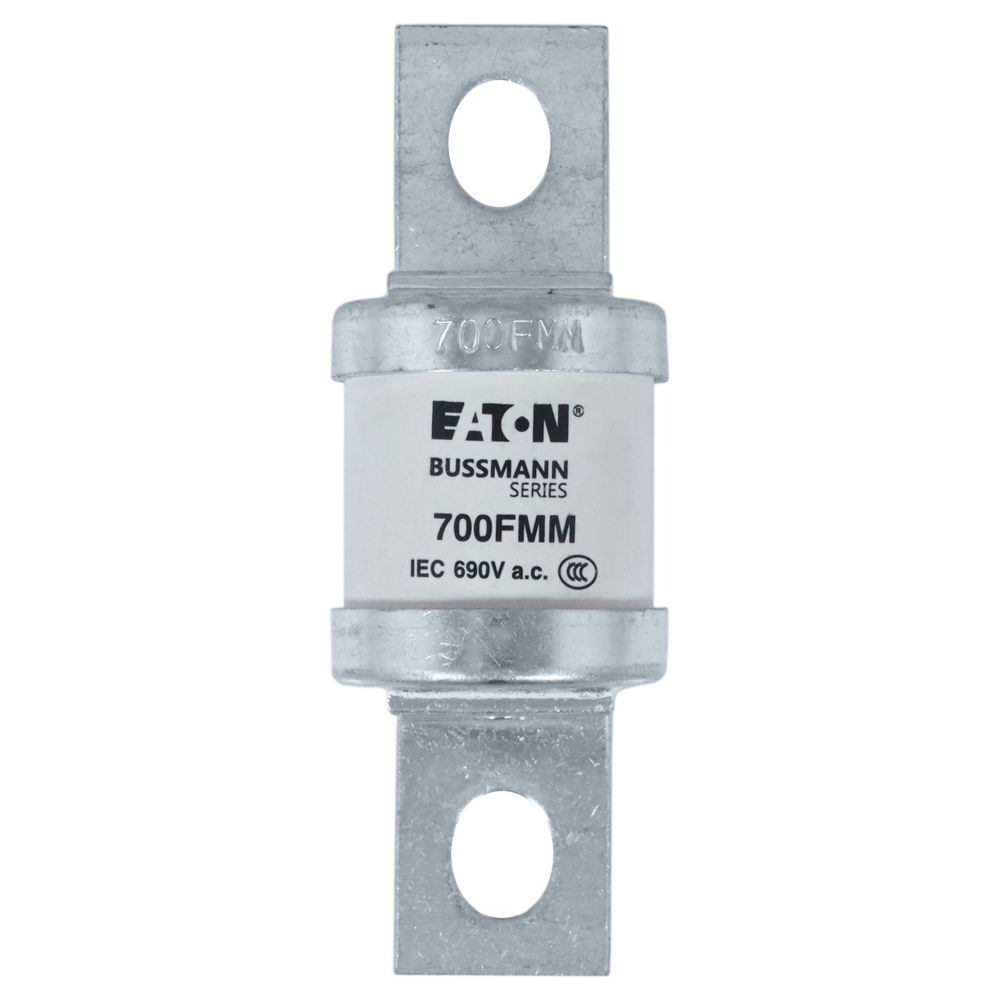

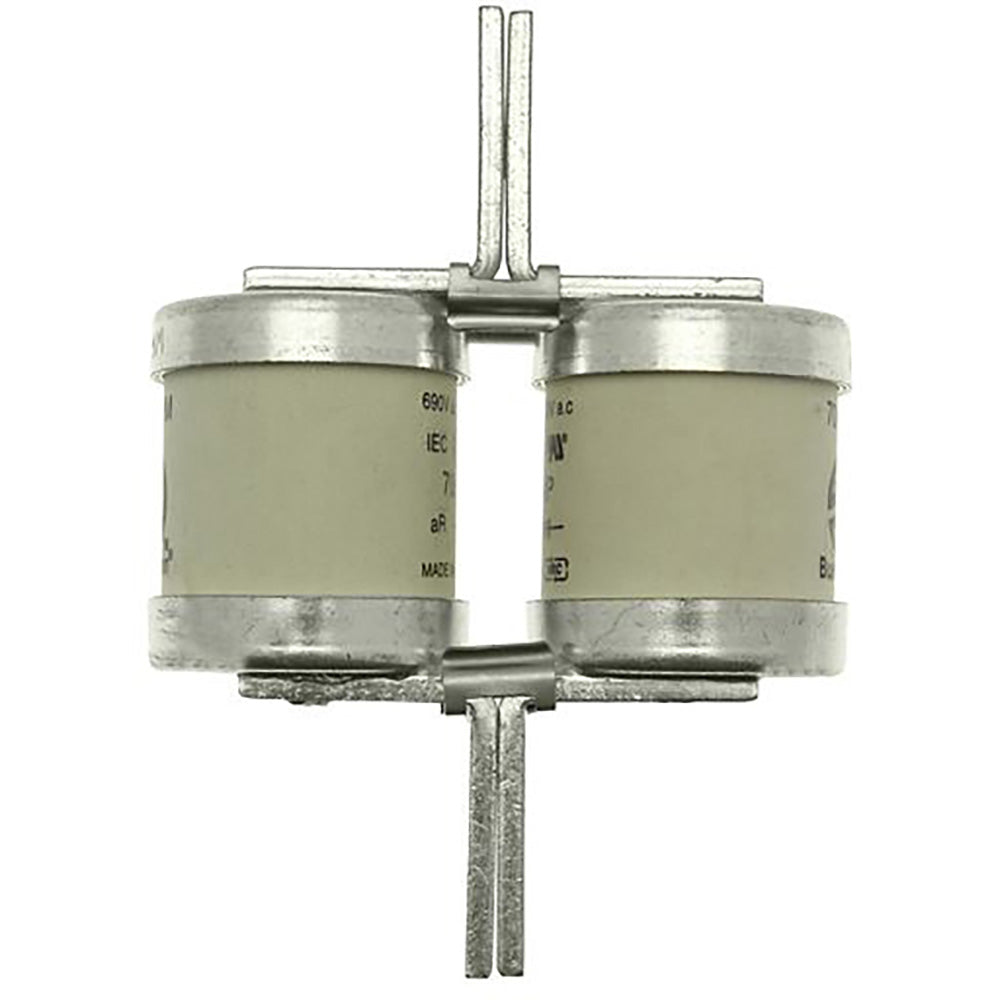

This double barrel fuse is rated at 700 amps with a voltage rating of 690 VAC and 450 VDC. It features a Class aR rating and a high interrupting capacity of 200 kA RMS symmetrical at AC voltage and 40 kA at 450 VDC. The fuse measures 112 mm in length, 38 mm in height, and 83 mm in width, and is CE marked, RoHS compliant, UL recognized, IEC rated, and designed to BS88 part 4 and IEC 60269-4 standards.

Key Specifications
• Amperage: 700 A
• Voltage Rating AC: 690 V
• Voltage Rating DC: 450 V
• Interrupt Rating AC: 200 kA RMS Symmetrical
• Interrupt Rating DC: 40 kA at 450 VDC
• Class: aR
• Fuse Type: High Speed, Double Barrel
• Dimensions: 112 mm x 38 mm x 83 mm (L x H x W)
• Certifications: CE Marked, RoHS Compliant, UL Recognized, IEC Rated, CCC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.




Specifications

• Part Number: 700FMM
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Type : FMM
• Voltage : 690
• Amperage : 700
• AIC rating : 200kA@690V
• Connection : Bolt-In
• Class Rating : T
• Barrels : 1



Product Data

• UPC : 05171255303
• GTIN : 00051712553032
• Country of Origin : India
• Dimensions : 112 mm x 38 mm x 83 mm (Length/Depth x Height x Width)
• Weight : 1.0396
• Certification : UL, CSA
