Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage
Description
676C546G02

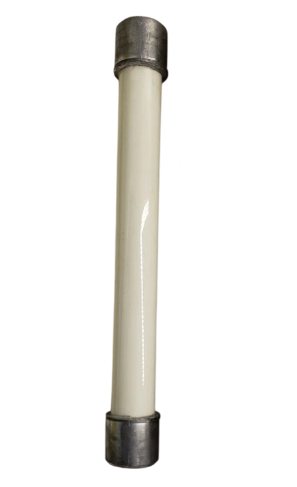

676C546G02 is an Eaton medium voltage transformer protection fuse designed for reliable overcurrent protection in power distribution systems.This fuse is part of Eaton's CLE-PT series, suitable for potential and small power transformers with a voltage rating of 7.2 kV and an amperage rating of 0.5E. It features a current-limiting design to protect equipment from fault currents and has a clip center dimension of approximately 8.12 inches and a diameter of 1.62 inches. The fuse is rated for use at 25/60 Hz frequency and provides high interrupting capacity for safe operation.
- Key Specifications
- Manufacturer: Eaton
- Part Number: 676C546G02
- Series: CLE-PT
- Voltage Rating: 7.2 kV
- Amperage Rating: 0.5E
- Frequency: 25/60 Hz
- Mounting Type: Clip Mount
- Clip Center: 8.12 inches
- Diameter: 1.62 inches
- Application: Transformer Protection
Specifications
- Part Number: 676C546G02
- Manufacturer : Eaton
- Brand : Culter Hammer
- Category : Fuse
- Item Subcategory : Medium Voltage
- Family : CLS
- Type : CLS
- Voltage : 2540
- Amperage : 70
- AIC rating : [email protected]
- Diameter : 3
- Class Rating : R
- Barrels : 1
- Clip Center : 7
Product Data
- Weight : 7
