Product Info
- Manufacturer:Mersen
- Sub-Category:Fuse Block
Description
62053J

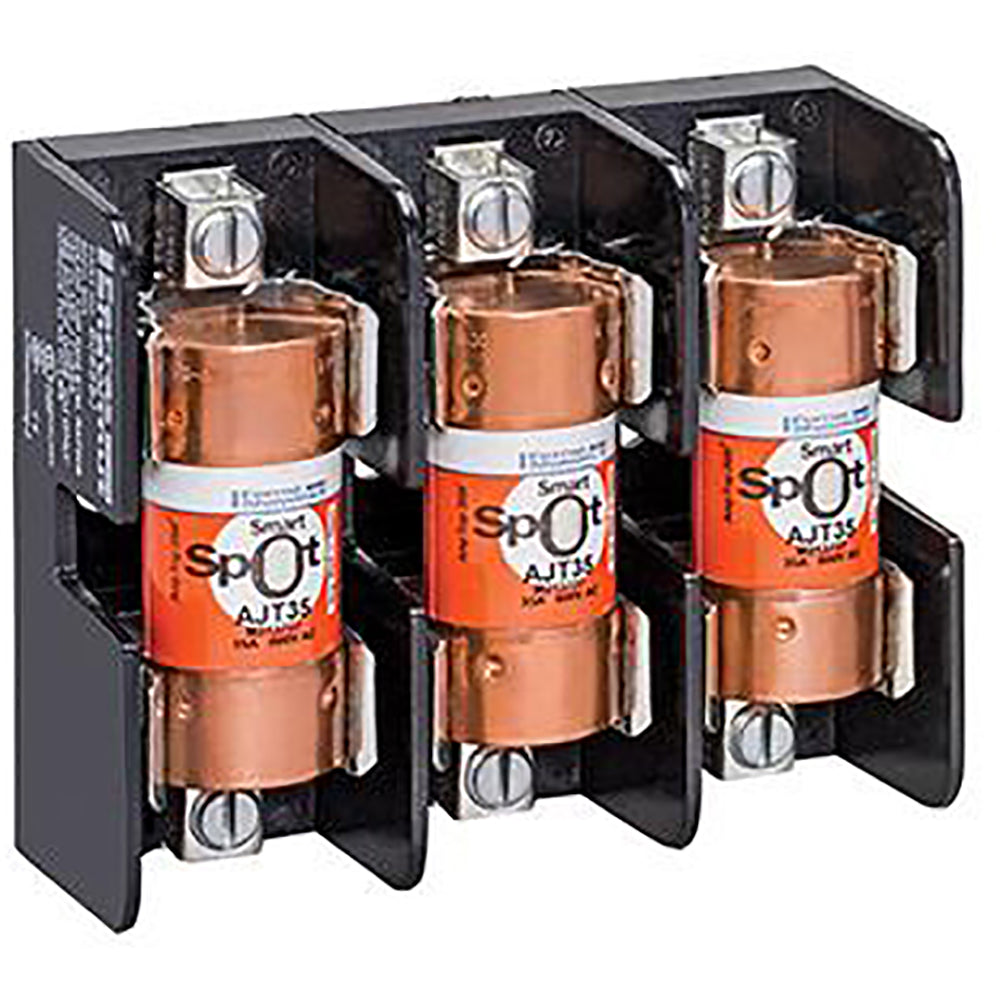

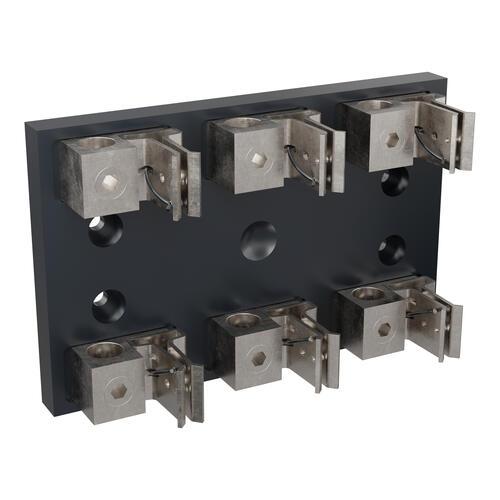

62053J is a Mersen open style fuse block rated for 600V AC/DC at 200A with Class J fuse compatibility and 3-pole configuration. This barrier-type fuse block features phenolic insulation material and accommodates wire sizes from 6 AWG to 350 kcmil copper conductors with box lug and side clip terminal connections. Key Specifications
- Voltage Rating: 600V AC/DC
- Amperage Rating: 200A
- Fuse Class: Class J
- Number of Poles: 3
- Mounting Type: Open Style Barrier
- Insulation Material: Phenolic (GFPC)
- Wire Size Range: 6 AWG to 350 kcmil
- Terminal Type: Box Lug and Side Clip
- Temperature Rating: -25 degrees
- Certifications: UL, CSA Approved
- Dimensions: 6.13 in L x 9.63 in W x 2.9 in H
- Weight: 2224.6 g
Specifications
- Part Number: 62053J
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Fuse Block
- Type : 620
- Voltage : 600
- Amperage : 200
- Mounting : Side Clip
Product Data
- UPC : 78200175822
- GTIN : 00782001758226
- Country of Origin : Mexico
- Dimensions : 9.63 in x 6.13 in x 2.90 in
- Weight : 1
