Product Info
- Manufacturer:Eaton
- Sub-Category:Fuse Block
Description
62003R

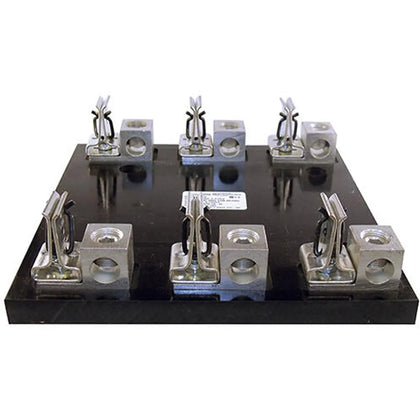

62003R is a Mersen Class R fuse block designed for 200 amp, 600 volt AC/DC applications with 3 poles.This open style fuse block supports Class R fuses and accommodates wire sizes from 6 AWG to 350 kcmil aluminum or copper. It features a phenolic barrier type body with spring reinforced clips and box lug side terminals. The fuse holder is UL and CSA approved, suitable for industrial, commercial, and residential power distribution systems.
- Amperage Rating: 200 A
- Voltage Rating: 600 V AC/DC
- Poles: 3
- Fuse Class: Class R
- Mounting Type: Open Style
- Wire Size Range: 6 AWG to 350 kcmil (Al/Cu)
- Terminal Type: Box Lug, Side Clip
- Body Material: Phenolic (GFPC)
- Interrupt Rating: UL Listed for Class R fuses
- Certifications: UL, CSA Approved
- Spring Reinforced Clip Type
- RoHS Compliant
Specifications
- Part Number: 62003R
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Fuse Block
- Type : 620
- Voltage : 600
- Amperage : 200
- Mounting : Side Clip
Product Data
- UPC : 78200166501
- GTIN : 00782001665012
- Country of Origin : Mexico
- Dimensions : 10 in x 8 in x 2.91 in
- Weight : 1
- Certification : CSA Certified, UL Listed
