Product Info
- Manufacturer:S&C Electric
- Sub-Category:Medium Voltage
Description
612200

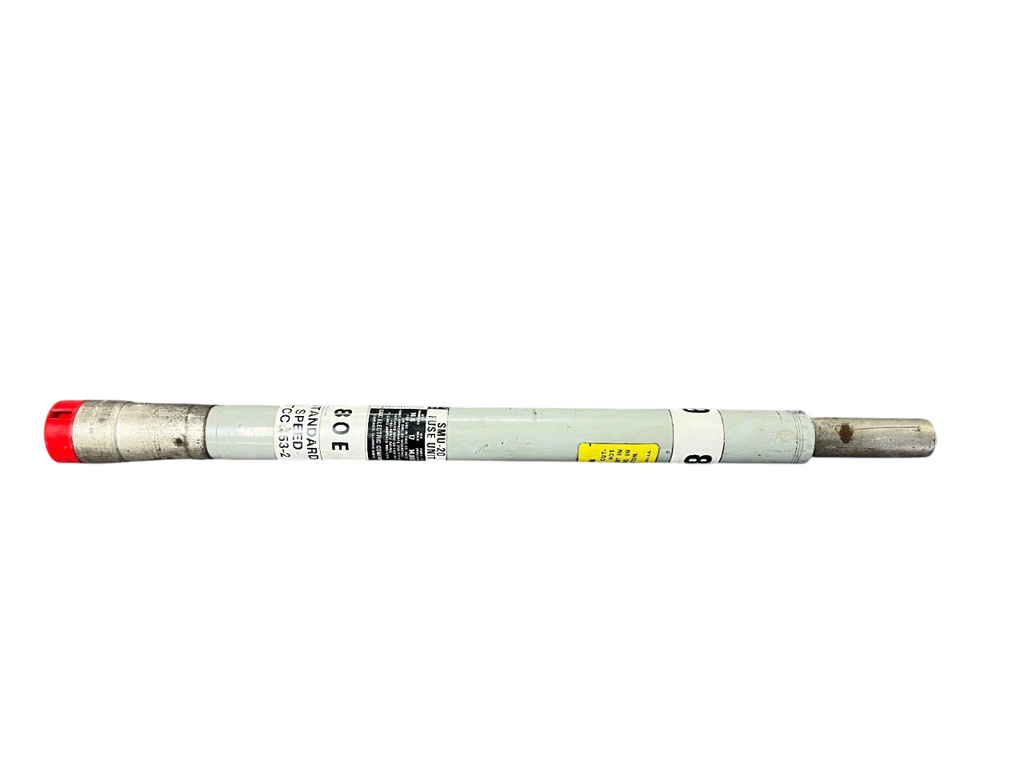

612200 is a S&C Electric SMU-20 medium voltage fuse rated for 200 amperes and 17,000 volts designed for reliable protection in demanding electrical distribution applications. This fuse provides current-limiting protection with a standard speed curve and is suitable for use in outdoor distribution systems.
The 612200 fuse features a 200E amperage rating and a maximum voltage rating of 17 kV (14.4 kV nominal). It is part of the SMU-20 series, known for its robust interrupting capability up to 14,000 amperes symmetrical at 60 Hz. The fuse is designed for use with SMD-20 fuse mountings and offers a time-current characteristic (TCC) suitable for coordination with other protective devices in medium voltage networks.
- Amperage: 200E
- Voltage Rating: 17,000 V maximum (14.4 kV nominal)
- Fuse Type: SMU-20
- Interrupting Rating: Up to 14,000 amperes symmetrical
- Speed Curve: Standard
- Application: Medium voltage outdoor distribution
- Compatible Mounting: SMD-20 fuse mounting
- Designed for current-limiting protection
- Suitable for 60 Hz systems
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 612200
- Manufacturer : S&C Electric
- Brand : S&C Electric
- Category : Fuse
- Item Subcategory : Medium Voltage
- Family : SMU-20
- Type : E
- Voltage : 17000
- Amperage : 200
- Class Rating : E
- Mounting : Condenser
Product Data
- Weight : 1
