Product Info
- Manufacturer:Eaton
- Sub-Category:Fuse Block
Description
61038R

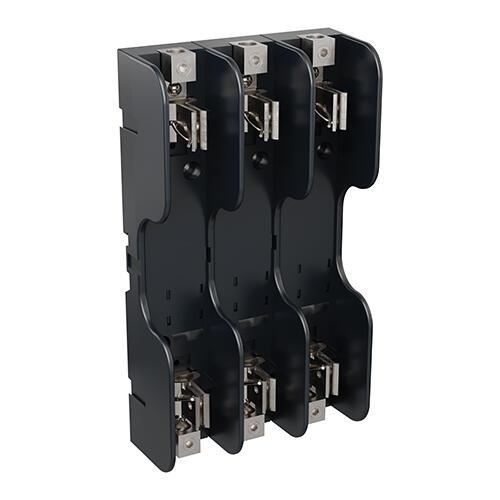

61038R is a 3-pole Class R fuse block from Eaton designed for 100 amp, 600 volt AC/DC applications.61038R fuse block features a bolt-down mounting style with box lug connectors suitable for wire sizes 6 AWG to 2/0 AWG. It supports clip-in fuse installation and is rated for a short circuit current of 200 kA. The body is made of durable polycarbonate with spring reinforced clips and is UL listed, CSA certified, and meets UL 4248 standards.
- Amperage: 100 A max
- Voltage Rating: 600 V AC/DC
- Number of Poles: 3
- Mounting Type: Bolt-Down or DIN Rail
- Fuse Type: Class R
- Short Circuit Current Rating: 200 kA
- Connector Type: Box Lug (Aluminum/Copper)
- Wire Range: 6 AWG to 2/0 AWG
- Body Material: Polycarbonate
- Fuse Installation: Clip-in
- Certifications: UL Listed, CSA Certified
- Torque Rating: 120 lb-in
Specifications
- Part Number: 61038R
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Fuse Block
- Type : 610
- Voltage : 600
- Amperage : 100
Product Data
- UPC : 78200166500
- GTIN : 00782001665005
- Country of Origin : Mexico
- Dimensions : 5.80 in x 10.08 in x 2.48 in
- Weight : 1
- Certification : CSA Certified, UL Listed
