Product Info
- Manufacturer:Mersen
- Sub-Category:Fuse Block
Description
61036R

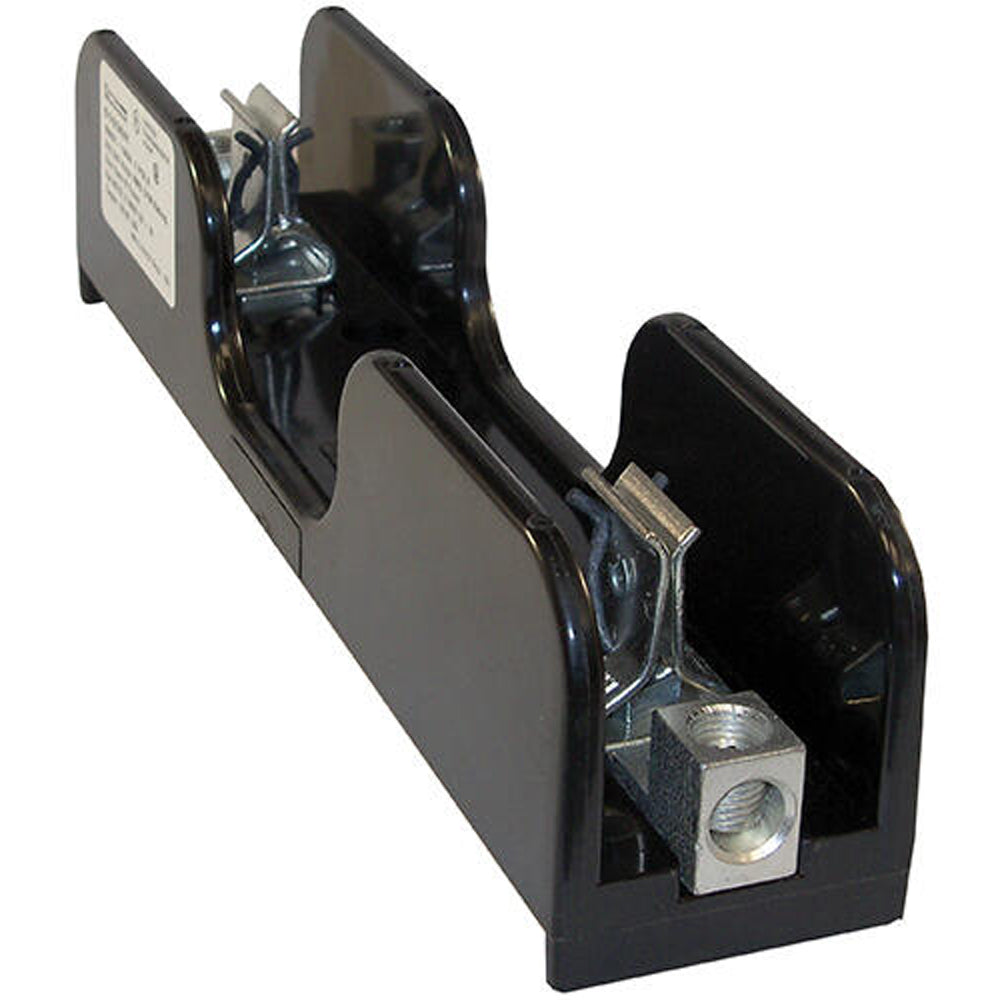

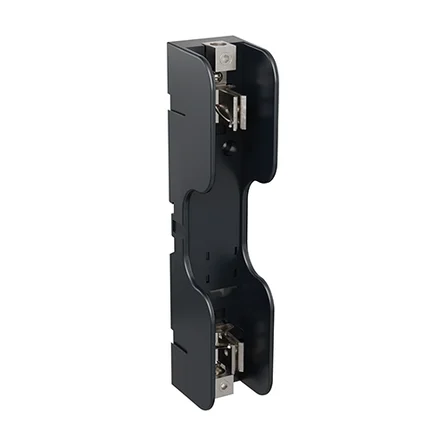

61036R is a Mersen Ferraz Shawmut Class R fuse block designed for 100 amp, 600 volt applications with a single pole configuration.This fuse holder features a threaded mounting type suitable for secure installation and supports Class R fuses with a maximum rating of 100 amps and 600 volts AC/DC. It includes spring reinforced clips and box lugs compatible with aluminum and copper conductors from 6 AWG to 2/0 AWG wire sizes. The compact design measures approximately 256 mm in length, 53.3 mm in width, and 63 mm in height, making it ideal for panel mounting or DIN rail installation.
- Amperage: 100 A
- Voltage: 600 V AC/DC
- Number of Poles: 1
- Fuse Class: R (compatible with RK1 and RK5 fuses)
- Mounting Type: Threaded (Screw Mount or DIN Rail compatible)
- Wire Range: 6 AWG to 2/0 AWG
- Material: GFPC (Glass-Filled Polyester Composite)
- Interrupt Rating: Suitable for Class R fuse applications
- Spring Reinforced Clips for secure fuse retention
- Box Lugs for Al/Cu conductors
- Dimensions: 256 mm L x 53.3 mm W x 63 mm H
- Certifications: UL Listed
Specifications
- Part Number: 61036R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Fuse Block
- Type : 610
- Voltage : 600
- Amperage : 100
Product Data
- UPC : 782001757380
- GTIN : 00782001757380
- Country of Origin : Mexico
- Dimensions : 2.10 in x 10.08 in x 2.48 in
- Weight : 1
- Certification : CSA Certified, UL Listed
