Product Info
- Manufacturer:Mersen
- Sub-Category:Fuse Block
Description

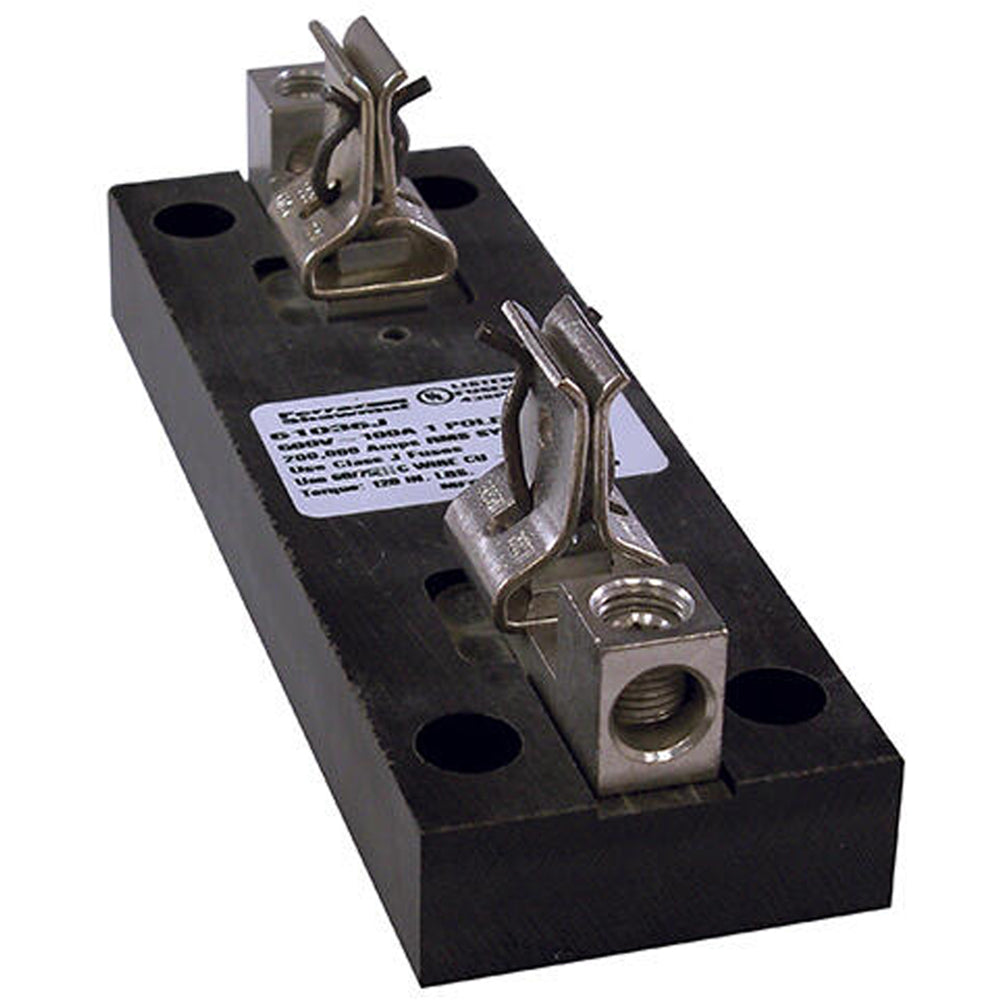

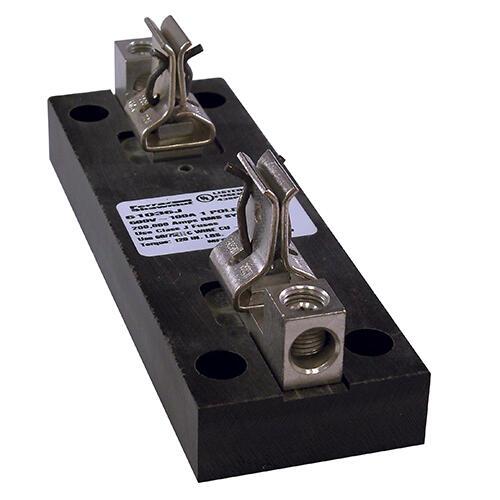

61036J
61036J is a 1-pole Class J fuse block rated for 100 amps and 600 volts AC/DC, designed for reliable fuse protection in electrical systems.This fuse block features a clip-in fuse installation method with a copper box construction, suitable for screw mount or DIN rail installation. It supports Class J fuses with a maximum rating of 100 amps and has a short circuit current rating (SCCR) of 50 kA. The body is made of glass-filled polycarbonate for durability and is RoHS compliant.
- Fuse Class: Class J
- Amperage Rating: 100 A
- Voltage Rating: 600 V AC/DC
- Number of Poles: 1
- Fuse Installation: Clip-in
- Mounting Type: Screw Mount or DIN Rail
- Interrupt Rating (SCCR): 50 kA
- Body Material: Glass Filled Polycarbonate
- Compatible Fuse Series: AJT, A4J, HSJ
- RoHS Compliant: Yes
- Dimensions (HxWxD): Approx. 2.48 x 2.1 x 10.08 inches
Specifications
- Part Number: 61036J
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Fuse Block
- Type : 610
- Voltage : 600
- Amperage : 100
- Mounting : Box
Product Data
- UPC : 78200166519
- GTIN : 00782001665197
- Country of Origin : Mexico
- Dimensions : 2.31 in x 7 in x 2.36 in
- Weight : 1 lb
- Certification : CSA Certified, UL Listed
