Product Info
- Manufacturer:Mersen
- Sub-Category:Fuse Block
Description
61031T

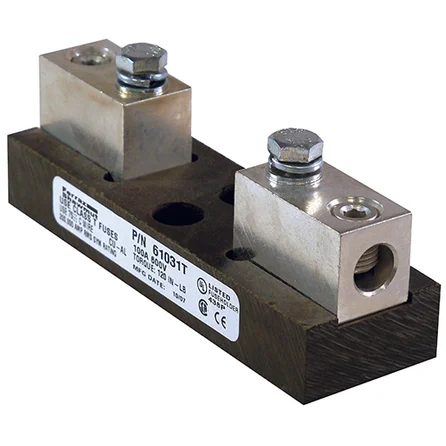

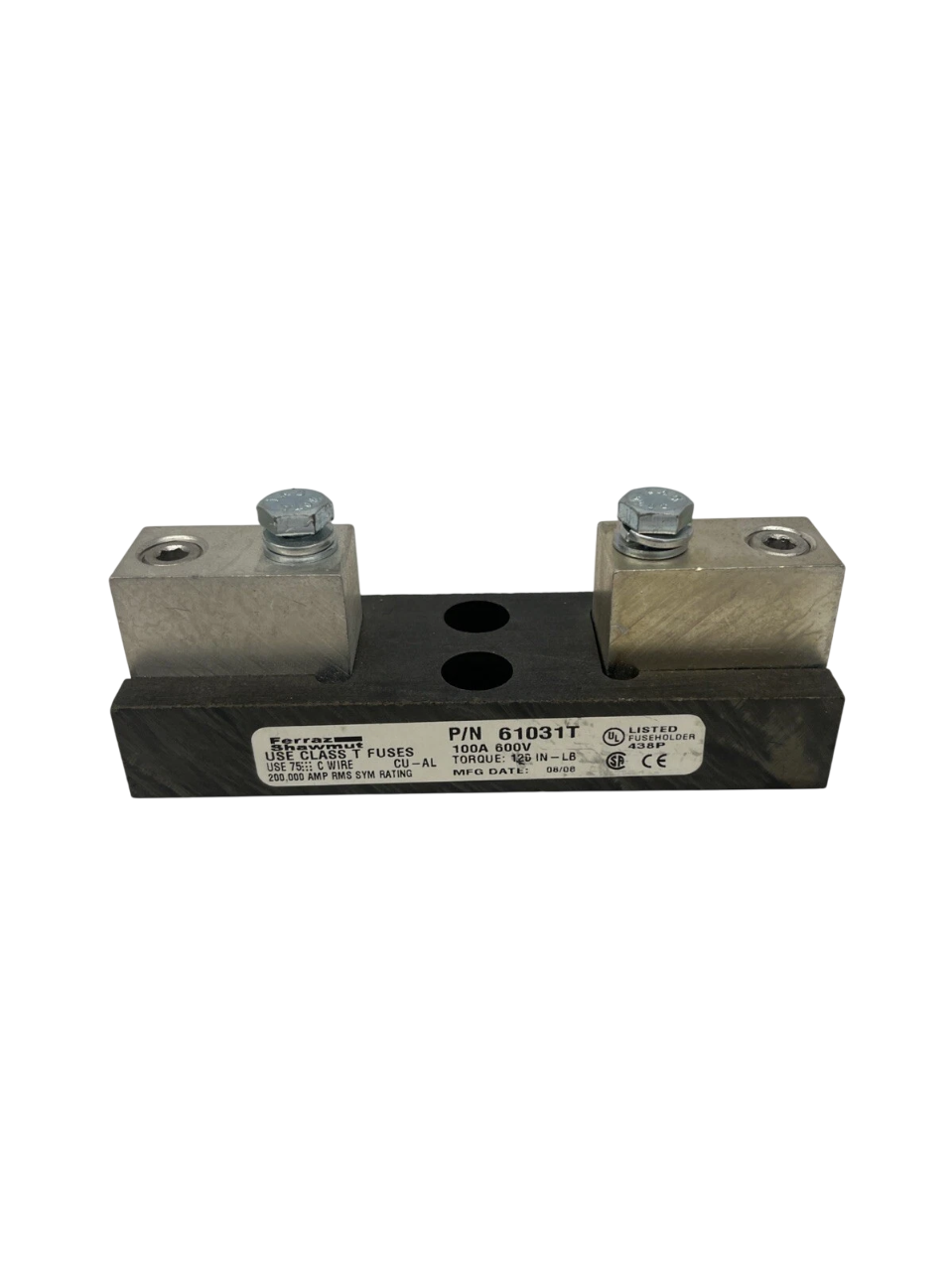

61031T is a Mersen Ferraz Shawmut Class T fuse block designed for 100 ampere, 600 volt AC/DC applications with a single pole configuration.This open style fuse block supports Class T fuses up to 600A, features box lug terminals suitable for 6 to 2/0 AWG aluminum or copper wire, and is constructed with phenolic material. It meets UL and CSA certifications and is rated for 600VAC/600VDC operation with a torque rating of 120 lb-in.
- Amperage: 100A
- Voltage: 600VAC/600VDC
- Poles: 1
- Fuse Class: T
- Mounting Type: Open Style
- Wire Size: 6 to 2/0 AWG Al/Cu
- Terminal Type: Box Lug
- Material: Phenolic
- Interrupt Rating: Supports Class T fuses up to 600A
- Certifications: UL, CSA
- Torque Rating: 120 lb-in
Specifications
- Part Number: 61031T
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Fuse Block
- Family : Amp-Trap
- Type : A6T
- Voltage : 600
- Amperage : 100
- Mounting : Box
Product Data
- UPC : 782001675615
- GTIN : 782001675615
- Country of Origin : Mexico
- Dimensions : 1-1/2 in x 4.78 in x 1.95 in
- Weight : 0.53 lb
- Certification : CSA Certified, UL Listed
