Product Info
- Manufacturer:Mersen
- Sub-Category:Fuse Block
Description
60328R

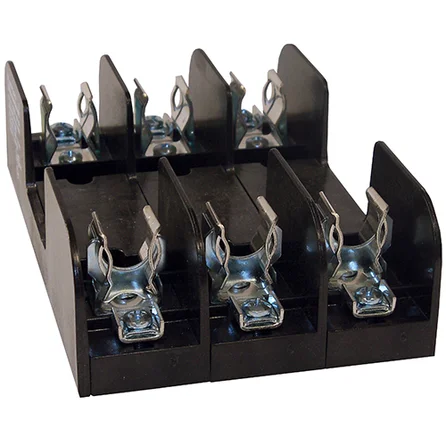

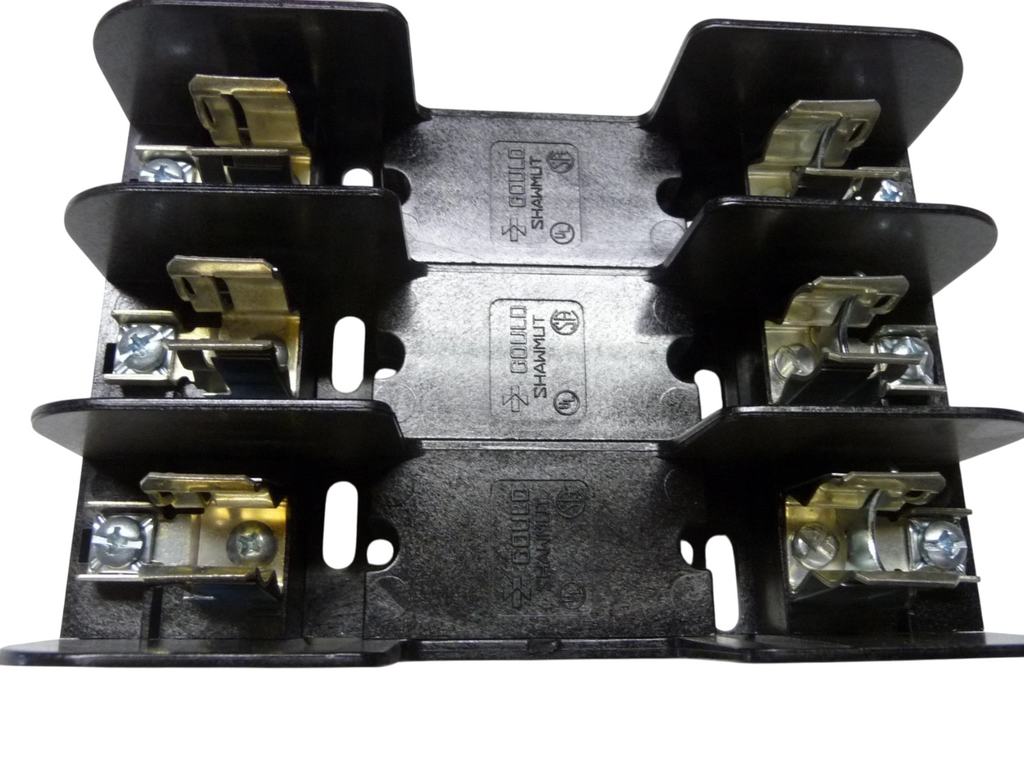

60328R is a 30 Amp, 600 Volt, 3-Pole Class R fuse block by Mersen Ferraz Shawmut designed with a pressure plate and reinforced clip.This fuse block accommodates Class H, K, and R power fuses rated for 250V and 600V, featuring a spring reinforced pressure plate clip for secure fuse retention. It supports copper or aluminum wire sizes #10-14 and is constructed with molded glass-filled polycarbonate insulators providing dielectric strength over 2500V. The 60328R is suitable for multipole segmented blocks and offers reliable performance in industrial and commercial electrical applications.
- Amperage: 30A
- Voltage: 600VAC / 600VDC
- Poles: 3
- Fuse Class: R (also compatible with H and K)
- Mounting Type: Pressure Plate
- Fuse Clip: Spring Reinforced, Tin-Plated Copper
- Wire Size: #10-14 Copper or Aluminum
- Insulation Material: Molded Glass-Filled Polycarbonate (GFPC)
- Dielectric Strength: >2500V
- Interrupt Rating: Per Class R Fuse Standards
- Certifications: UL Listed (implied by Class R compatibility)
Specifications
- Part Number: 60328R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Fuse Block
- Type : 603
- Amperage : 30
Product Data
- UPC : 78200175933
- GTIN : 00782001759339
- Country of Origin : Mexico
- Dimensions : 4.56 in x 4 in x 2.12 in
- Weight : 0.85 lb
- Certification : CSA Certified, UL Listed
