Product Info
- Manufacturer:Mersen
- Sub-Category:Fuse Block
Description
60311

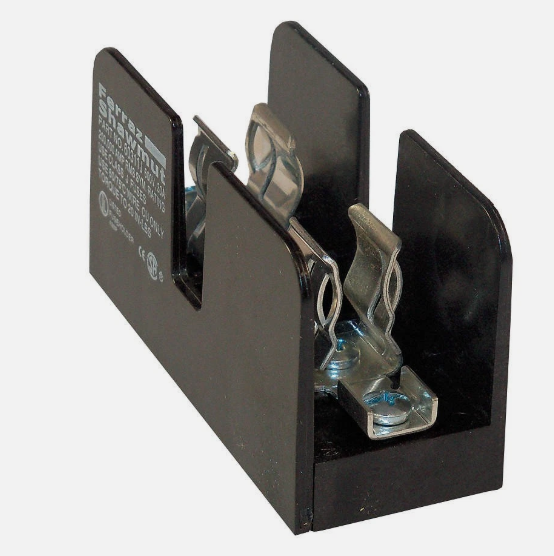

60311 is a 30 Amp, 600 Volt, 1 Pole Class H/K fuse holder from Mersen designed for reliable fuse protection.60311 features a clip-in fuse installation method, spring reinforced construction, and screw type mounting compatible with copper wire sizes #10-14. It meets UL 4248 requirements, is UL listed and recognized (guide IZLT, file E52283), and CSA certified (class 6225, file 32169). This fuse holder supports Class H and K fuses and has a torque rating of 2.26 N m.
- Key Specifications
- Amperage: 30 Amps
- Voltage: 600 Volts AC
- Number of Poles: 1 Pole
- Fuse Type/Class: Class H/K
- Mounting Type: Screw Type (Cu #10-14)
- Fuse Installation Method: Clip-in
- Interrupt Rating: Compatible with UL Class H and K fuses
- Certifications: UL Listed, UL Recognized, CSA Certified
- Torque Rating: 2.26 N m
- Spring Reinforced Construction
Specifications
- Part Number: 60311
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Fuse Block
- Voltage : 600
- Amperage : 30
Product Data
- UPC : 754473603113
- GTIN : 00785901410010
- Country of Origin : United States
- Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight : 0.04
- Certification : Globally Harmonized System (GHS);NFPA 704;OSHA 1910.1200
