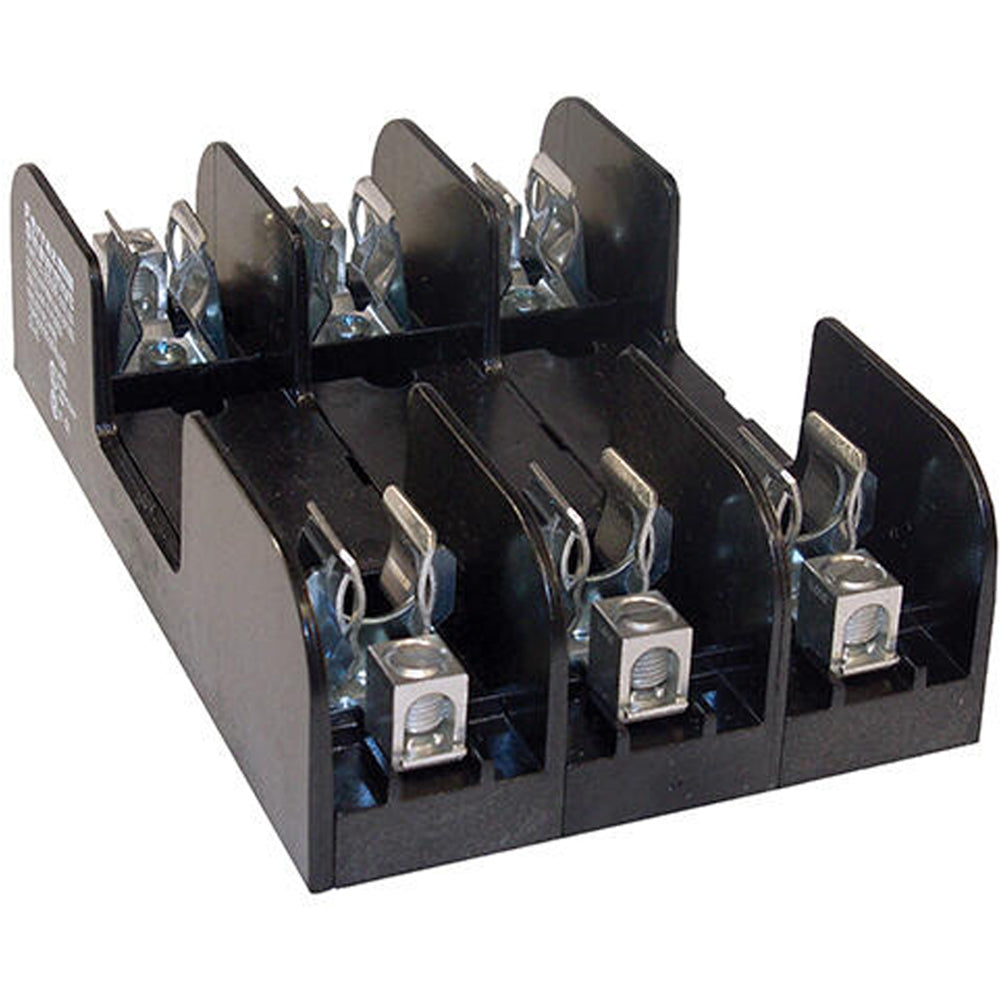

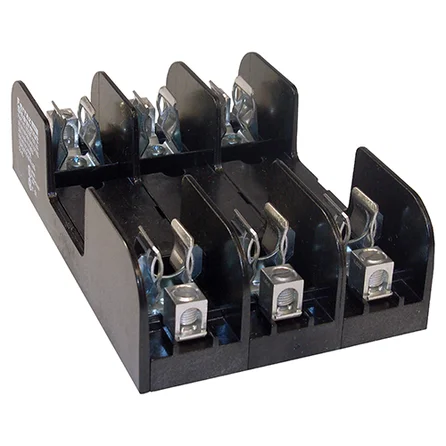

60308R - Eaton Class R Fuse Block 30A 600VAC 600VDC 3-Pole Reinforced Clip Direct Screw Mount

60308R

60308R is a Class R fuse block from Eaton designed for 30 ampere circuits with a 600VAC/600VDC voltage rating and 3 poles. It features a reinforced clip and direct screw mounting for secure installation.This fuse block supports both AC and DC applications at 50/60 Hz frequency and is constructed with glass-filled polycarbonate for durability. It has a short circuit current rating (SCCR) of 200 kA and is ROHS compliant. The clip-in fuse installation method ensures reliable fuse retention, and the block is suitable for use with Class R fuses up to 30 amps. Its compact dimensions and robust construction make it ideal for industrial and commercial power distribution.

Key Specifications
• Amperage Rating: 30 A
• Voltage Rating: 600 VAC / 600 VDC
• Number of Poles: 3
• Fuse Class: Class R
• Mounting Type: Direct Screw Mount
• Fuse Installation: Clip-in with reinforced clip
• Short Circuit Current Rating (SCCR): 200 kA
• Body Material: Glass Filled Polycarbonate
• Frequency: 50/60 Hz
• ROHS Compliant: Yes
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: 60308R
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Fuse
• Item Subcategory : Fuse Block
• Type : 603
• Voltage : 600
• Amperage : 30
• Mounting : Box



Product Data

• UPC : 782001759599
• GTIN : 00782001759599
• Country of Origin : Mexico
• Dimensions : 4.56 in x 2 in x 7 in
• Weight : 10
• Certification : CSA Certified, UL Listed
