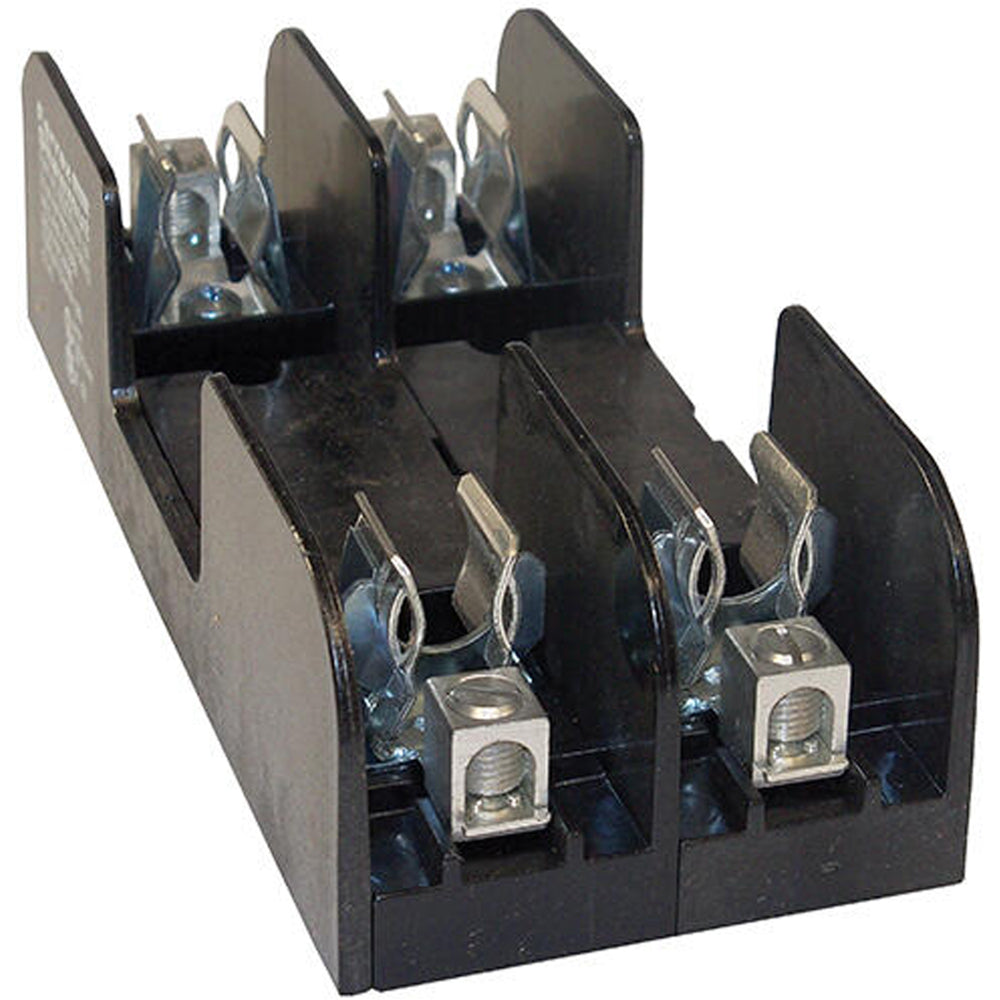

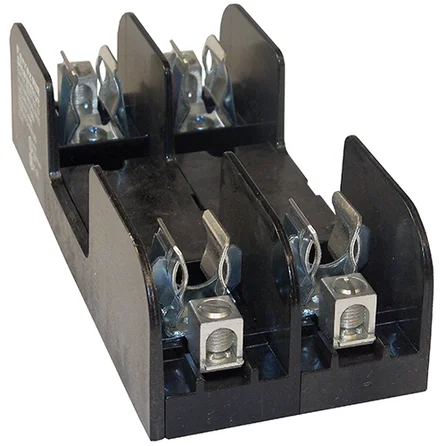

60307R - Ferraz Shawmut Mersen 30A 600V 2-Pole Class R Fuse Block with Reinforced Clip

60307R

60307R is a Class R fuse block designed for 30 amp, 600 volt AC/DC applications with 2 poles and a reinforced clip for secure fuse mounting.This fuse block by Ferraz Shawmut, now Mersen, accommodates Class H, K, and R fuses rated for 250 and 600 volts. It supports wire sizes from 14 to 2 AWG for both aluminum and copper conductors. The block is constructed from molded glass-filled polycarbonate for durability and features box lugs for easy installation. It is UL 4248 and CSA Class 6225 certified, ensuring compliance with safety standards.

Key Specifications
• Amperage: 30 Amps
• Voltage: 600 VAC/VDC
• Poles: 2
• Fuse Class: R (also compatible with H and K)
• Mounting Type: Box lug
• Wire Size: 14 to 2 AWG (Al/Cu)
• Material: Molded glass-filled polycarbonate
• Interrupt Rating: Suitable for Class R fuses
• Certifications: UL 4248, CSA Class 6225
• Reinforced clip for secure fuse retention
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: 60307R
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Fuse
• Item Subcategory : Fuse Block
• Type : 603
• Voltage : 600
• Amperage : 30
• Mounting : Box



Product Data

• UPC : 78200175960
• GTIN : 00782001759605
• Country of Origin : Mexico
• Dimensions : 3.09 in x 2 in x 7 in
• Weight : 0.6
• Certification : CSA Certified, UL Listed
