Product Info
- Manufacturer:Littelfuse
- Sub-Category:Medium Voltage Fuse
Description
60032R3C5.5

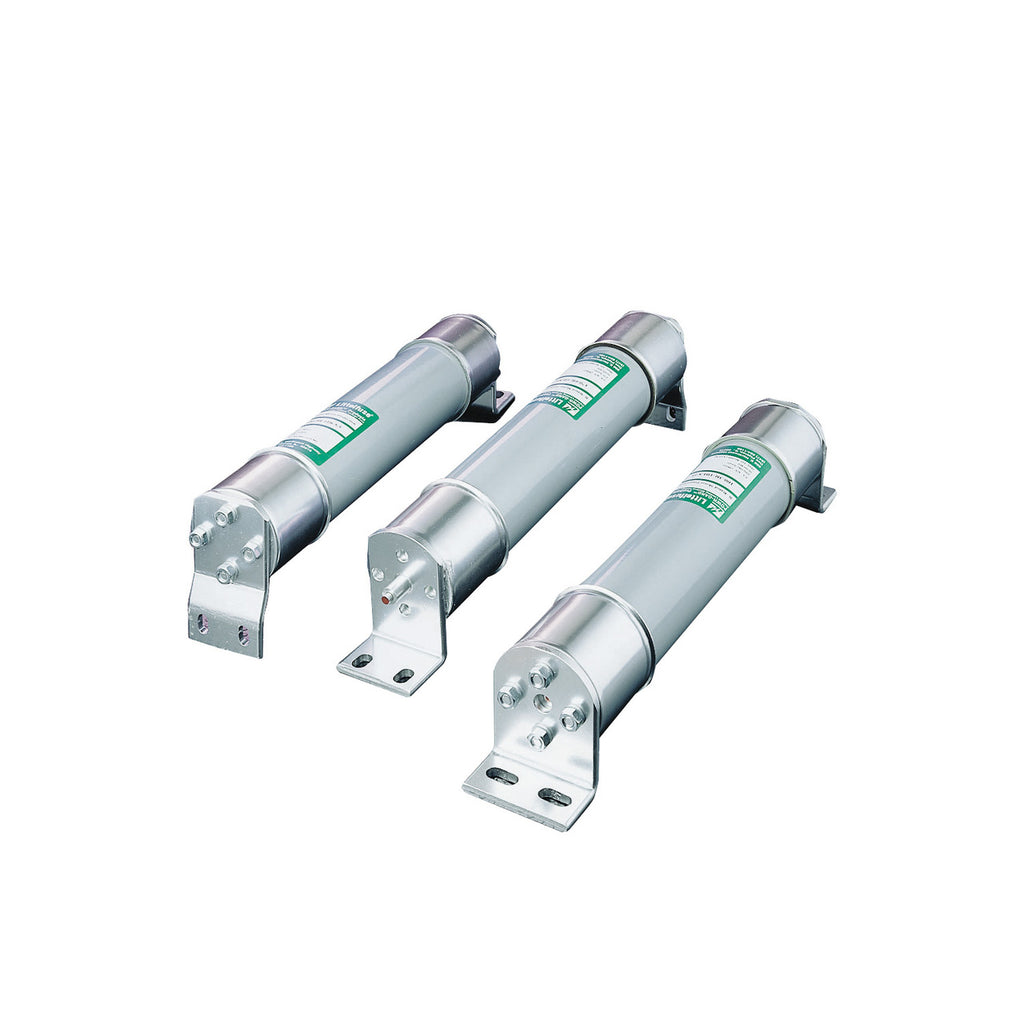

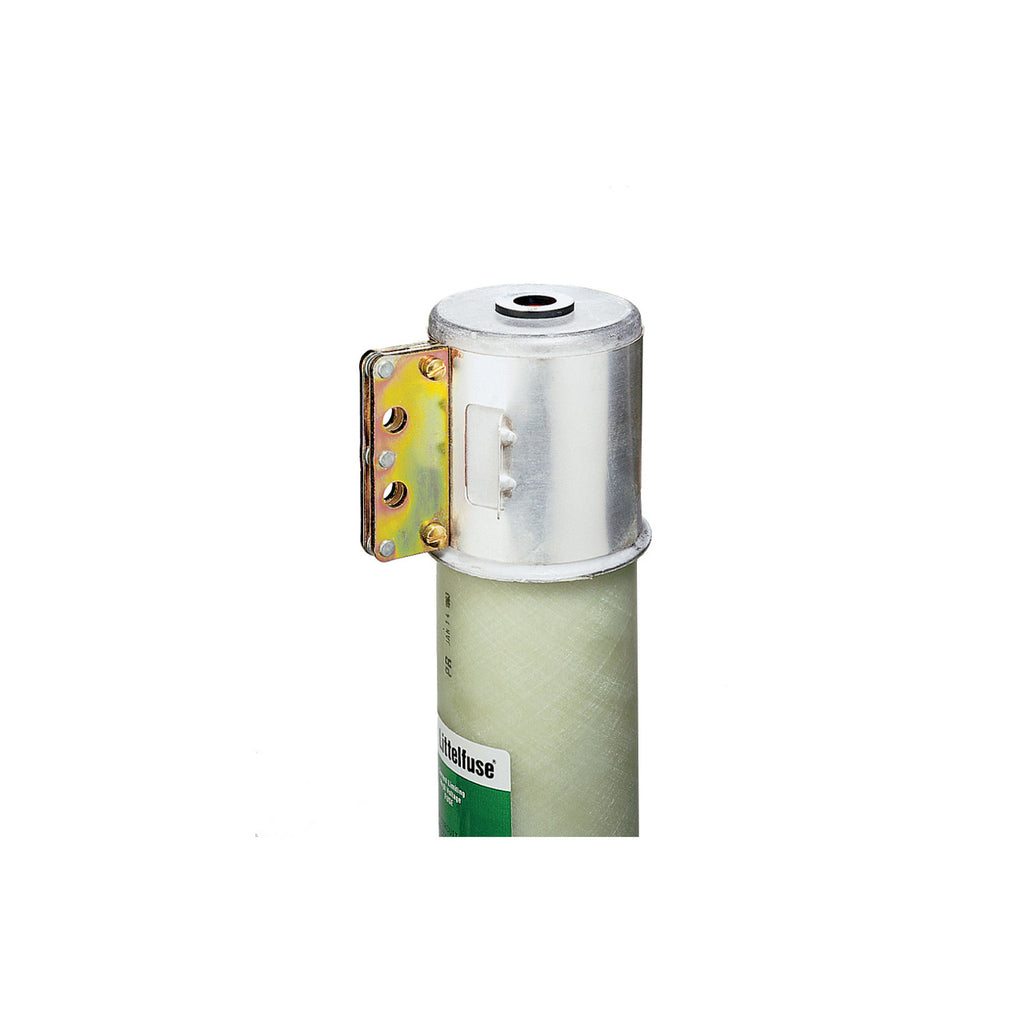

60032R3C5.5 is a Littelfuse R-Rated medium voltage fuse designed for reliable circuit protection in high voltage applications.60032R3C5.5 features a 600 amp continuous current rating and a maximum AC voltage rating of 5.5 kV. It is part of the R-Rated series of medium voltage fuses, offering an interrupting rating of 80 kA at 5.5 kV for high fault current protection. The fuse uses a cartridge (non-standard) termination style and is suitable for ferrule mounting.
- Amperage: 600 A
- Voltage Rating: 5.5 kV AC
- Interrupt Rating: 80 kA at 5.5 kV AC
- Fuse Type: R-Rated Medium Voltage
- Termination Style: Cartridge (Non-Standard)
- Mounting Type: Ferrule Mounted
- Series/Frame: R-Rated
- Fuse Class: Medium Voltage
Specifications
- Part Number: 60032R3C5.5
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : R Rated
- Type : R Rated
- Voltage : 5500
- Amperage : 600
- AIC rating : [email protected]
- Diameter : 3
- Class Rating : R
- Barrels : 3
- Clip Center : 12
Product Data
- UPC : 079458041798
- GTIN : 00079458041798
- Weight : 31
