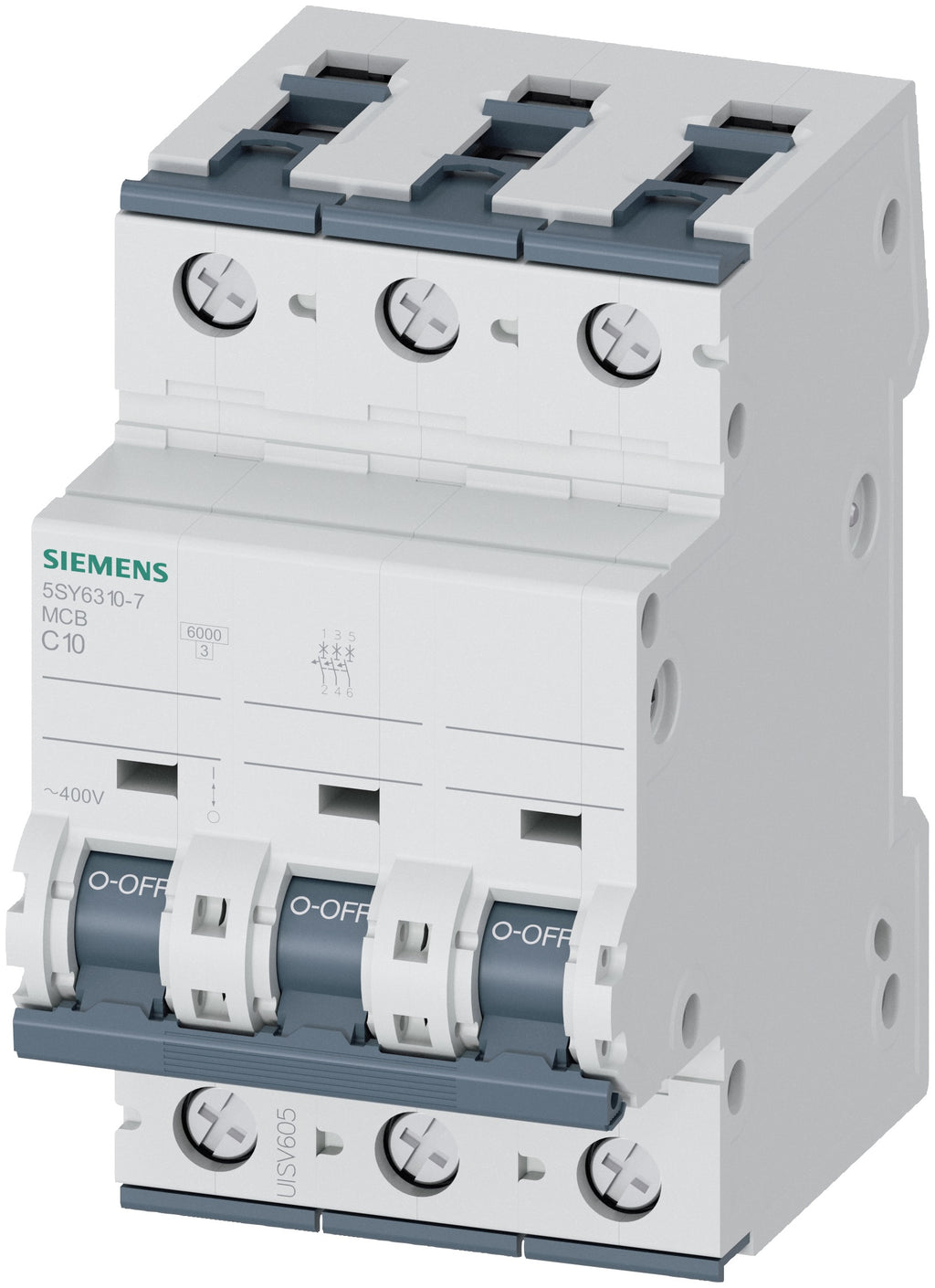

5SY63107 - Siemens 5SY6 10A 3-Pole 400V Circuit Breaker C-Curve 6kA

5SY63107

5SY63107 is a Siemens 5SY6 series miniature circuit breaker designed for industrial applications requiring reliable overcurrent and short-circuit protection. This 3-pole supplementary protector operates at 400V AC with a 10A rated current and features a C-curve trip characteristic suitable for general-purpose circuits with moderate inrush currents. The breaker incorporates thermal-magnetic trip technology for fast response to both overload and fault conditions, with a 6kA breaking capacity at 400V. It mounts directly on DIN rail using a quick assembly system and connects via screw clamp terminals for secure wire attachment. The unit meets international safety standards including EN60898 and UL 1077 certification, ensuring compliance with both European and North American requirements. Constructed from thermoplastic materials, the breaker measures 54mm width by 90mm height with a 70mm installation depth, making it compact for space-constrained panel installations. The toggle actuator provides manual on-off control and trip indication.

• Rated Current: 10A
• Voltage Rating: 400V AC
• Number of Poles: 3
• Series: 5SY6
• Trip Curve: C
• Breaking Capacity: 6kA at 400V
• Mounting: DIN Rail Surface Mount
• Terminal Connection: Screw Clamp
• Trip Type: Thermal Magnetic
• Standards: EN60898, UL 1077
• Dimensions: 54mm W x 90mm H x 70mm D
• Material: Thermoplastic

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 5SY63107
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : 5SY Series
• Voltage : 400
• AIC rating : 6kA@400V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 75455490228
• GTIN : 00754554902289
• Country of Origin : Germany
• Dimensions : 3.701 x 2.283 x 3.307 inch
• Weight : 0.999
