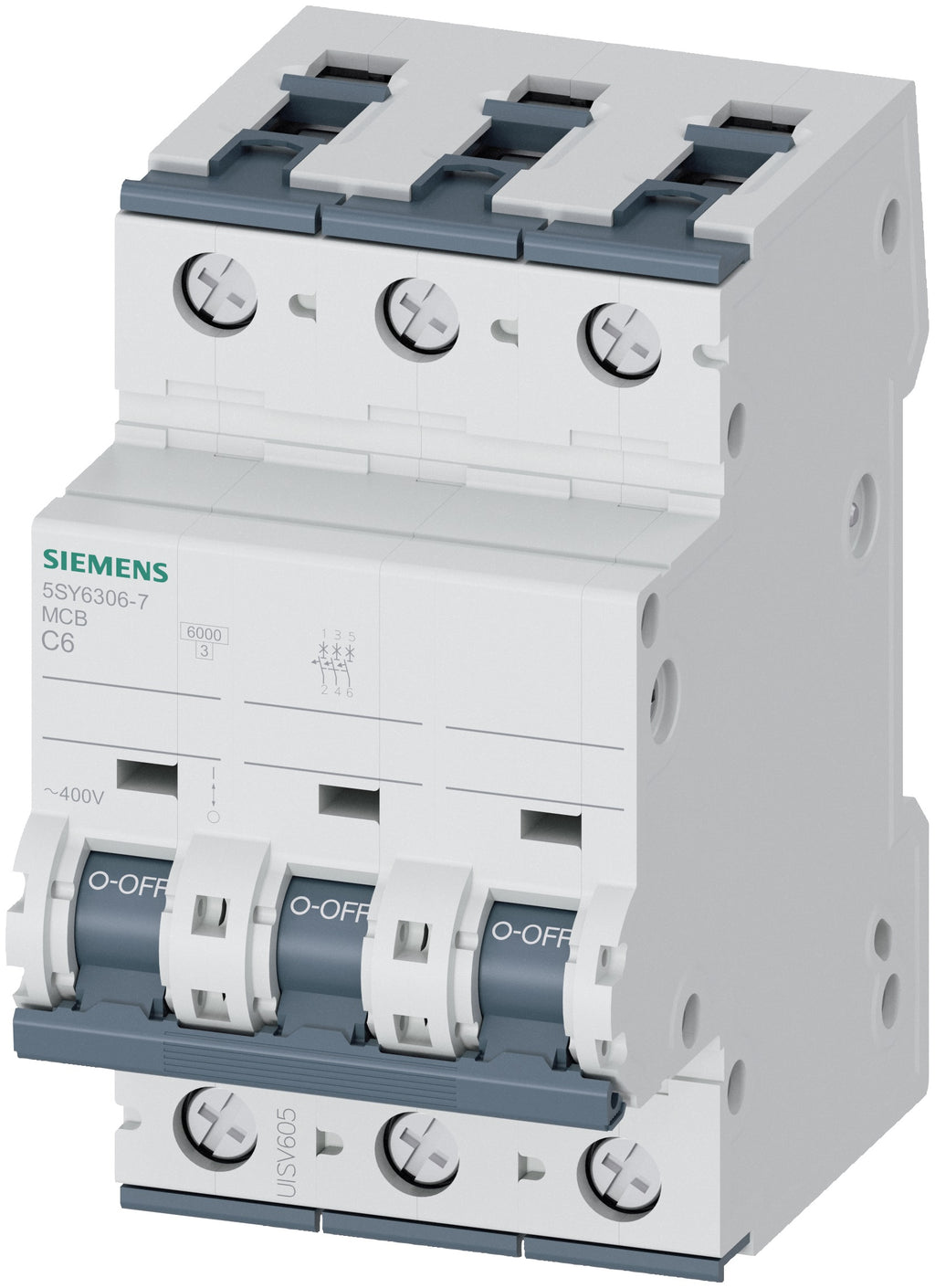

5SY63067 - Siemens 6A 3-Pole Miniature Circuit Breaker 400V 6kA C-Trip

5SY63067

5SY63067 is a Siemens 3-pole miniature circuit breaker rated for 6 amps and 400 volts with a 6kA interrupting capacity and C trip characteristic.This Siemens SENTRON 5SY6 series circuit breaker features a 3-pole design with a C-class tripping curve, suitable for AC voltages up to 400 V and DC up to 72 V. It has an interrupt rating of 6kA at 400 V, mechanical service life of 10,000 cycles, and an IP20 protection rating. The breaker mounts on DIN rails with combined top and bottom terminals allowing flexible power supply connections. It complies with overvoltage category III and pollution degree 3 standards.

Key Specifications
• Amperage: 6 A
• Voltage Rating: 400 V AC, 72 V DC max
• Number of Poles: 3
• Interrupt Rating: 6 kA at 400 V
• Trip Unit: C curve magnetic trip
• Mounting Type: DIN rail
• Mechanical Service Life: 10,000 cycles
• Protection Class: IP20
• Overvoltage Category: III
• Degree of Pollution: 3
• Terminal Type: Combined top and bottom
• Series/Frame: 5SY6
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: 5SY63067
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : 5SY Series
• Voltage : 400
• Amperage : 6
• Phase : 3
• Poles : 3
• AIC rating : 6kA@400V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic



Product Data

• Country of Origin : Germany
• Dimensions : 3.701 x 2.283 x 3.307 inch
• Weight : 0.999
• Certification : EN60898, UL 1077 CSA C22.2 No. 235, UL File No. E 116385
