Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
5SY62327

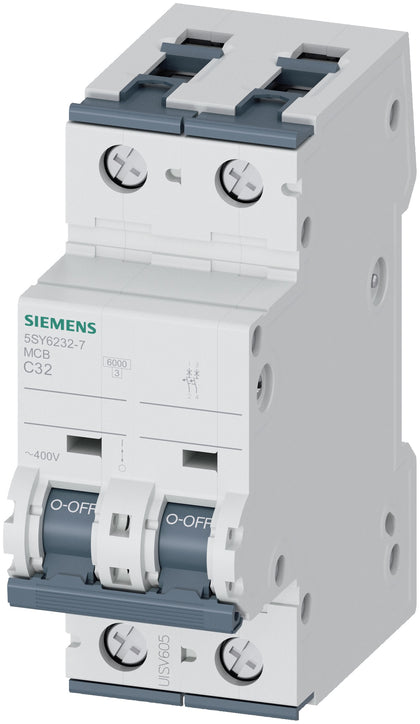

5SY62327 is a Siemens SENTRON miniature circuit breaker designed for reliable overcurrent and short-circuit protection in industrial and commercial applications. This 2-pole device features a C-curve trip characteristic and is rated for 32 amperes at 400V AC with a 6kA breaking capacity per EN 60898 standards. The compact design measures 36mm width by 90mm height with a 70mm installation depth, making it ideal for space-constrained control panels and distribution boards. Key Specifications
- Part Number: 5SY62327
- Manufacturer: Siemens
- Product Line: SENTRON
- Amperage Rating: 32 A
- Voltage Rating: 400V AC
- Number of Poles: 2
- Trip Curve: C-Curve
- Breaking Capacity: 6 kA (EN 60898)
- Frequency: 50/60 Hz
- Protection Class: IP20 with connected conductors
- Conductor Cross-Section: 0.75 mm² to 35 mm² (solid)
- Dimensions: 36mm W x 90mm H x 76mm D
Specifications
- Part Number: 5SY62327
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : 5SY Series
- Voltage : 400
- AIC rating : 6kA@400V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 66264378699
- GTIN : 00662643786996
- Country of Origin : Germany
- Dimensions : 3.622 x 1.575 x 3.307 inch
- Weight : 0.681
