Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
5SY62047

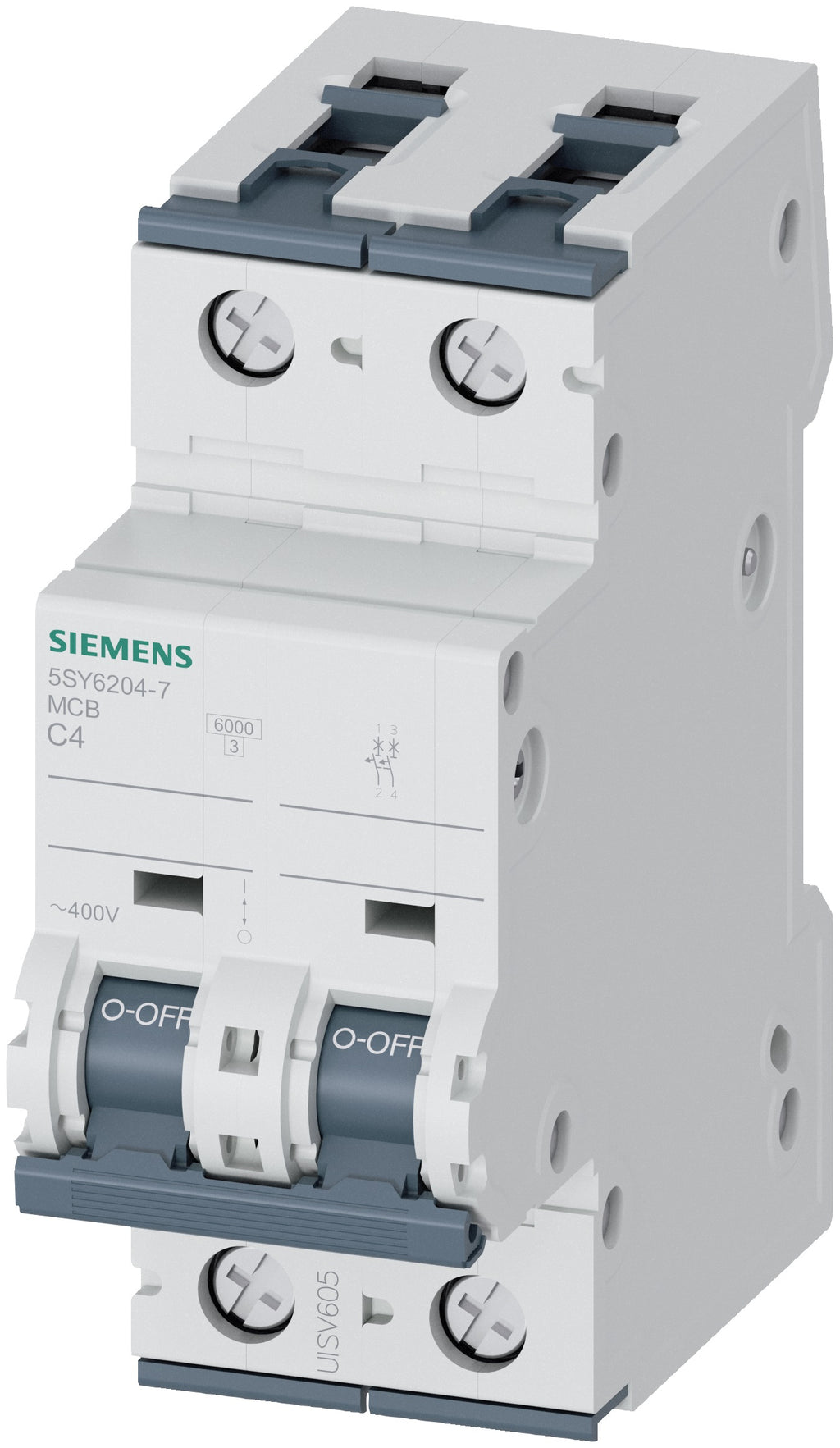

5SY62047 is a Siemens SENTRON miniature circuit breaker designed for supplementary protection in industrial and commercial applications. This 2-pole device provides reliable overcurrent protection with a C-curve tripping characteristic and rated for 400V AC operation at 50/60 Hz. The breaker features a 6 kA breaking capacity per EN 60898 and supports conductor cross-sections from 0.75 mm² to 35 mm² with screw-type terminals. Mechanical service life is rated at 20,000 switching cycles with IP20 protection class and energy limiting class 3 design.
- Part Number: 5SY62047
- Manufacturer: Siemens
- Series: 5SY6
- Number of Poles: 2
- Rated Current: 4 A
- Rated Voltage: 400V AC
- Frequency: 50/60 Hz
- Trip Characteristic: C-Curve
- Breaking Capacity: 6 kA (EN 60898)
- Height: 90 mm
- Width: 36 mm
- Depth: 70 mm
Specifications
- Part Number: 5SY62047
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : 5SY Series
- Voltage : 400
- AIC rating : 6kA@400V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 75455485000
- GTIN : 00754554850009
- Country of Origin : Germany
- Dimensions : 3.622 x 1.575 x 3.307 inch
- Weight : 0.675
