Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
5SY6202-7

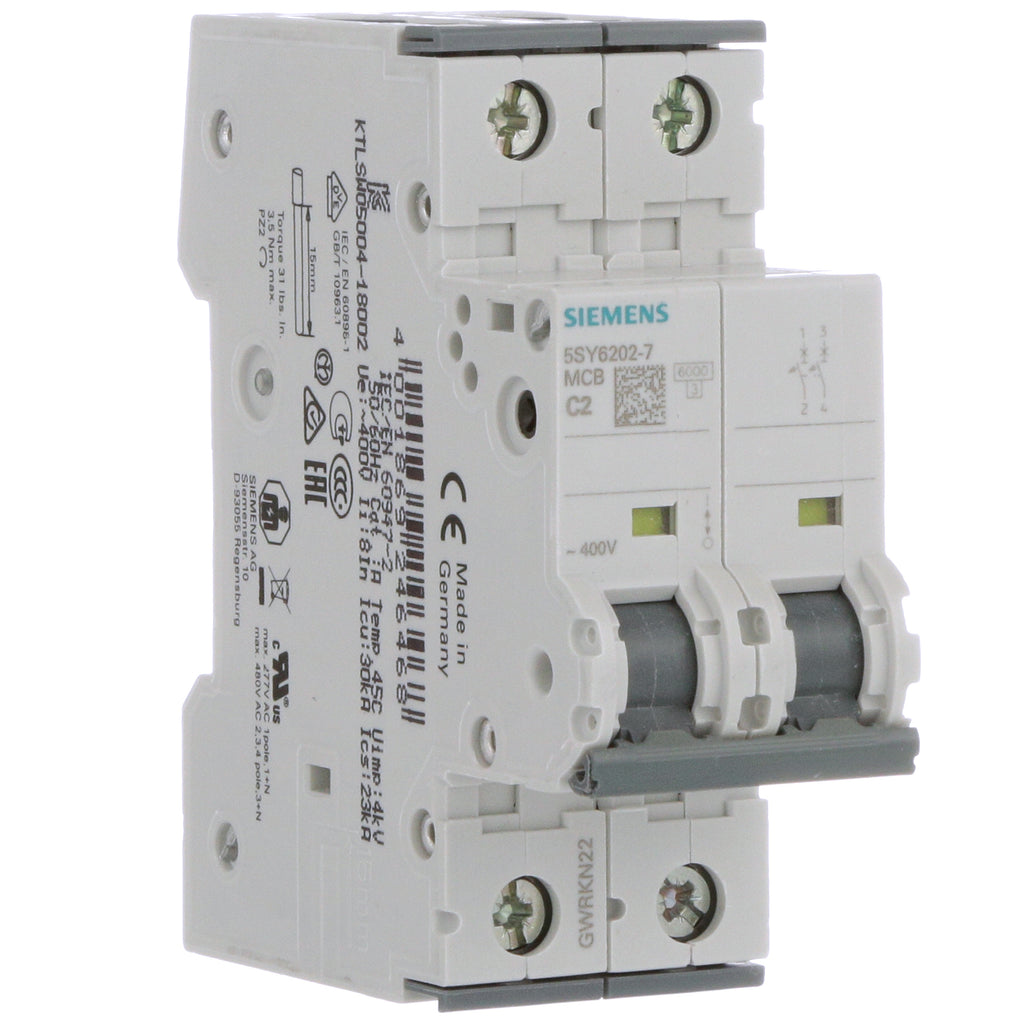

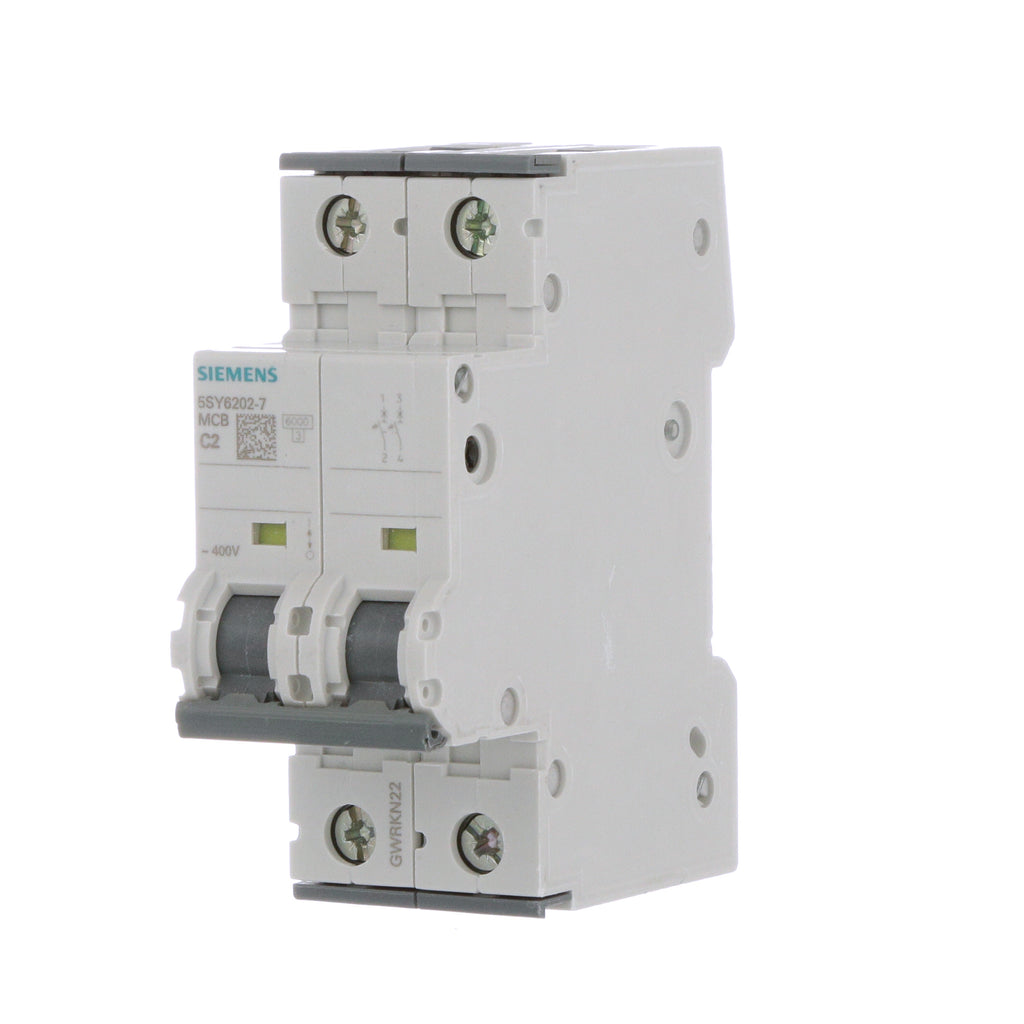

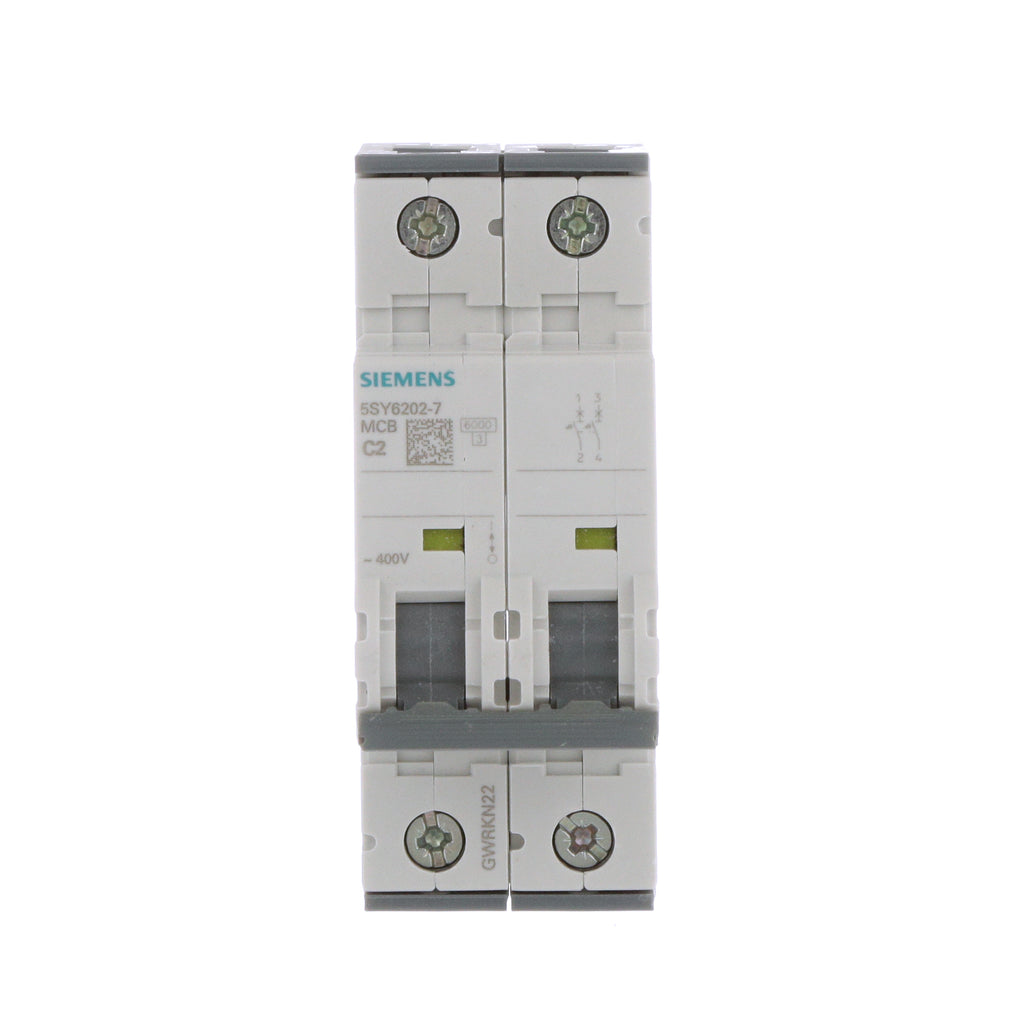

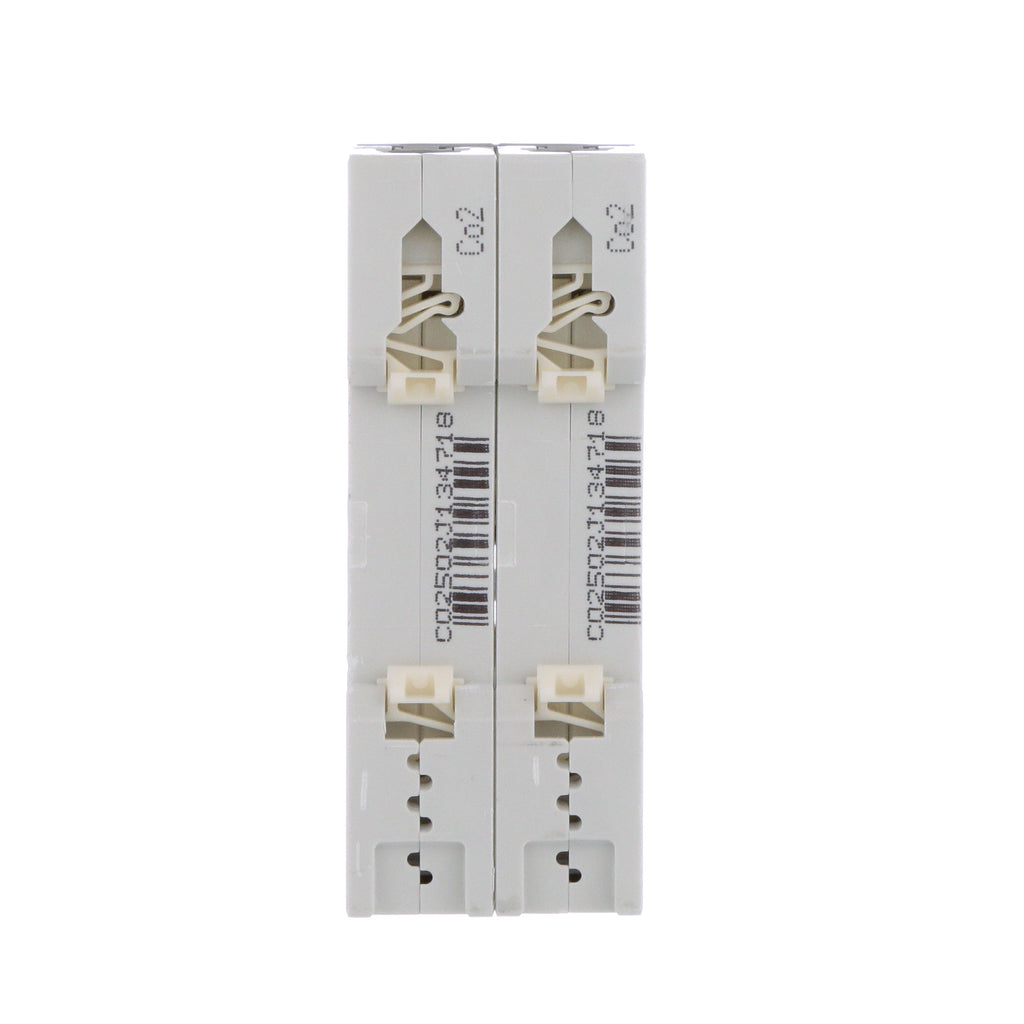

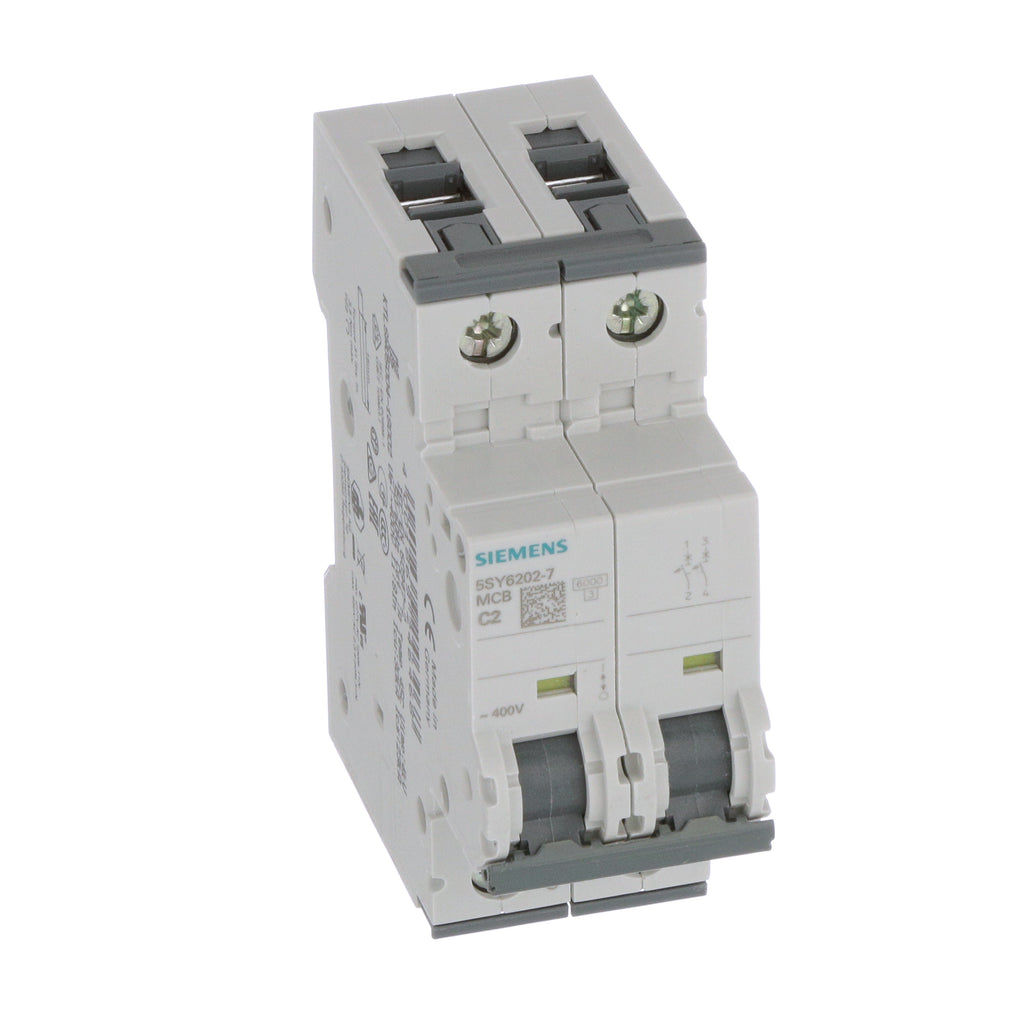

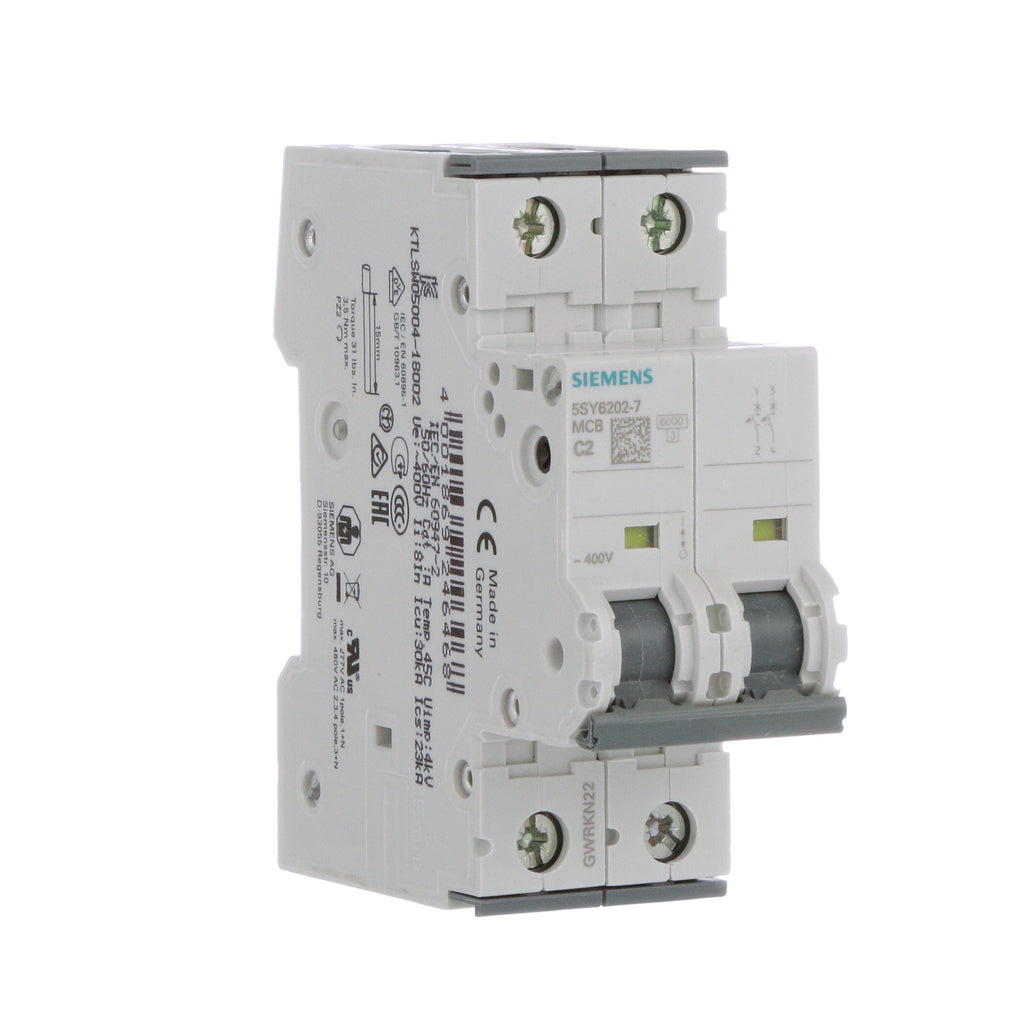

5SY6202-7 is a Siemens 2 ampere, 2-pole miniature circuit breaker designed for reliable circuit protection.This Siemens Sentron 5SY6 series breaker features a thermal magnetic trip unit with a C tripping characteristic, suitable for 400 V AC applications. It has a 6 kA interrupt rating per EN 60898 and 30 kA per IEC 60947-2, ensuring high short-circuit protection. The breaker mounts on DIN rails and includes an IP20 protection class with line/load side screw connections. It supports wire sizes from 14 to 4 AWG and operates within a temperature range of -25 to 45 degrees Celsius.
- Amperage: 2 A
- Voltage Rating: 400 V AC
- Number of Poles: 2
- Interrupt Rating: 6 kA (EN 60898), 30 kA (IEC 60947-2)
- Trip Unit: Thermal Magnetic, Class C
- Mounting Type: DIN Rail
- Frame/Series: 5SY6
- Protection Class: IP20
- Wire Size: 14 to 4 AWG
- Operating Temperature: -25 to 45 °C
- Connection Type: Line/Load Side Screw
- Dimensions: 90 mm H x 36 mm W x 70 mm D
Specifications
- Part Number: 5SY6202-7
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron
- Voltage : 400
- Amperage : 2
- Poles : 2
- AIC rating : 6kA@400V
- Connection : Feed-Thru
Product Data
- UPC : 075455484999
- GTIN : 4001869246468
- Weight : 1.5 lb
