Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
5SY61067

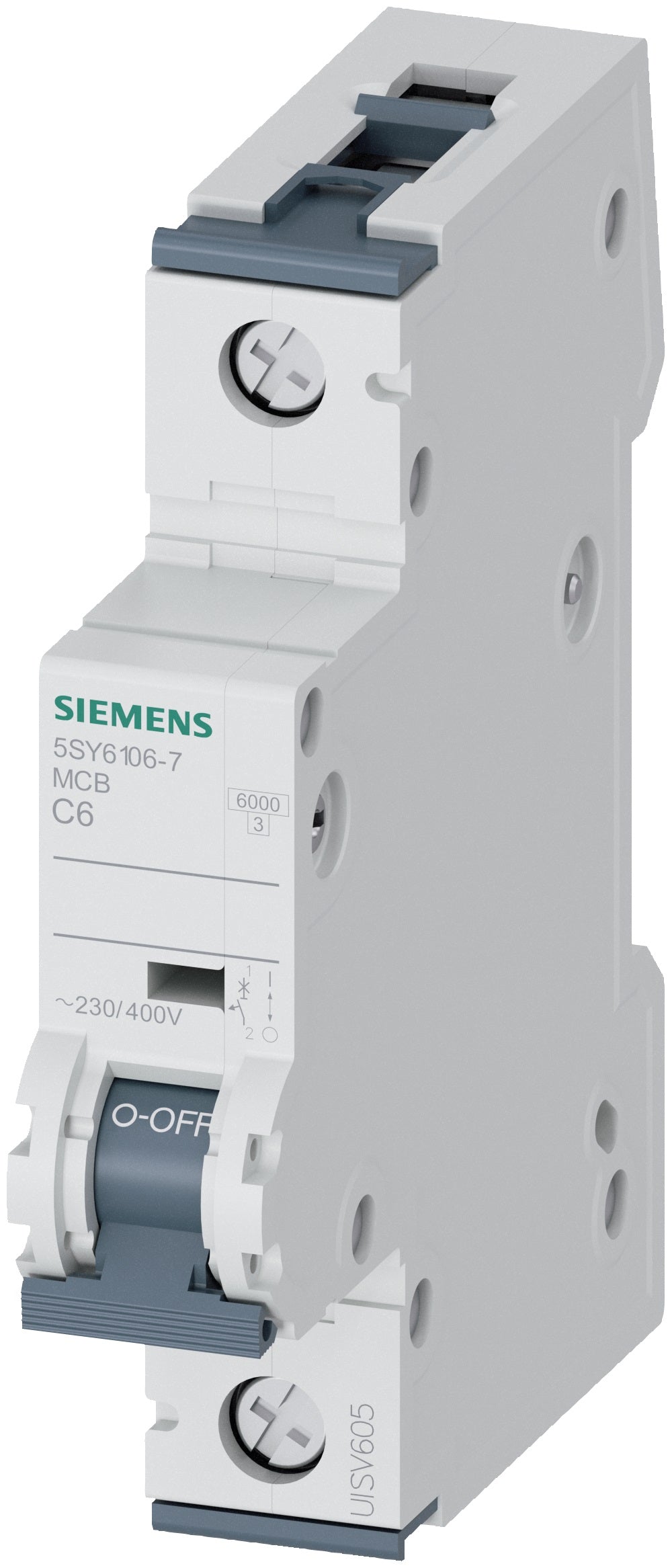

5SY61067 is a Siemens 1-pole miniature circuit breaker designed for 230/400V AC applications with a 6 ampere rating and C tripping characteristic.
This circuit breaker features a 6kA interrupt rating at AC voltage, suitable for protecting electrical circuits from overload and short circuits. It has a compact design with a 70 mm depth and a width of 18 mm, making it ideal for panel mounting. The device supports multi-phase operation and complies with relevant IEC and EN standards. It offers a long mechanical life of 10,000 cycles and includes screw-type terminals for conductor connections.
- Key Specifications
- Amperage: 6 A
- Voltage: 230/400 V AC
- Poles: 1
- Tripping Characteristic: C Curve
- Interrupt Rating: 6 kA (EN 60898), 15 kA DC (IEC 60947-2)
- Mounting Type: Panel Mount
- Depth: 70 mm
- Width: 18 mm
- Mechanical Life: 10,000 cycles
- Connection Type: Screw terminals
- Protection Class: IP20 with connected conductors
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 5SY61067
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : 5SY Series
- Voltage : 400
- AIC rating : 6kA@400V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 75455484995
- GTIN : 00754554849959
- Country of Origin : Germany
- Dimensions : 3.661 x 0.827 x 3.268 inch
- Weight : 0.331
