5SY4332-7 - Siemens 32A 400V 3-Pole Miniature Circuit Breaker C Curve 10kA Interrupt Rating

5SY4332-7

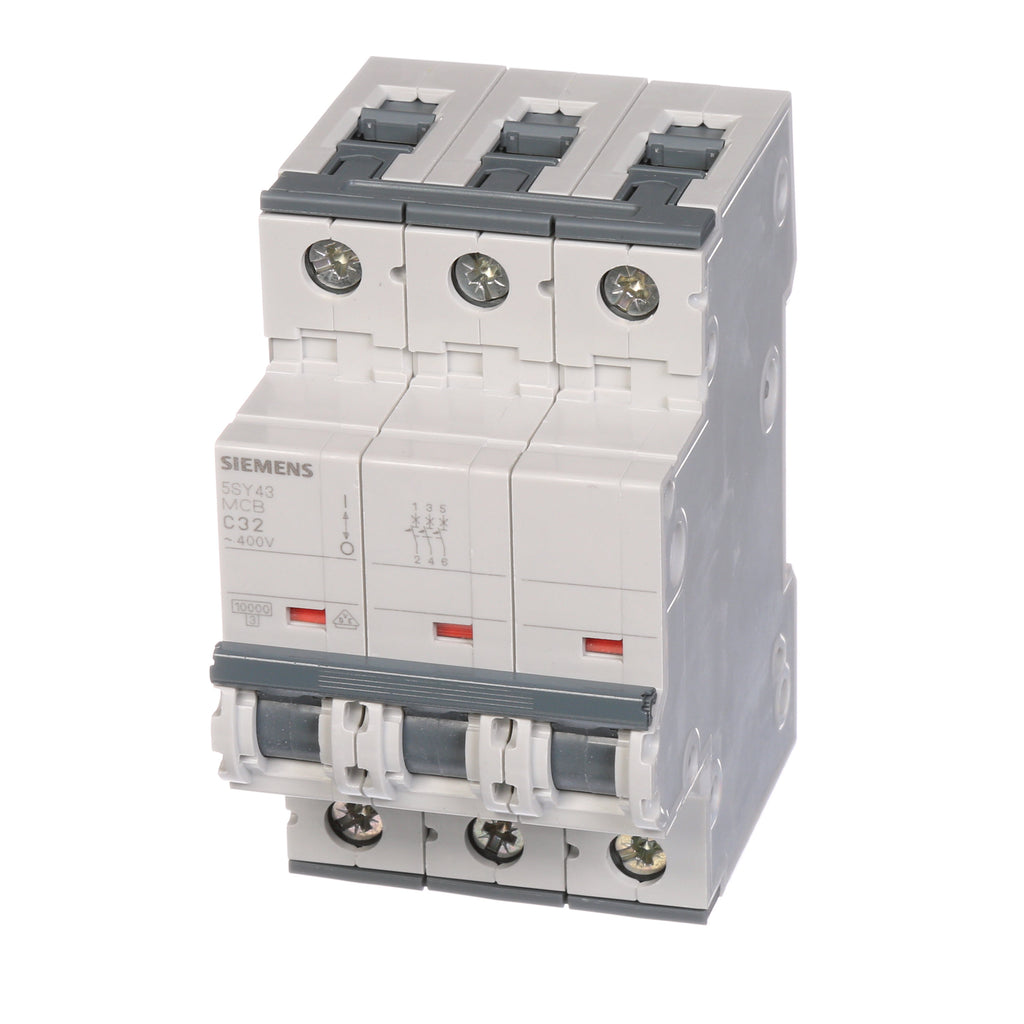

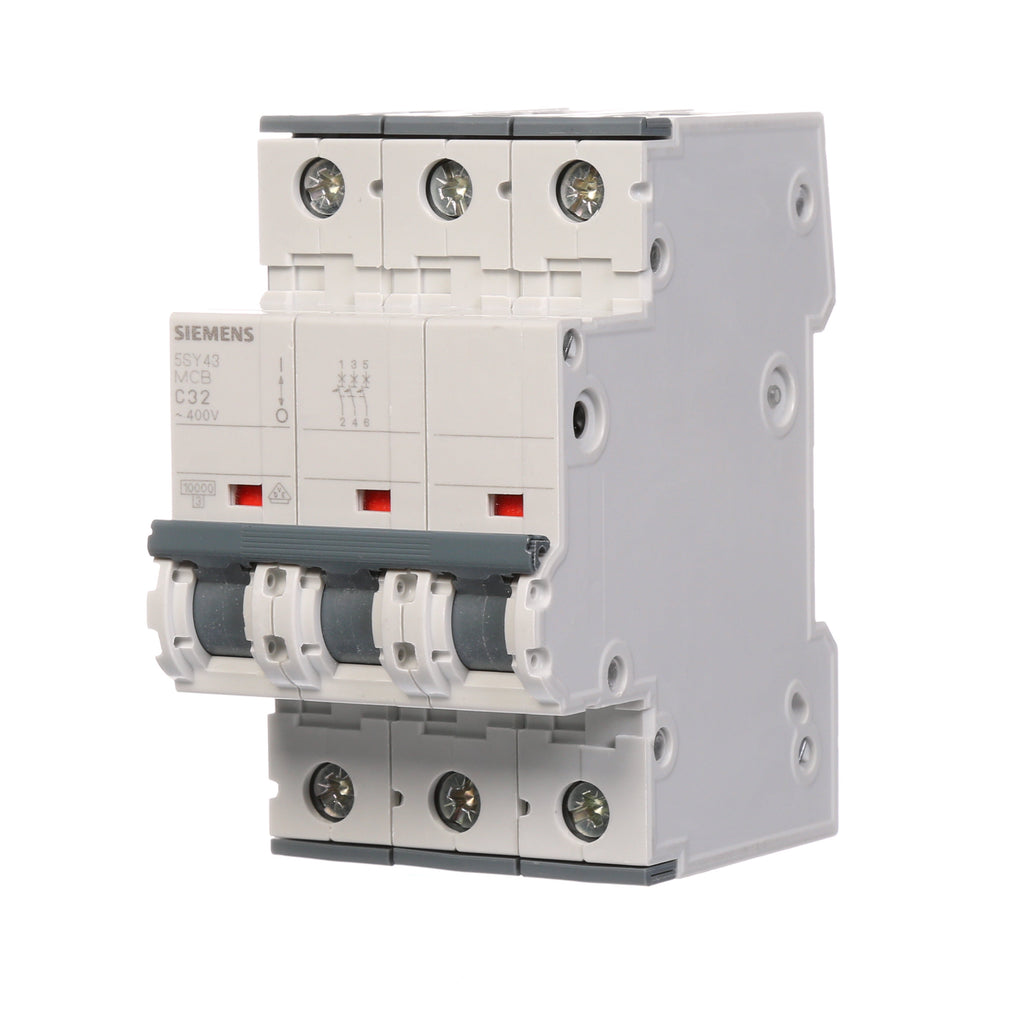

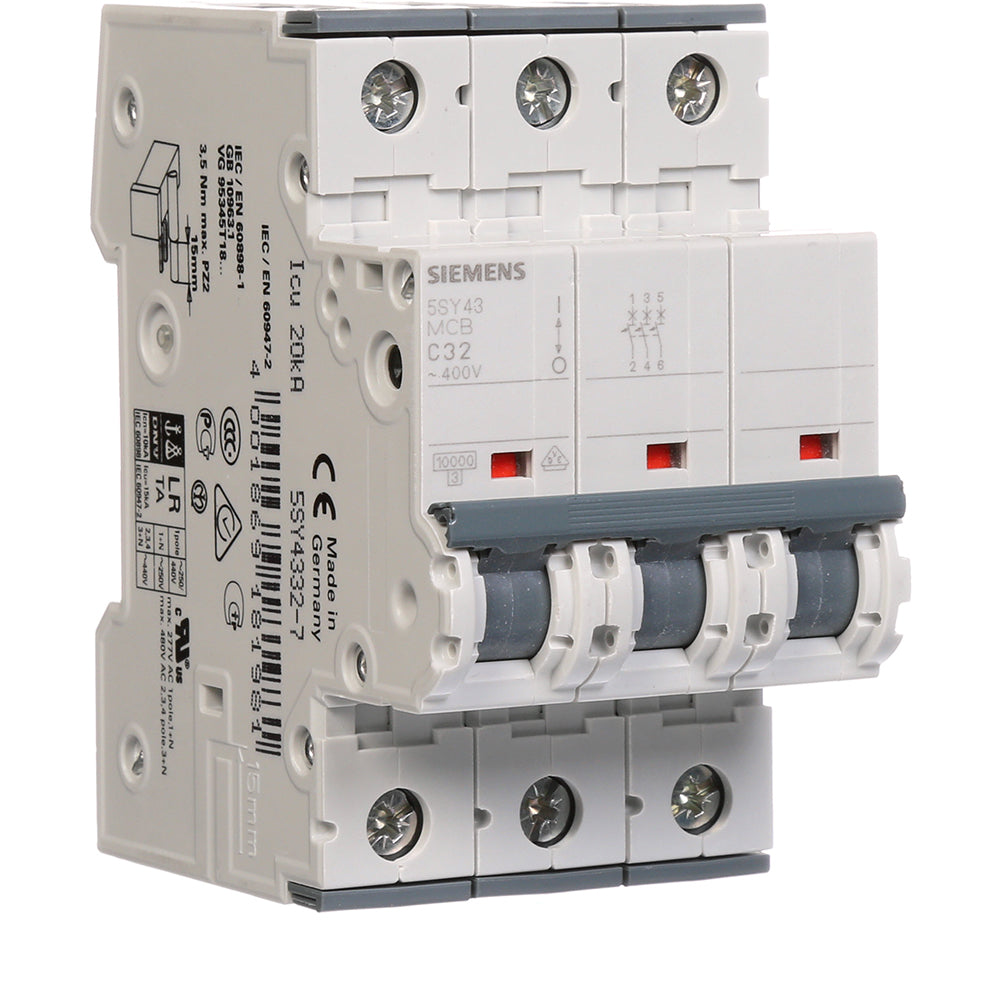

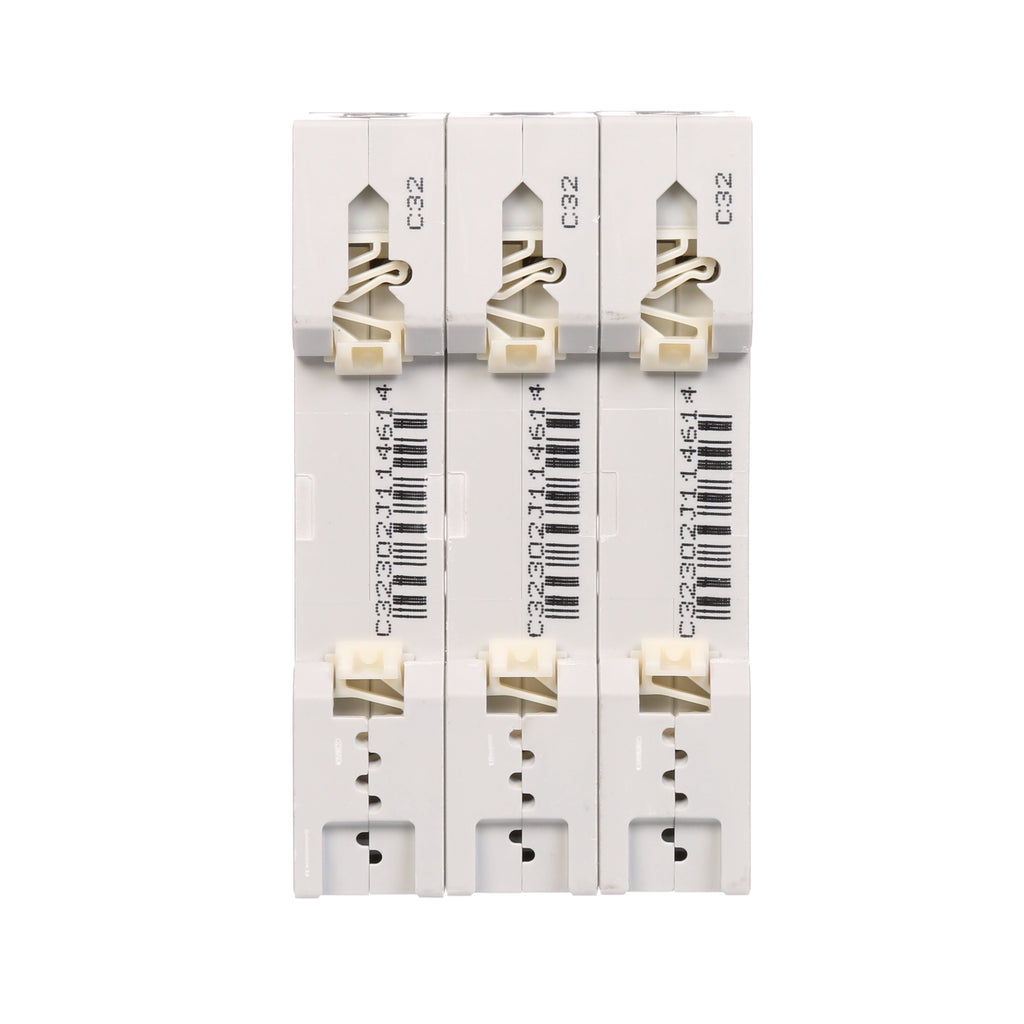

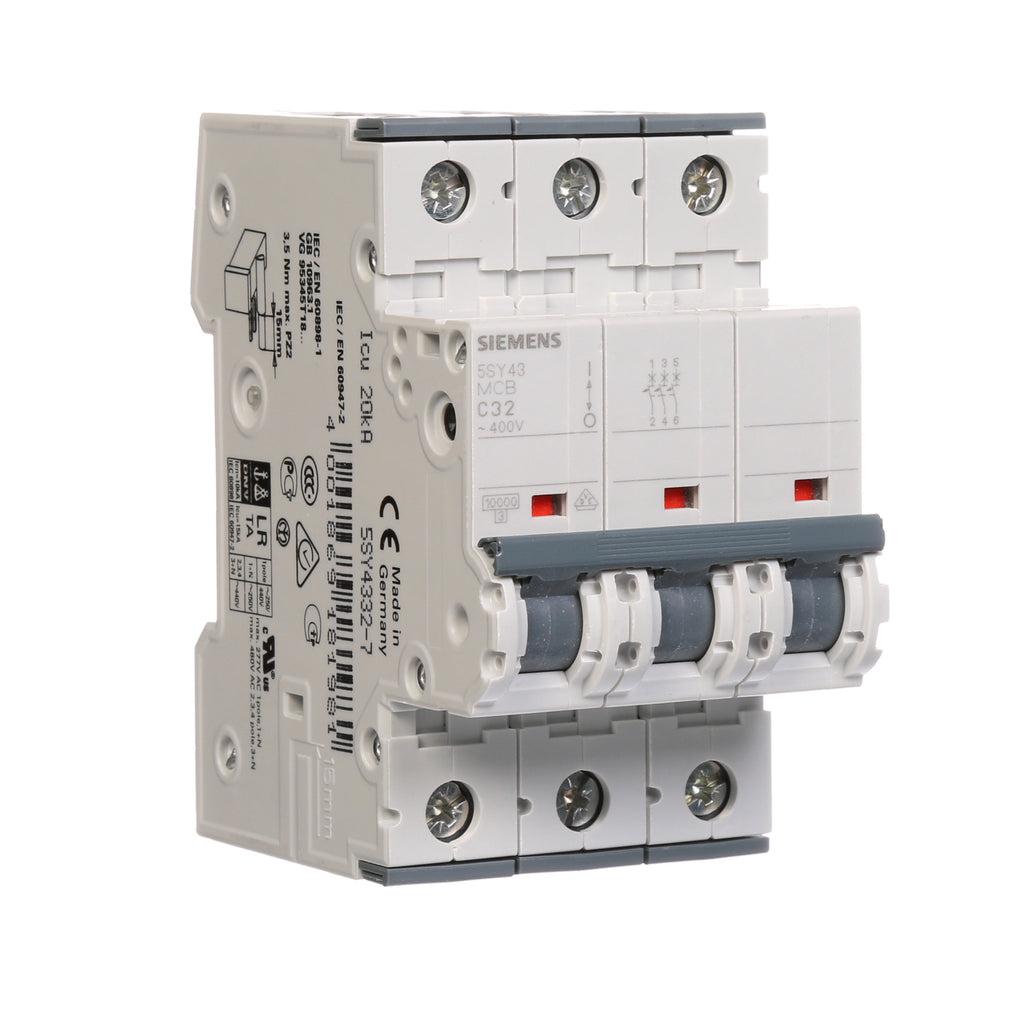

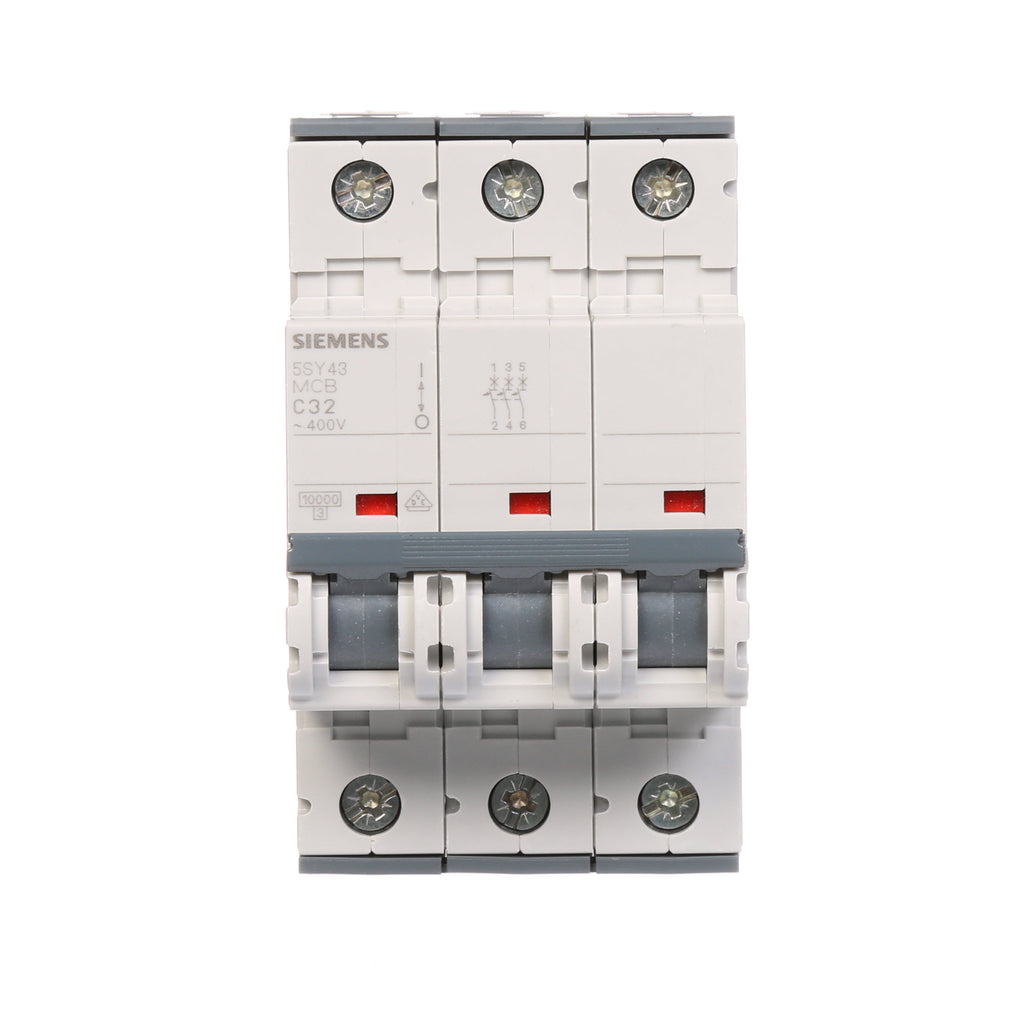

5SY4332-7 is a Siemens 3-pole miniature circuit breaker rated for 32 amps and 400 volts AC with a C curve trip characteristic and a 10kA interrupt rating.

This circuit breaker is designed for industrial and mechanical engineering applications, featuring a 3-pole configuration with a 70 mm installation depth and combined terminals on top and bottom. It supports multi-phase operation at 400 V AC and single-phase operation at 230 V AC, with a rated DC voltage of 60 V. The device offers a breaking capacity of 10 kA according to EN 60898 and 15 kA at DC per IEC 60947-2 standards. It has an IP20 protection class with connected conductors and supports conductor cross sections from 0.75 mm² up to 25 mm² for finely stranded wires. The tightening torque for screw-type terminals ranges from 2.5 to 3.5 N·m.

• Amperage: 32 A
• Voltage Rating: 400 V AC, 60 V DC
• Poles: 3
• Trip Curve: C Curve
• Interrupt Rating: 10 kA (EN 60898), 15 kA (DC IEC 60947-2)
• Mounting Type: DIN Rail
• Installation Depth: 70 mm
• Protection Class: IP20 with connected conductors
• Conductor Cross Section: 0.75 mm² to 25 mm² (finely stranded)
• Tightening Torque: 2.5 to 3.5 N·m
• Frequency: 50/60 Hz

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 5SY4332-7
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Trip Units & Programmers
• Family : 5SY Series
• Type : 5SY4
• Voltage : 400
• Amperage : 32
• Phase : 3
• Poles : 3
• AIC rating : 10kA@400V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 75455487639
• GTIN : 00754554876399
• Weight : 0.46
