Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description

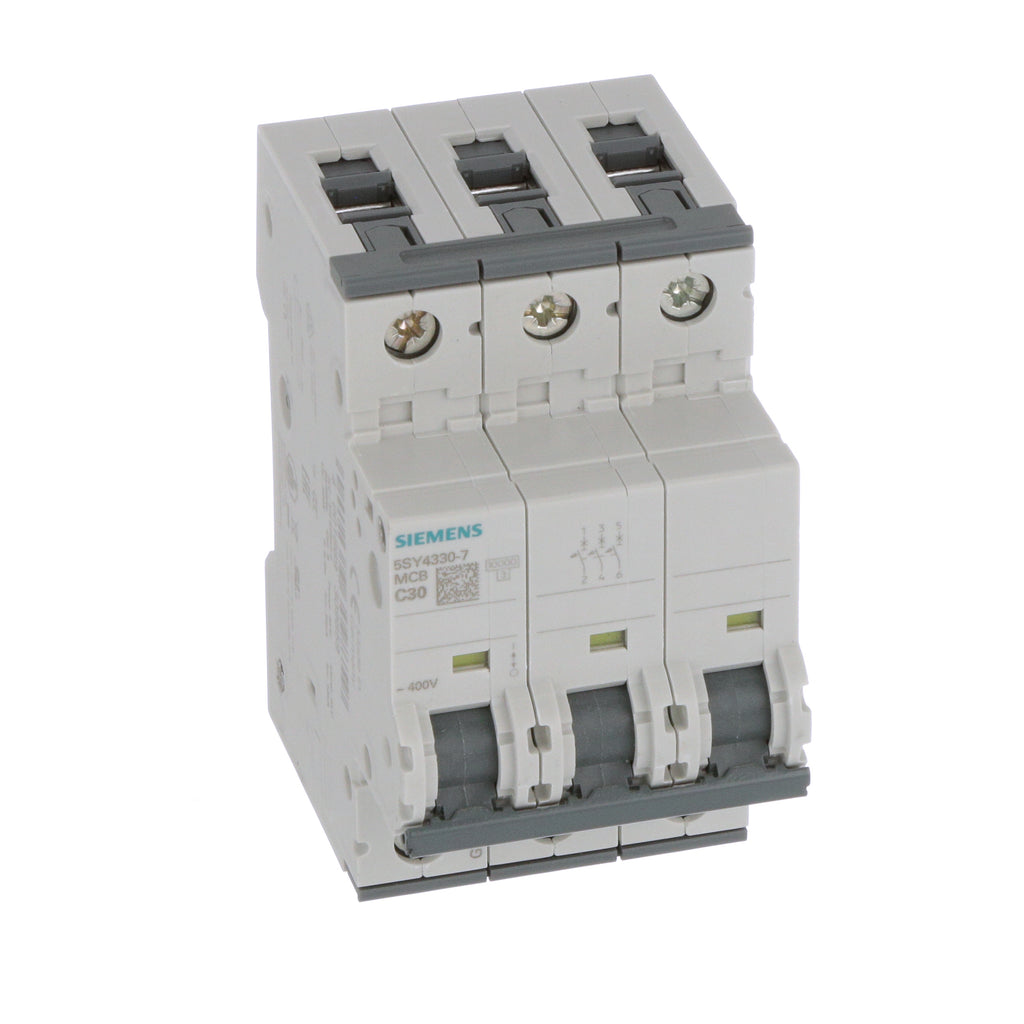

5SY4330-7
5SY4330-7 is a Siemens miniature circuit breaker designed as a supplementary protector for industrial control applications requiring additional branch circuit protection. This 3-pole device features a C-curve tripping characteristic suited for circuits with medium inrush currents and mounts on standard 35mm DIN rail. The breaker combines a delayed thermal release for low overcurrents with an instantaneous electromagnetic release for high overload and short-circuit protection, utilizing special contact materials to resist welding and ensure long service life. Key Specifications
- Part Number: 5SY4330-7
- Manufacturer: Siemens
- Current Rating: 30 Amperes
- Voltage Rating AC: 400 Volts
- Voltage Rating DC: 60 Volts (maximum 72V)
- Poles: 3-Pole
- Trip Characteristic: C Curve
- Interrupt Rating: 10 kA at 400V AC per EN 60898
- Mounting: DIN Rail (35mm)
- Conductor Cross-Section: 0.75 to 35 mm2 solid or stranded
- Operating Frequency: 50/60 Hz
- Protection Class: IP20 with connected conductors
- Dimensions: Height 90mm, Width 54mm
Specifications
- Part Number: 5SY4330-7
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : 5SY Series
- Type : 5SY4
- Voltage : 400
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 10kA@400V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 75455488942
- GTIN : 00754554889429
- Weight : 1
