Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
5SY4216-7

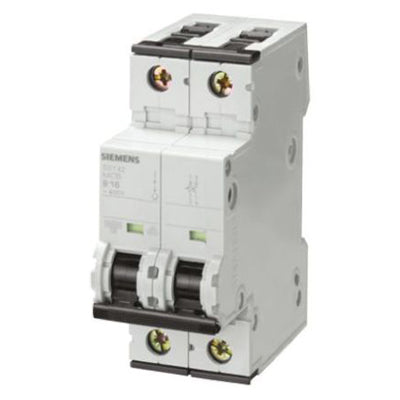

5SY4216-7 is a Siemens 2-pole miniature circuit breaker with a 16 ampere rating and C curve tripping characteristic designed for reliable circuit protection.This miniature circuit breaker supports a supply voltage of up to 400 V AC and features a breaking capacity of 10 kA at AC voltage. It is designed for mounting on a standard 35mm DIN rail and has a compact width of 70 mm. The breaker provides protection with a type C trip curve suitable for medium inrush currents. It complies with protection class IP20 when conductors are connected and is suitable for use in SENTRON systems.
- Key Specifications
- Amperage: 16 A
- Poles: 2
- Voltage Rating: 400 V AC
- Trip Curve: Type C
- Interrupt Rating: 10 kA (AC)
- Mounting Type: 35mm DIN Rail
- Width: 70 mm
- Protection Class: IP20 (with connected conductors)
- Product Series: SENTRON
- Part Number: 5SY4216-7
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : 5SY Series
- Type : 5SY4
- Voltage : 400
- Amperage : 16
- Phase : 1
- Poles : 2
- AIC rating : 10kA@400V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
- UPC : 75455487589
- GTIN : 00754554875897
- Weight : 0.99
