- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
5SY4120-5

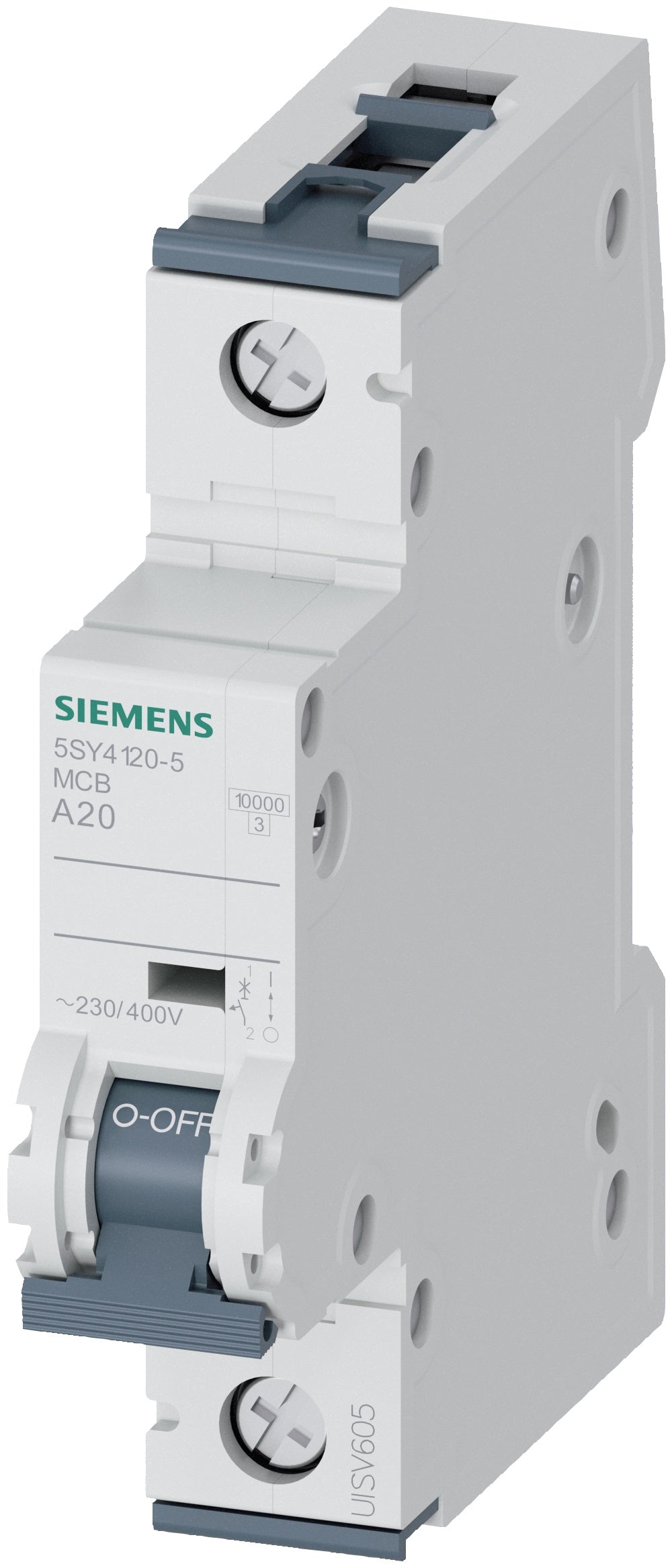

5SY4120-5 is a Siemens miniature circuit breaker designed for 20 ampere current rating with a 1-pole configuration and A curve tripping characteristic.This Siemens 5SY4120-5 circuit breaker operates at 230/400 V AC with a short circuit breaking capacity of 10 kA, suitable for DIN rail mounting. It features an A characteristic trip unit ideal for protecting sensitive circuits, with IP20 protection class and compliance with industrial standards for reliable performance.
- Current Rating: 20A
- Voltage Rating: 230/400 V AC
- Number of Poles: 1
- Tripping Characteristic: A Curve
- Short Circuit Breaking Capacity: 10 kA
- Mounting Type: DIN Rail
- Protection Class: IP20
- Series/Frame: 5SY4
- Operating Temperature Range: -40 to 70°C
- Mechanical Service Life: 10,000 operating cycles
- Overvoltage Category: III
- Degree of Pollution: 3
Specifications
- Part Number: 5SY4120-5
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : 5SY Series
- Voltage : 400
- Amperage : 20
- Phase : 1
- Poles : 1
- AIC rating : 6kA@400V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 075455487520
- Weight : 0.4
