5SY4-206-7 - Siemens 6A 2-Pole Miniature Circuit Breaker 400V C Curve 10kA DIN Rail Mount

SKU: 5SY4-206-7-ReCert
Condition: Re-Certified
Price:
$63.26
Stock:
Low inventory, please call for stock check
This ships in 1-2 business days

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

5SY4-206-7 - Siemens Feed-Thru 400V 6A 2 pole circuit breaker 6kA@400V - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only

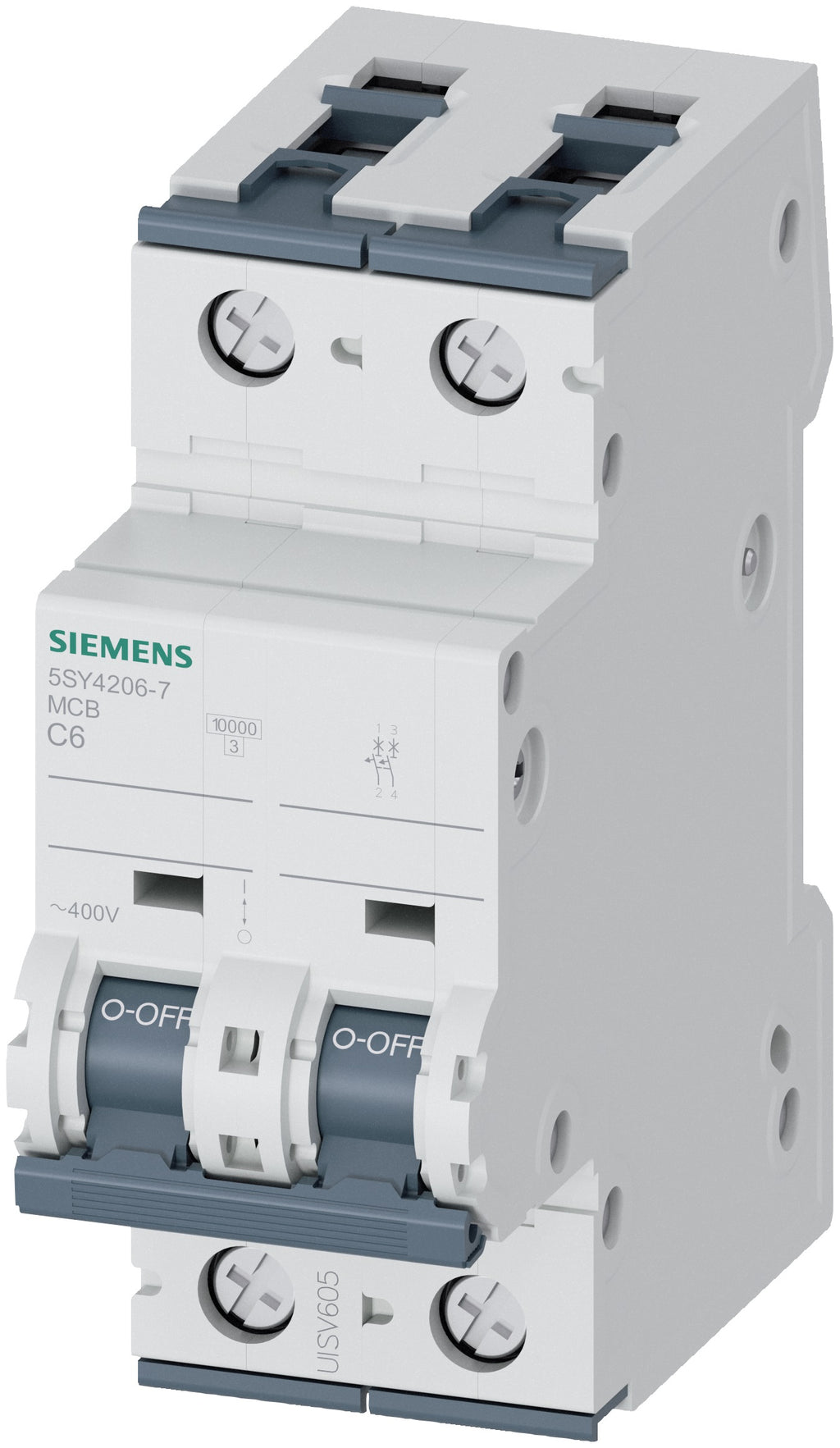

5SY4-206-7 - Siemens Feed-Thru 400V 6A 2 pole circuit breaker 6kA@400V - Essential Electric Supply

Description

5SY4-206-7


5SY4-206-7 is a Siemens 2-pole miniature circuit breaker designed for reliable protection in electrical systems.This circuit breaker features a 6 ampere rating with a C curve trip characteristic, suitable for medium inrush currents. It supports an AC voltage of up to 400 V and a DC voltage rating of 60 V, with a breaking capacity of 10 kA at AC and 15 kA at DC. The device mounts on a standard 35 mm DIN rail and has a compact width of 70 mm. It offers protection class IP20 and is certified to IEC and UL standards.
    Key Specifications
    • Amperage: 6 A
    • Poles: 2
    • Voltage Rating: 400 V AC, 60 V DC
    • Trip Unit: C Curve
    • Interrupt Rating: 10 kA AC, 15 kA DC
    • Mounting Type: 35 mm DIN Rail
    • Width: 70 mm
    • Protection Class: IP20
    • Standards: IEC 60947-2, UL 1077
    • Connection Cross-Section: 0.75 to 35 mm²
    At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

    Specifications

    • Part Number: 5SY4-206-7
    • Manufacturer : Siemens
    • Category : Circuit Breaker
    • Item Subcategory : Molded Case
    • Family : 5SY Series
    • Voltage : 400
    • Amperage : 6
    • Phase : 2
    • Poles : 2
    • AIC rating : 6kA@400V
    • Connection : Feed-Thru
    • Functions : LI - Long-Time and Instantaneous
    • Protection : Thermal Magnetic

    Product Data

    • Weight : 0.6622
