2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
5SJ4110-7HG40

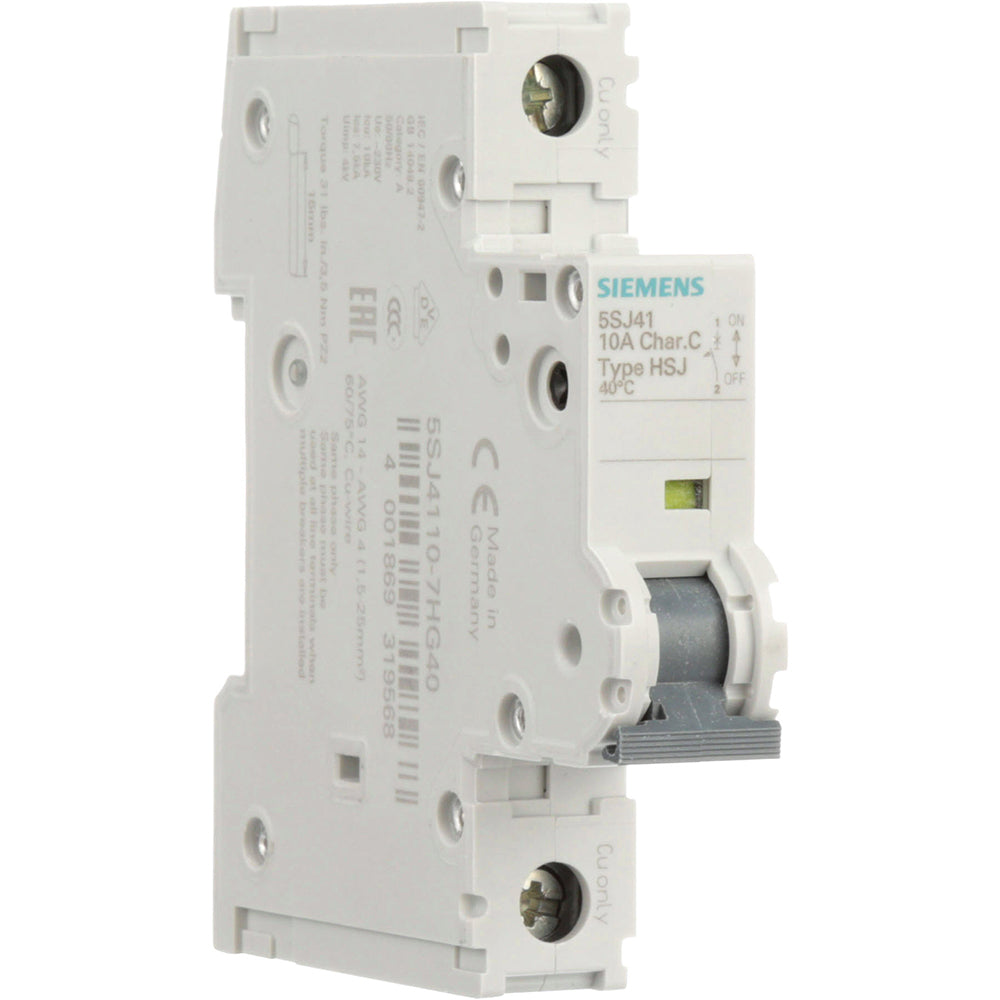

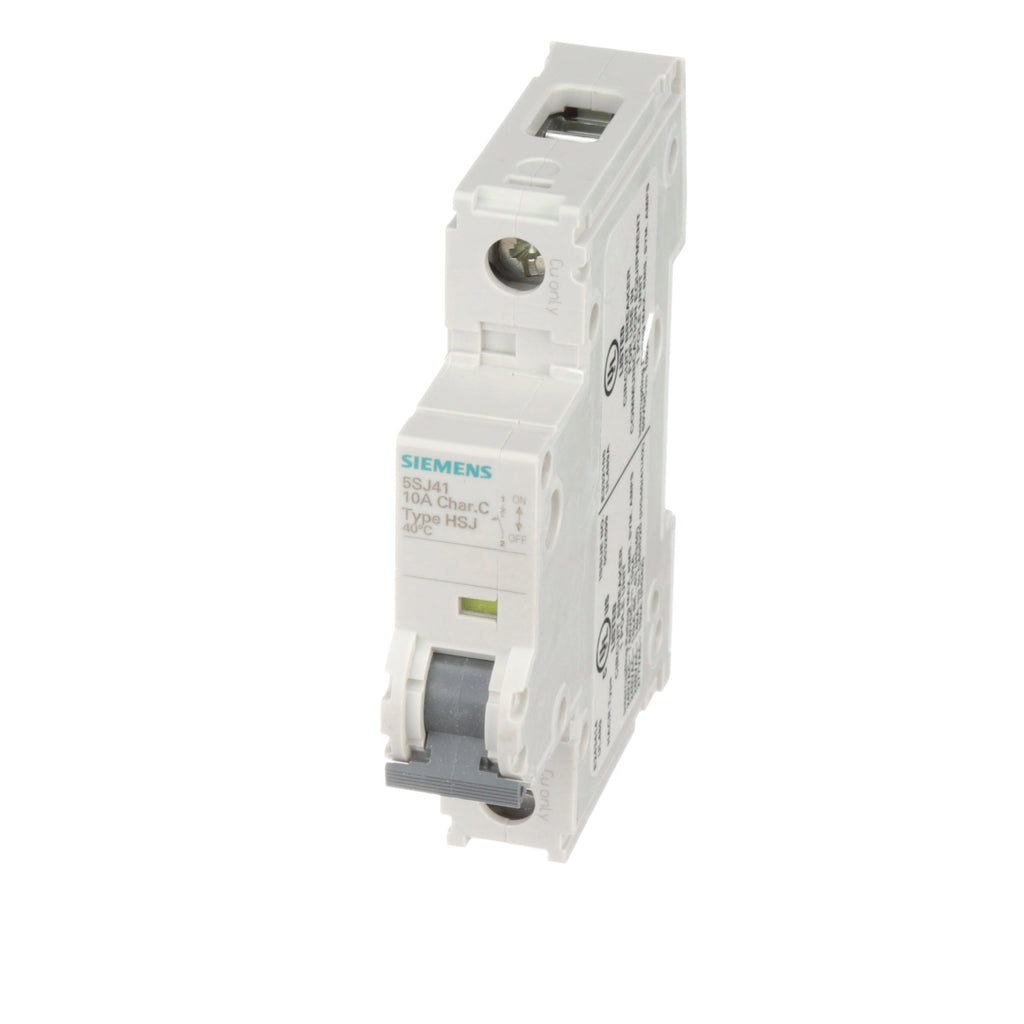

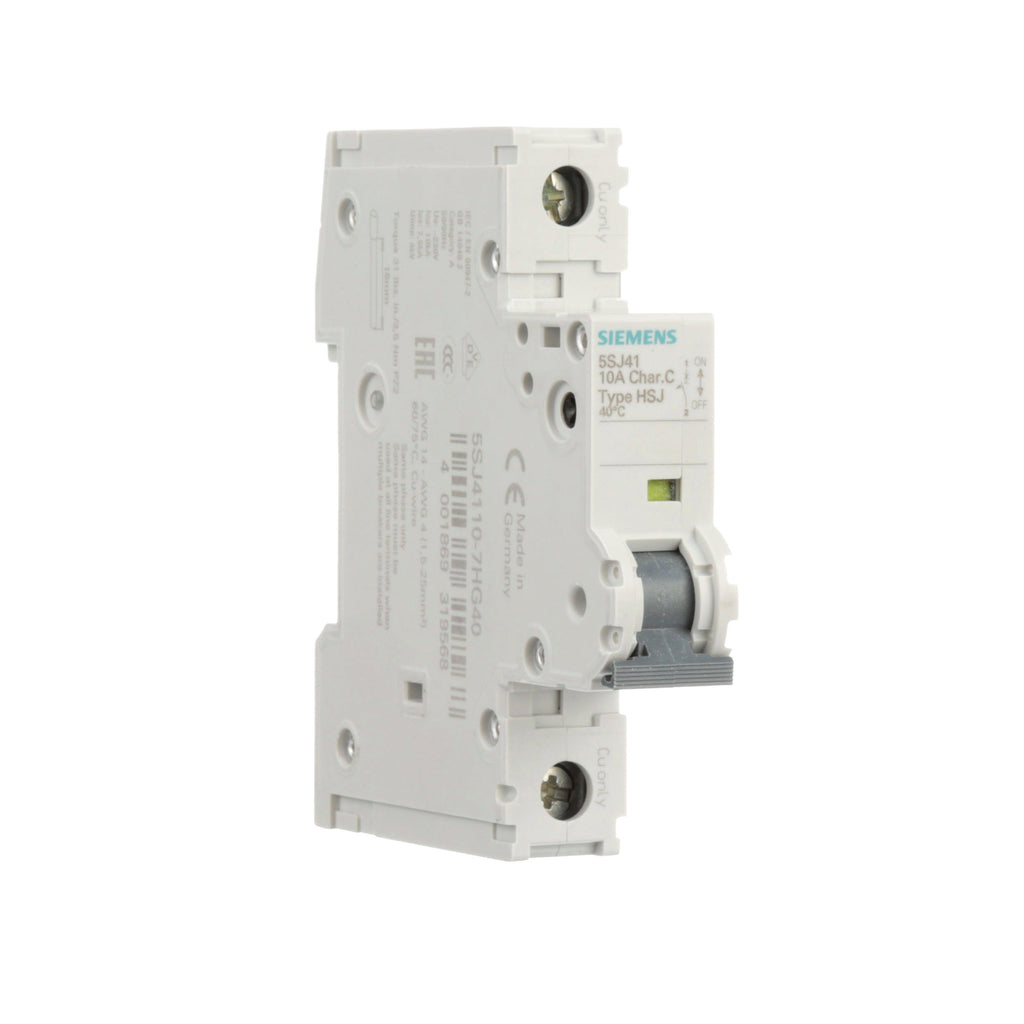

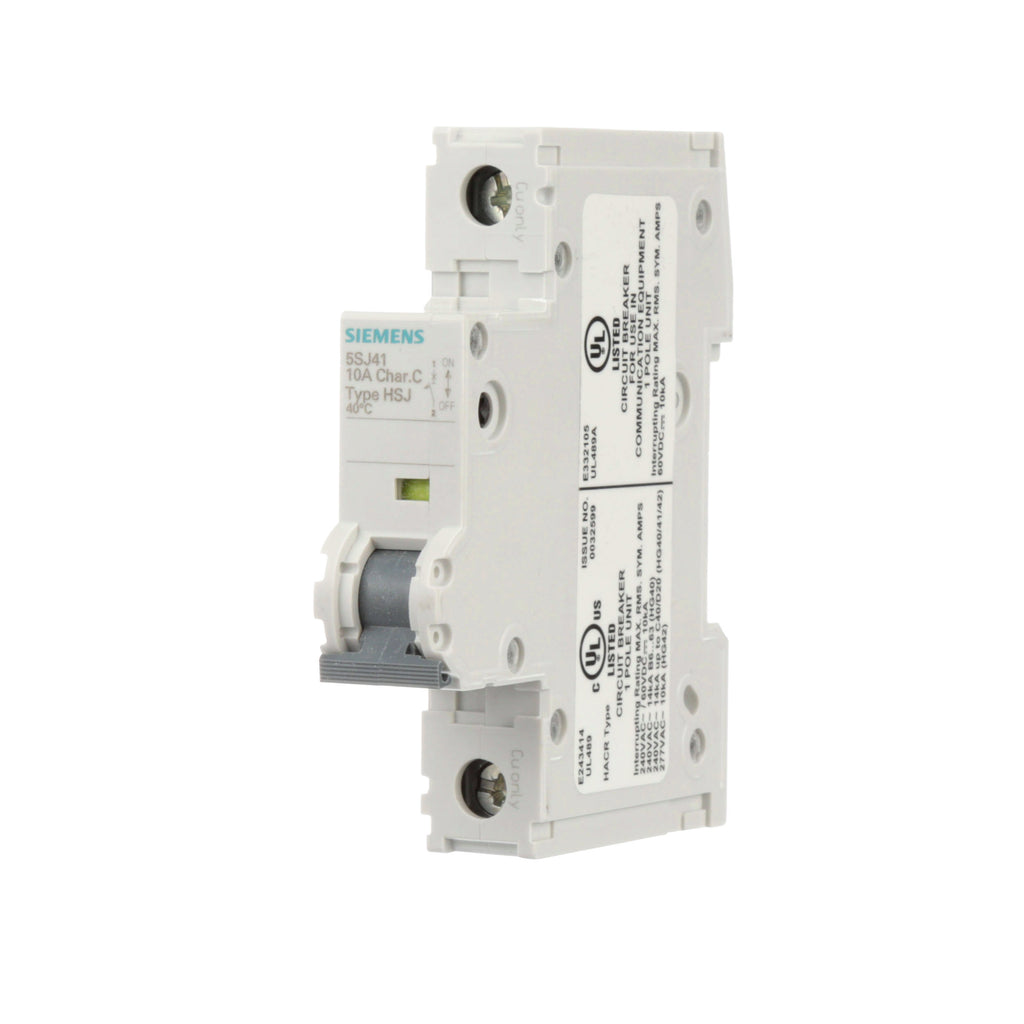

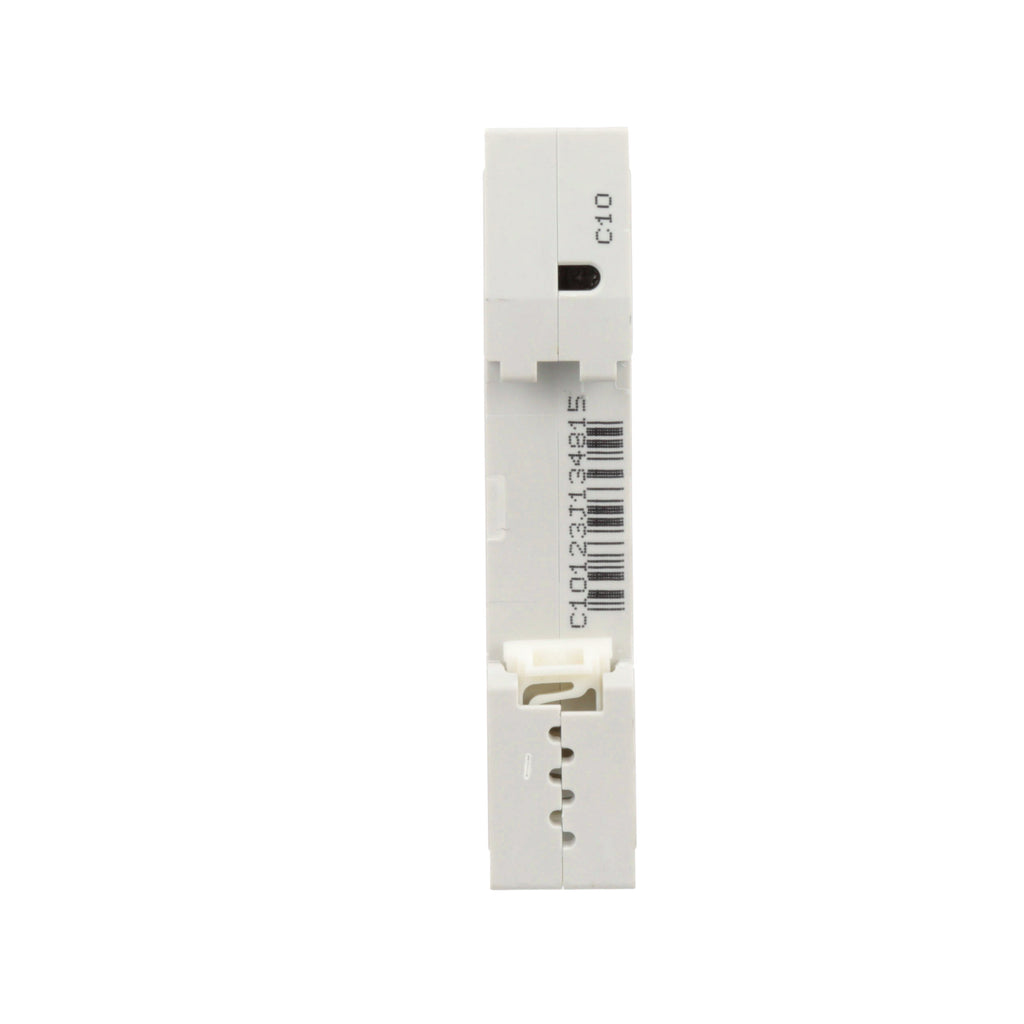

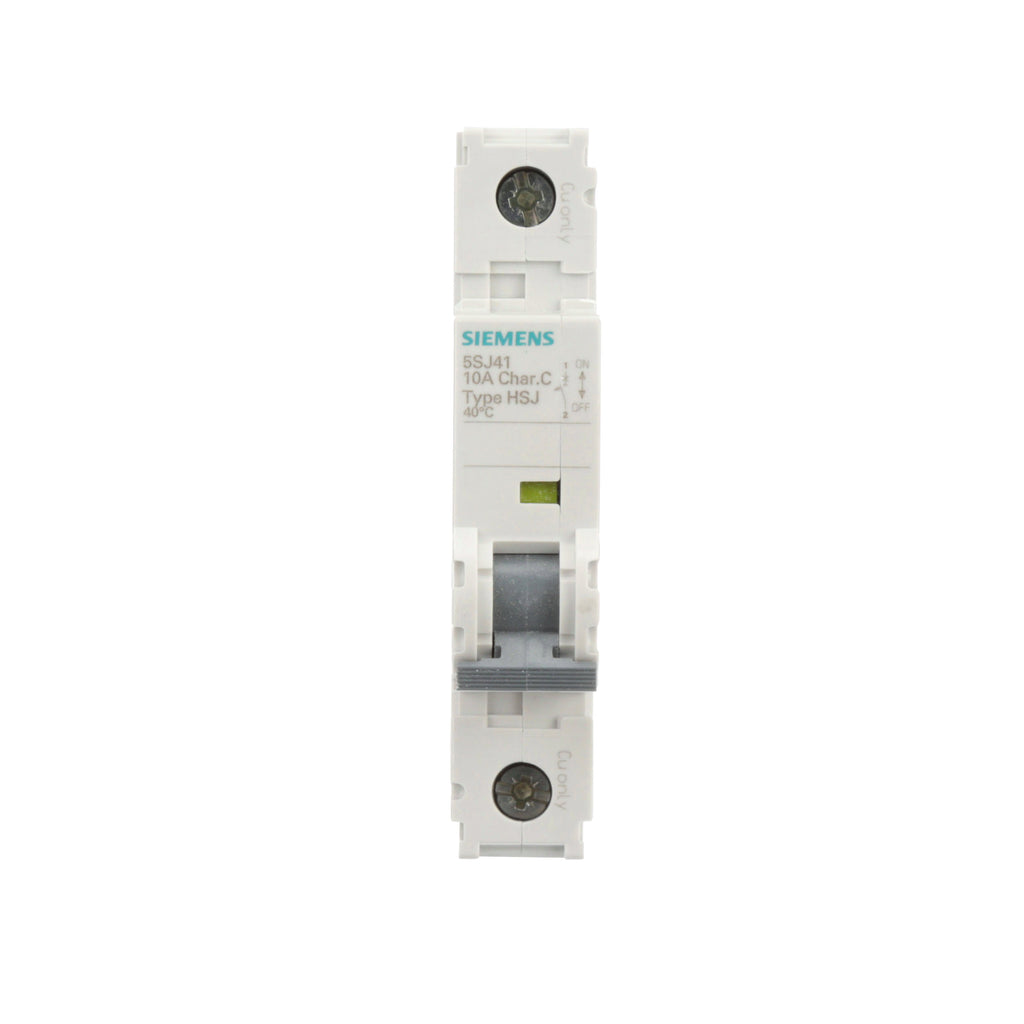

5SJ4110-7HG40 is a Siemens 1-pole miniature circuit breaker with a 10 amp rating designed for reliable overcurrent protection in industrial and commercial applications.This Siemens Sentron series breaker features a C-trip thermal magnetic trip unit, suitable for 240 V AC and 60 V DC operation. It has a 14 kA interrupt rating, equal polarity, and complies with UL 489 standards. The compact device mounts on a 35 mm DIN rail and offers IP20 protection. It supports line/load screw connections for 14 to 4 AWG copper wiring and operates within a temperature range of -25 to 55 degrees Celsius.
- Key Specifications
- Amperage: 10 A
- Voltage: 240 V AC, 60 V DC max
- Poles: 1
- Interrupt Rating: 14 kA
- Trip Unit: C-Trip thermal magnetic
- Mounting Type: 35 mm DIN rail
- Enclosure Type: IP20
- Wire Range: 14 to 4 AWG copper
- Standards: UL 489, CSA certified
- Dimensions: 90 mm H x 18 mm W x 70 mm D
- Operating Temperature: -25 to 55 °C
Specifications
- Part Number: 5SJ4110-7HG40
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : 5SJ Series
- Type : 5SJ41
- Voltage : 240
- Amperage : 10
- Phase : 1
- Poles : 1
- AIC rating : 14kA@240V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 75455492833
- GTIN : 00754554928333
- Weight : 0.4
