Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
5SJ4104-7HG40

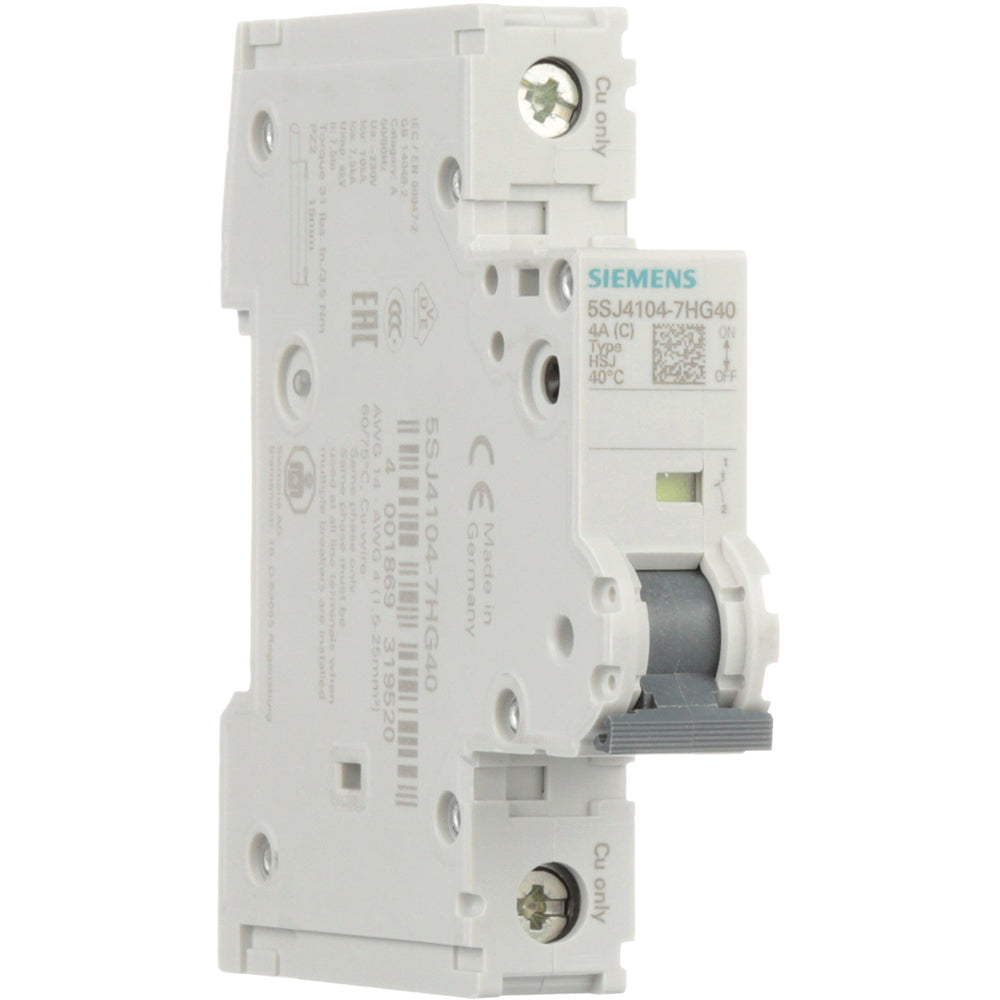

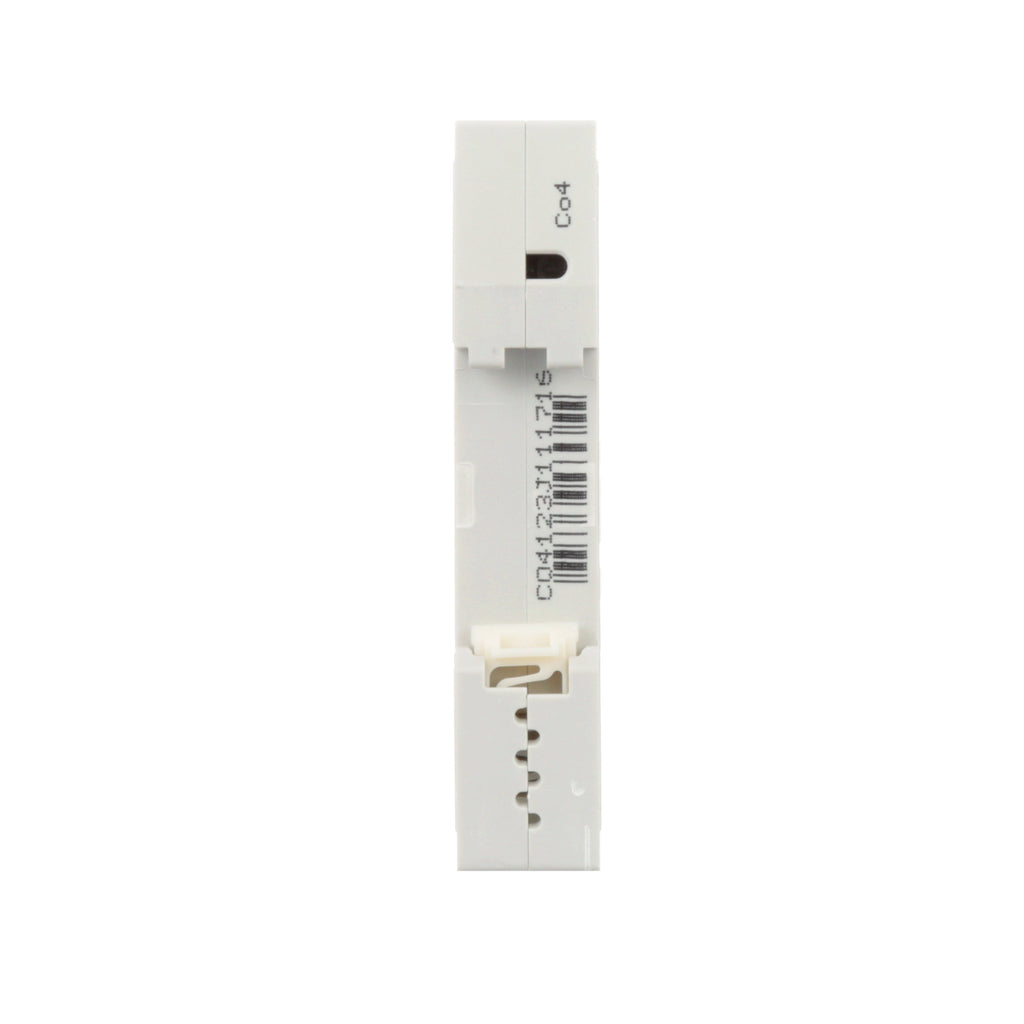

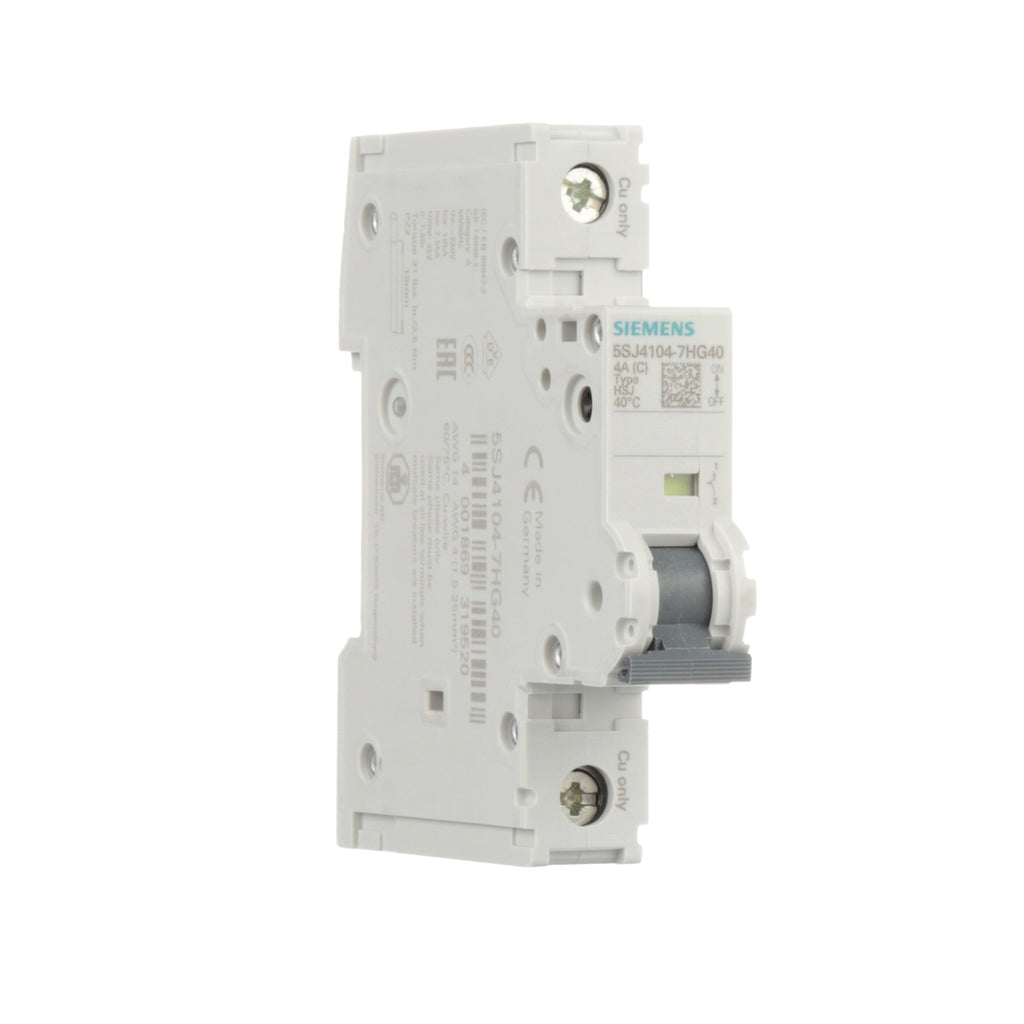

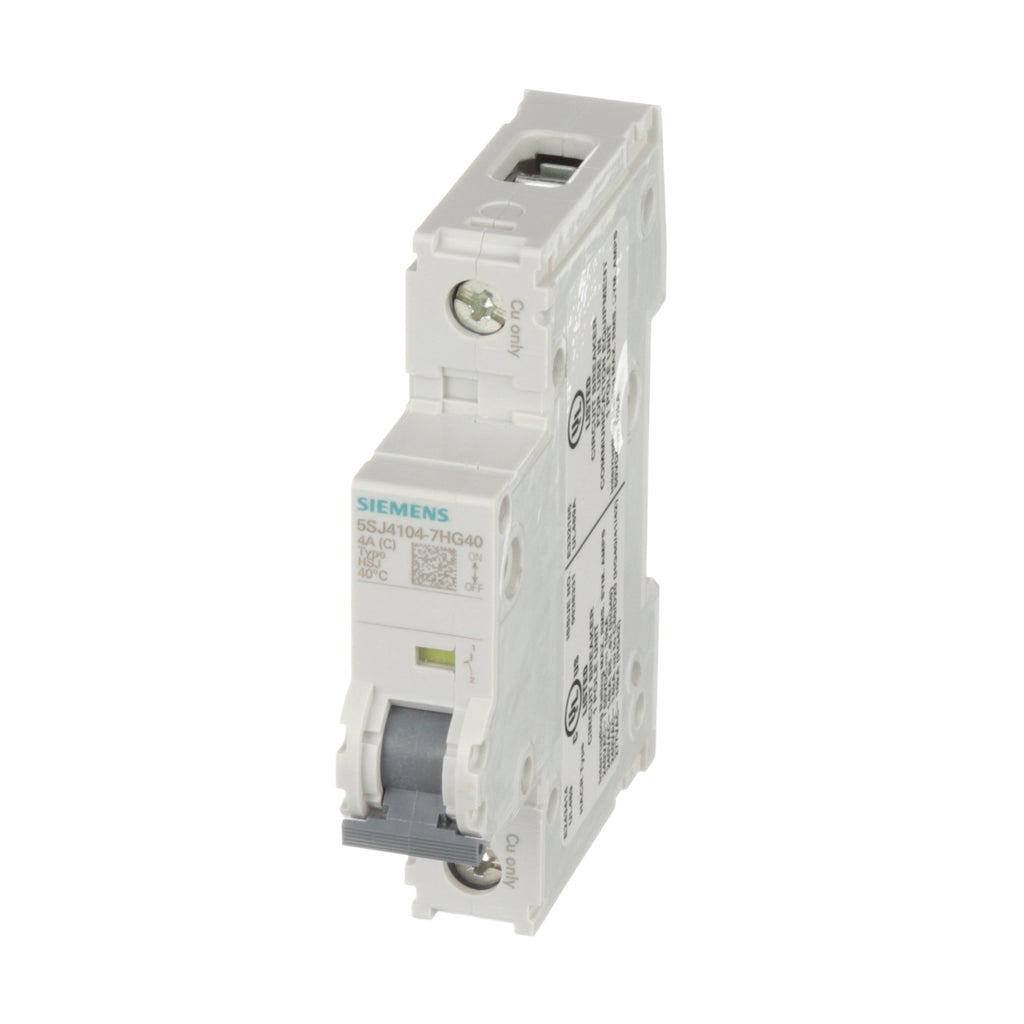

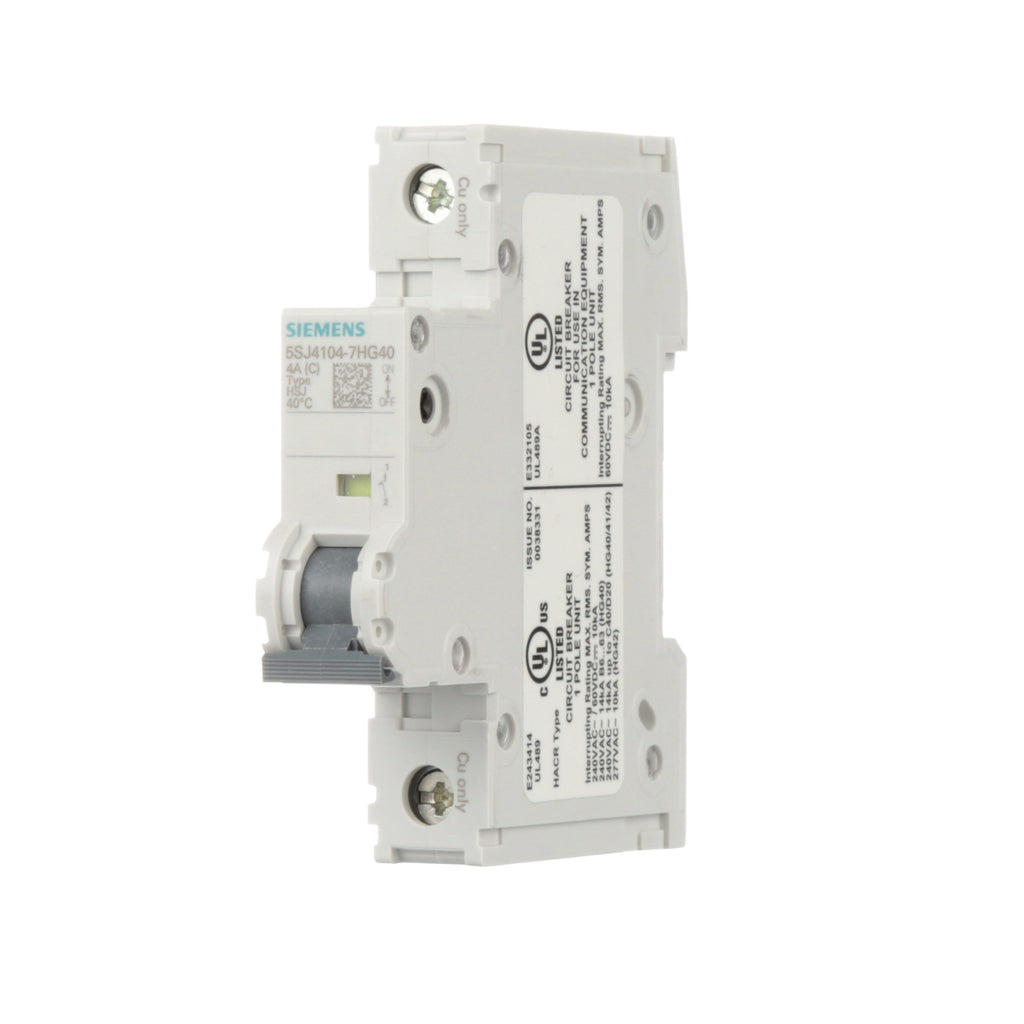

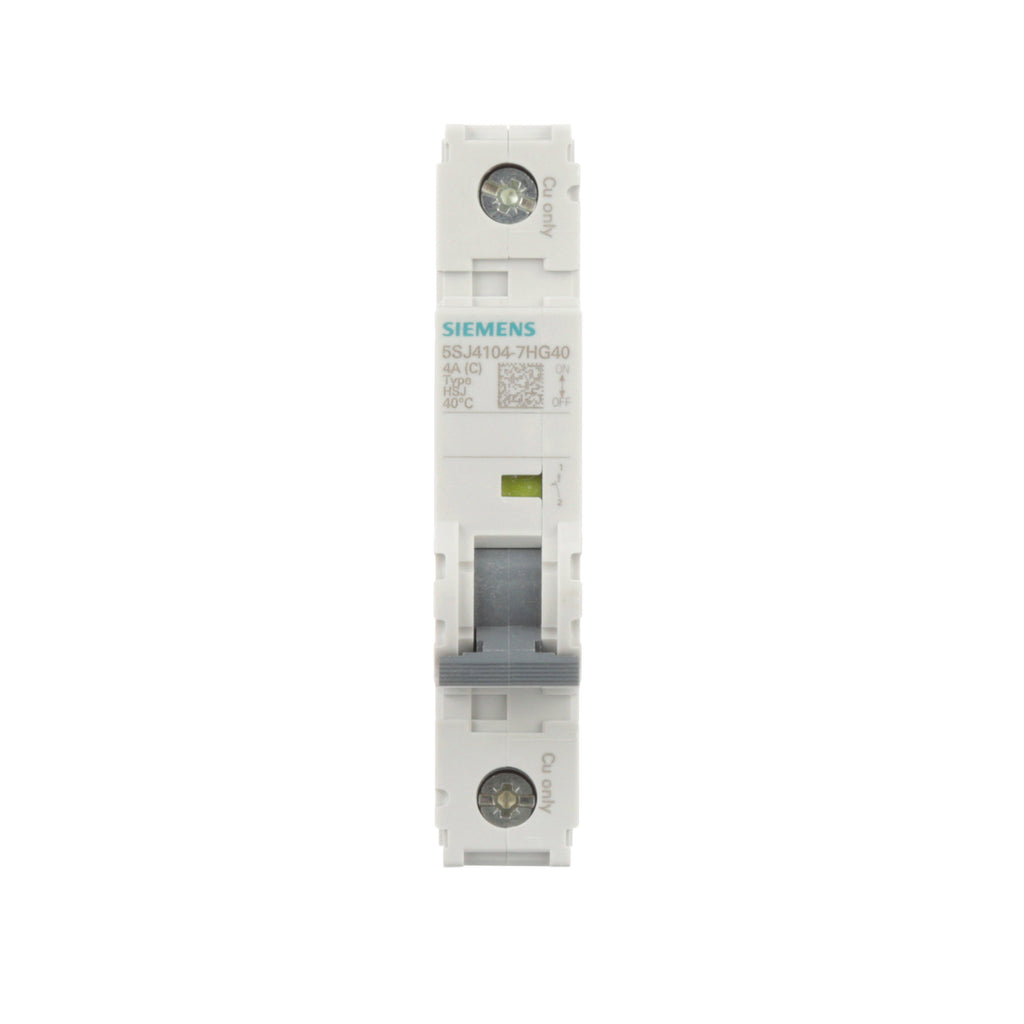

5SJ4104-7HG40 is a Siemens 1-pole miniature circuit breaker with a 4 ampere rating and 240 V AC voltage designed for reliable branch circuit protection.This Siemens SENTRON miniature circuit breaker features a Type C trip curve, 14 kA interrupt rating, and is suitable for mounting on a standard 35 mm DIN rail. It complies with UL 489 and IEC 60947-2 standards, has a compact 18 mm width and 70 mm installation depth, and offers protection with IP20 class. The breaker uses thermal/magnetic trip technology and supports operation up to 400 V AC supply voltage.
- Key Specifications
- Amperage: 4 A
- Voltage: 240 V AC
- Number of Poles: 1
- Trip Unit: Type C Thermal/Magnetic
- Interrupt Rating: 14 kA
- Mounting Type: 35 mm DIN Rail
- Standards: UL 489, IEC 60947-2
- Width: 18 mm
- Installation Depth: 70 mm
- Protection Class: IP20
- Part Number: 5SJ4104-7HG40
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : 5SJ Series
- Type : 5SJ41
- Voltage : 240
- Amperage : 4
- Phase : 1
- Poles : 1
- AIC rating : 14kA@240V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
- UPC : 75455493088
- GTIN : 00754554930886
- Weight : 0.4
