Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description

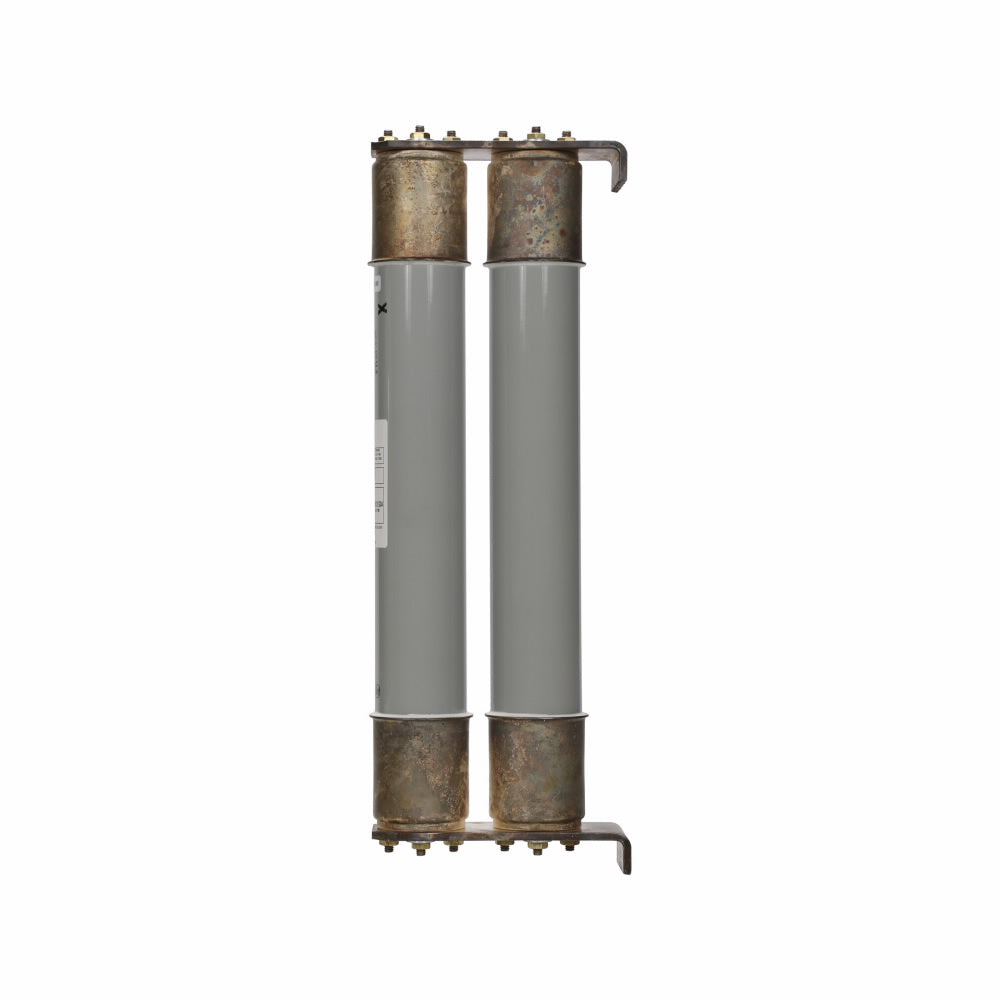

5HCL-250E
5HCL-250E is an Eaton Bussmann series medium voltage fuse rated 250A at 5.5kV with a 63kA interrupting rating, designed for feeder circuit, switchgear, and transformer protection applications. This E-Rated fuse features a clip-lock mounting mechanism and non-disconnect design, making it suitable for indoor use in metal-enclosed switchgear and distribution systems. The fuse conforms to ANSI standards and is UL listed for reliable circuit protection in industrial and utility environments.
- Amperage Rating: 250A
- Voltage Rating: 5.5kV
- Interrupting Rating: 63kA RMS Symmetrical
- Series: Bussmann HCL
- Mounting Type: Clip-Lock
- Configuration: Double Barrel
- Disconnect Type: Non-Disconnect
- Application: Feeder Circuit, Switchgear, Transformer Protection
- Installation: Indoor
- Certification: UL Listed, ANSI E-Rated
- Overall Length: 22.8 inches
- Diameter: 3 inches
Specifications
- Part Number: 5HCL-250E
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Voltage : 5500
- Amperage : 250
- AIC rating : [email protected]
- Diameter : 3
- Class Rating : E
- Barrels : 3
Product Data
- UPC : 782114892725
- GTIN : 00782114892725
- Country of Origin : Dominican Republic
- Dimensions : 22.5 in x 3.3 in x 3 in (Length/Depth x Height x Width)
- Weight : 10
- Certification : IEEE Std. C37.41
