5CLS70-600E - Eaton CLS Type Current Limiting Fuse 600A 5.5kV Class E

5CLS70-600E

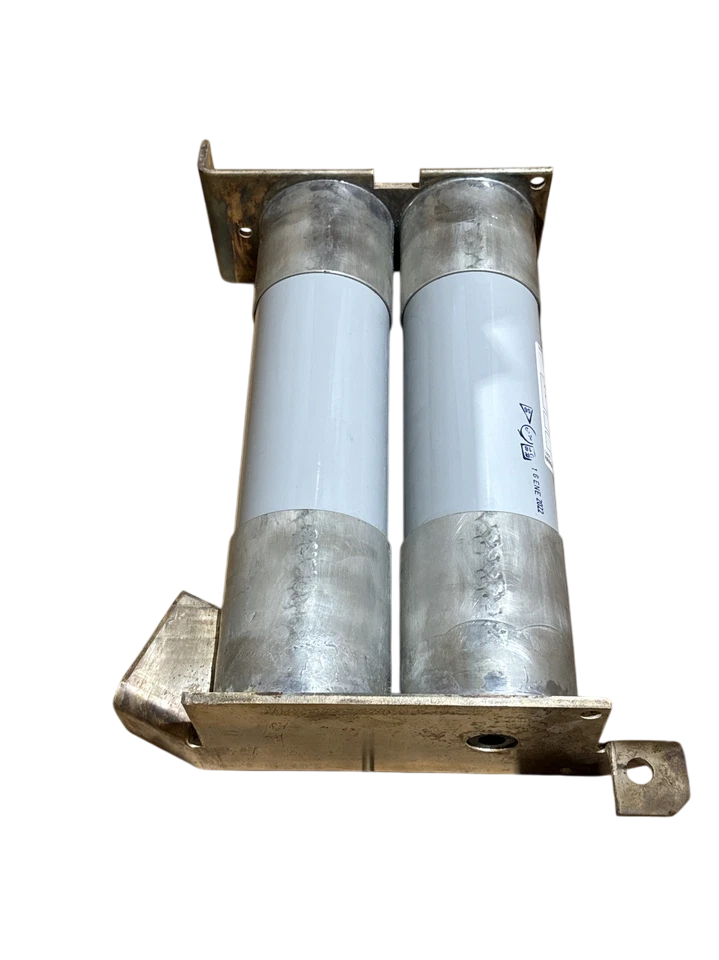

5CLS70-600E is an Eaton CLS type current limiting cartridge fuse designed for high-voltage power distribution applications requiring reliable overcurrent protection and fault current limitation.

This double-barrel fuse delivers 600 amperes continuous current rating at a maximum voltage of 5.5 kVAC with a nominal voltage rating of 4.8 kV. The Class E designation indicates a 300-second melting time at 200-240% of rated current per ANSI C37.47 standards. With a 50 kA interrupt rating, the 5CLS70-600E provides robust protection in medium-voltage electrical systems. The fuse requires a compatible holder for installation and is certified to IEEE Std. C37.41.

• Amperage Rating: 600A
• Voltage Rating: 5.5 kVAC maximum, 4.8 kV nominal
• Fuse Type: Cartridge, double barrel
• Class: E class
• Interrupt Rating: 50 kAIC
• Mounting Type: Requires holder
• Product Diameter: 3 inches
• Certification: IEEE Std. C37.41
• Manufacturer Warranty: 1 year from installation or 18 months from shipment, whichever occurs first

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 5CLS70-600E
• Manufacturer : Eaton
• Brand : Eaton
• Category : Fuse
• Item Subcategory : Medium Voltage Fuse
• Family : CLS
• Type : CLS70
• Voltage : 5080
• Amperage : 600
• AIC rating : [email protected]
• Connection : Bolt In
• Diameter : 4
• Class Rating : E
• Barrels : 2
• Clip Center : 18.38

Product Data

• UPC : 786670500025
• GTIN : 00786670500025
• Country of Origin : Dominican Republic
• Dimensions : 19.5 in x 12 in x 4.5 in (Length/Depth x Height x Width)
• Weight : 28
• Certification : IEEE Std. C37.41
