Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description
5CLE-600E

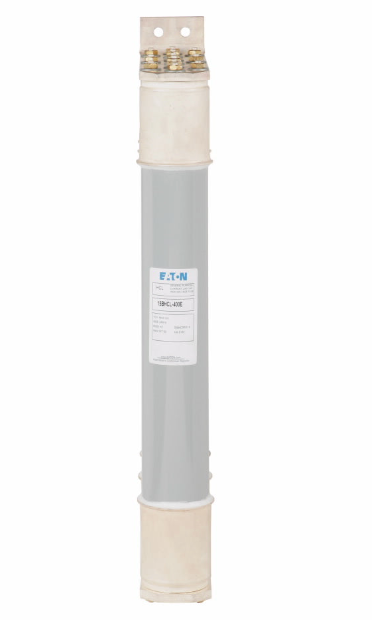

5CLE-600E is an Eaton Bussmann series CLE medium voltage current limiting fuse designed for feeder circuit, switchgear, and transformer protection applications. The 5CLE-600E features a double barrel bolt-in configuration with a 600 ampere rating at 5.5 kVAC, delivering reliable overcurrent protection in industrial and utility power distribution systems. This Class E fuse combines fast-acting current limitation with a 40 kA interrupt rating to safeguard equipment from fault conditions.
- Amperage Rating: 600A
- Voltage Rating: 5.5 kVAC
- Interrupt Rating: 40 kAIC
- Fuse Class: E
- Series: CLE
- Configuration: Double Barrel Bolt-In
- Fuse Diameter: 4 inches
- Type: Current Limiting Fuse
- Mounting: Bolt-In
- Manufacturer: Eaton Bussmann
Specifications
- Part Number: 5CLE-600E
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : CLE
- Type : CLE
- Voltage : 5500
- Amperage : 600
- AIC rating : [email protected]
- Diameter : 4
- Class Rating : E
- Barrels : 2
Product Data
- UPC : 786670219514
- GTIN : 00786670219514
- Country of Origin : Dominican Republic
- Dimensions : 28.9 in x 10.2 in x 4.5 in (Length/Depth x Height x Width)
- Weight : 35
- Certification : IEEE Std. C37.41
