Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description

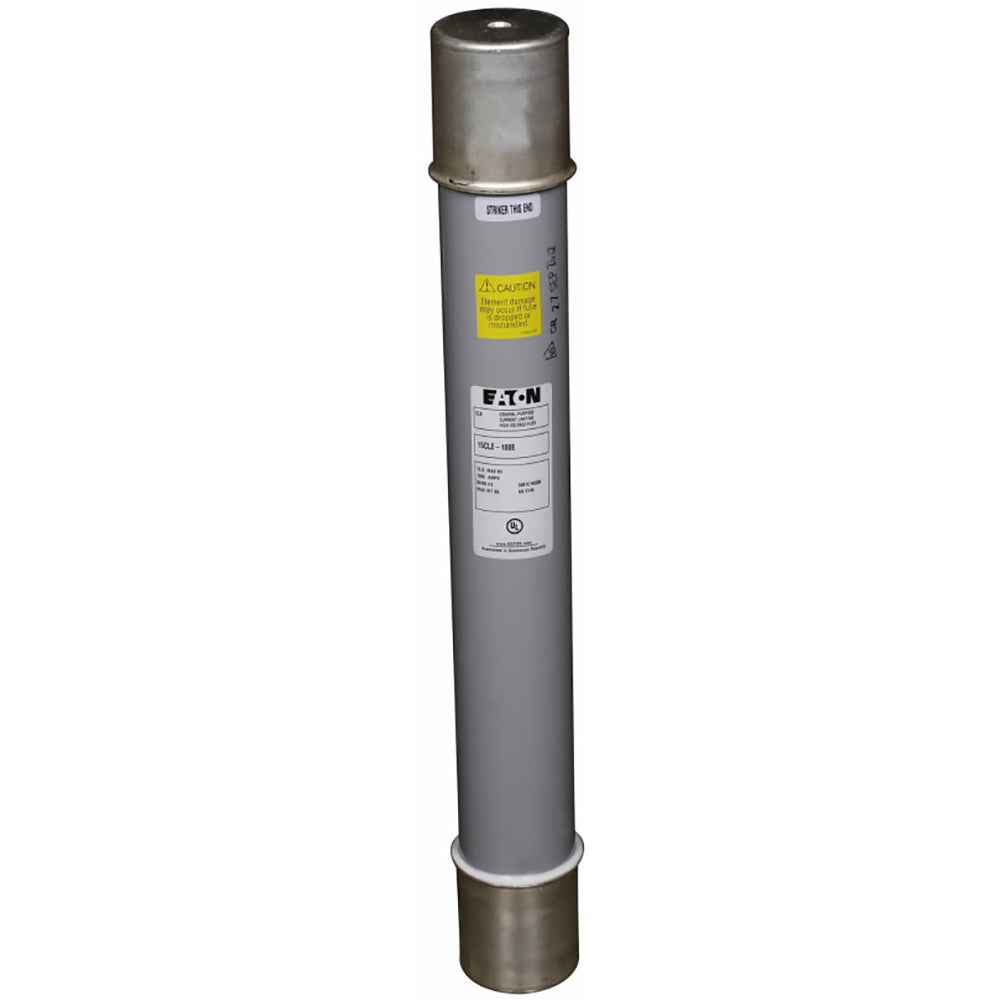

5CLE-200E
5CLE-200E is a Eaton Bussmann series Class E current-limiting fuse designed for medium voltage applications with a 200 ampere rating.
This 5.5 kV fuse features a 63 kA interrupting rating, suitable for feeder circuit, switchgear, and transformer protection. It is part of Eaton's CLE series, known for reliable performance in industrial and utility environments. The fuse is designed for bolt-on mounting and conforms to dimensional standards established by Westinghouse. Consult Eaton for specific mounting options and additional technical details.
- Amperage Rating: 200 A
- Voltage Rating: 5.5 kV
- Interrupt Rating: 63 kA
- Fuse Class: E-Rated
- Series: Bussmann CLE
- Mounting Type: Bolt-on (consult factory for options)
- Product Weight: 10 lb
- Dimensions: 17.9 in length, 3 in width, 3 in height
- Application: Medium Voltage Circuit Protection
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 5CLE-200E
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : CLE
- Type : CLE
- Voltage : 5500
- Amperage : 200
- AIC rating : [email protected]
- Connection : Ferrule
- Diameter : 3
- Class Rating : E
- Barrels : 1
- Clip Center : 14
Product Data
- UPC : 786670001744
- GTIN : 00786670001744
- Country of Origin : Dominican Republic
- Dimensions : 17.9 in x 3 in x 3 in (Length/Depth x Height x Width)
- Weight : 10
- Certification : IEEE Std. C37.41
