Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description

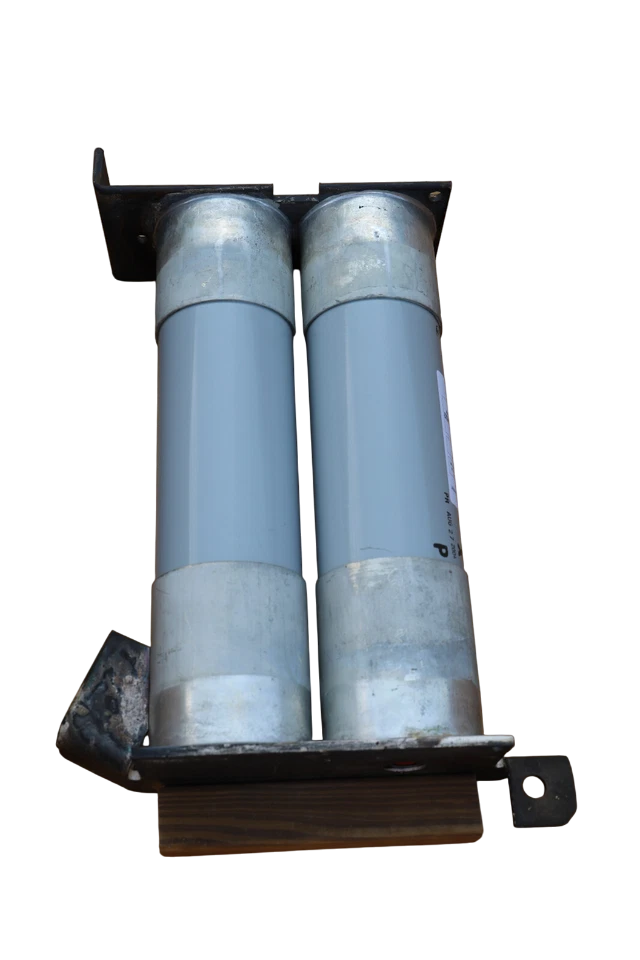

5BCLS-36R
5BCLS-36R is a BCLS Series medium voltage current limiting fuse designed for reliable circuit protection in demanding electrical environments. This Eaton fuse features a robust 2 barrel construction and is engineered for high interrupting capacity and fast response in motor and transformer protection applications.Engineered for durability and safety, the 5BCLS-36R offers a current rating of 650A and a voltage rating of 4.8kV AC. It is a Class R fuse with a 50kA interrupting rating at 5.5kV, making it suitable for use in medium voltage systems requiring high fault current protection. The fuse is designed for bolt-in mounting and is built to meet IEEE Std. C37.41 standards for performance and reliability.
- Series: BCLS
- Current Rating: 650A
- Voltage Rating: 4.8kV AC
- Interrupting Rating: 50kA @ 5.5kV
- Mounting Type: Bolt-in
- Barrels: 2
- Class: R
- Application: Motor and transformer protection
- Standards: IEEE Std. C37.41
Specifications
- Part Number: 5BCLS-36R
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : CLS Series
- Type : BCLS
- Voltage : 4800
- Amperage : 650
- AIC rating : [email protected]
- Connection : Bolt In
- Diameter : 3
- Class Rating : R
- Barrels : 2
- Clip Center : 17.88
Product Data
- UPC : 782116317356
- GTIN : 00782116317356
- Country of Origin : Dominican Republic
- Dimensions : 19.5 in x 9 in x 4.5 in (Length/Depth x Height x Width)
- Weight : 30
- Certification : IEEE Std. C37.41
