Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description
5AHLE-125E

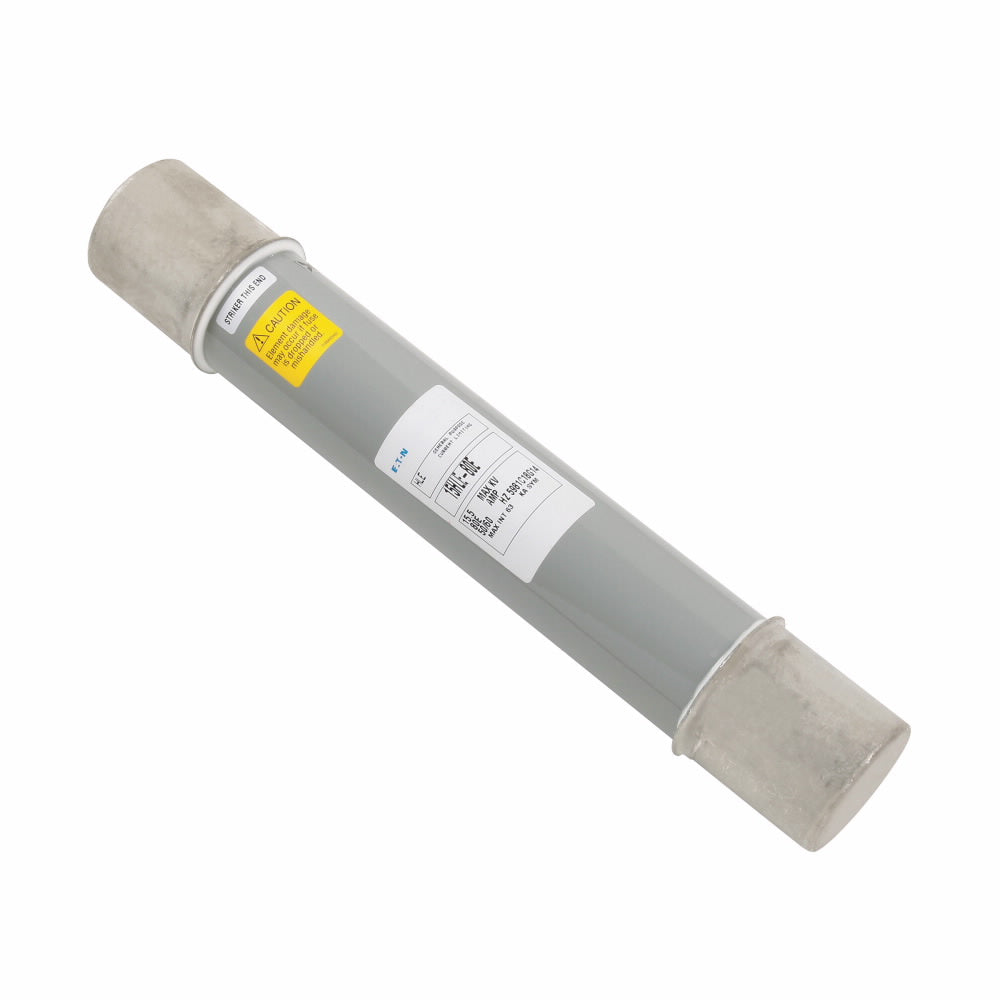

5AHLE-125E is an Eaton AHLE medium voltage fuse designed for reliable circuit protection in industrial and commercial applications. This fuse features a single barrel design and is rated for 125 amps and 5.5 kV, making it suitable for transformer and feeder circuit protection. The 5AHLE-125E is E-rated for enhanced performance and is part of the Ampgard series, known for durability and safety in demanding environments. This cartridge-type fuse is current limiting and provides a high interrupt rating of 63kAIC, ensuring effective protection against short circuits and overloads. The AHLE series is compatible with standard HLE mounting configurations, offering easy installation and replacement in switchgear and distribution panels.
- Part Number: 5AHLE-125E
- Manufacturer: Eaton
- Fuse Type: Cartridge
- Amperage Rating: 125A
- Voltage Rating: 5.5 kVAC
- Interrupt Rating: 63kAIC
- Mounting Type: HLE
- Series: AHLE
- Frame: Ampgard
- Barrel Count: Single Barrel
- Application: Transformer Protection
- Feature: E-Rated
Specifications
- Part Number: 5AHLE-125E
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : AHLE
- Type : AHLE
- Voltage : 5500
- Amperage : 125
- AIC rating : [email protected]
- Diameter : 3
- Class Rating : E
- Barrels : 1
Product Data
- UPC : 782114891025
- GTIN : 00782114891025
- Country of Origin : Dominican Republic
- Dimensions : 15.9 in x 4.2 in x 3 in (Length/Depth x Height x Width)
- Weight : 9
- Certification : ,IEEE Std. C37.41
