Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description

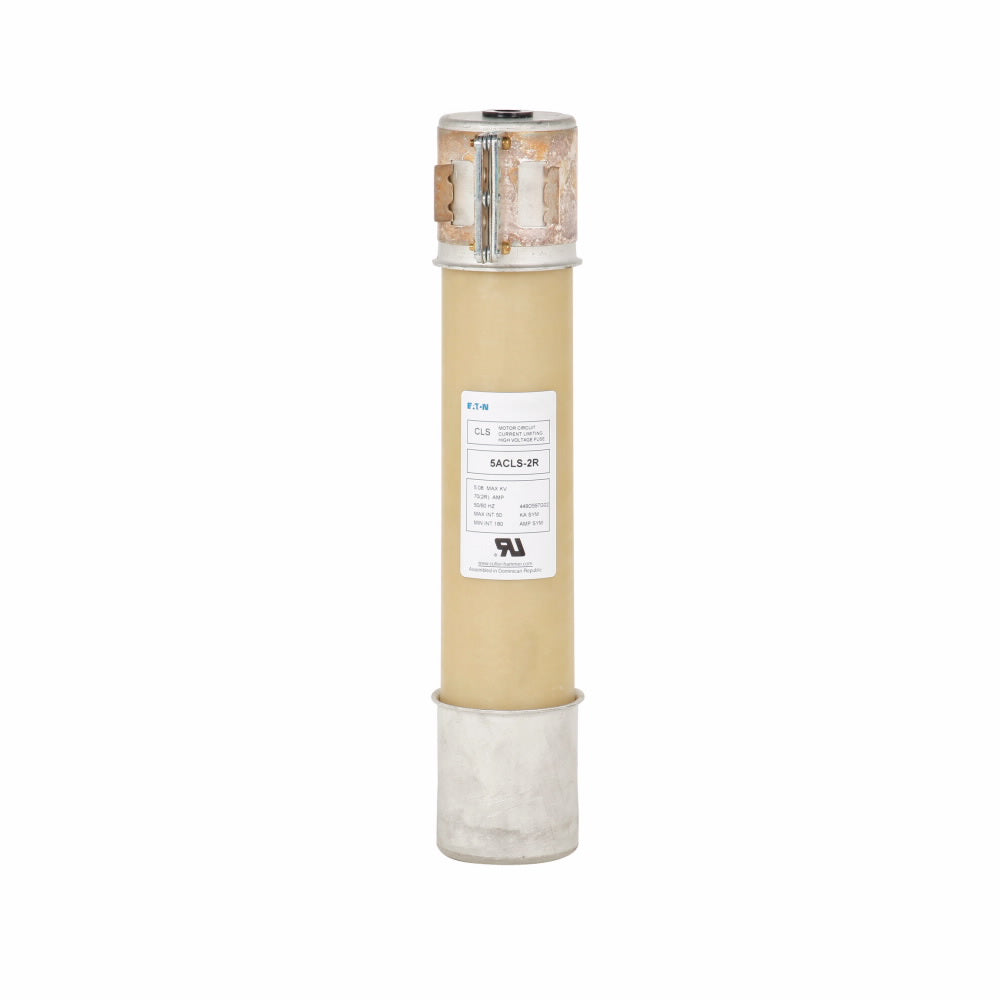

5ACLS-2R
5ACLS-2R is an Eaton Bussmann ACLS 1-Barrel Current Limiting Fuse designed for medium voltage motor circuit protection and backup short-circuit protection. 5ACLS-2R is an Eaton Bussmann ACLS 1-Barrel Current Limiting Fuse designed for medium voltage motor circuit protection and backup short-circuit protection. This R-rated fuse features current-limiting technology with a melt time of 15-35 seconds, providing reliable protection in demanding electrical systems. The fuse is UL Recognized under Guide MSSS2, File E96676, ensuring compliance with industry standards for safety and performance.
- Amperage Rating: 70 A
- Voltage Rating: 5.5 kV
- Interrupt Rating: 50 kA Sym
- Class: R (Current Limiting)
- Configuration: 1-Barrel Ferrule Mounted
- Diameter: 3 inches
- Melt Time: 15-35 seconds
- Application: Motor Circuit Protection
- UL Recognized: Guide MSSS2, File E96676
- Series: ACLS
Specifications
- Part Number: 5ACLS-2R
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : CLS
- Type : ACLS
- Voltage : 5080
- Amperage : 70
- AIC rating : [email protected]
- Connection : Ferrule
- Diameter : 3
- Class Rating : R
- Barrels : 1
Product Data
- UPC : 786670221296
- GTIN : 00786670221296
- Country of Origin : United States
- Dimensions : 15.9 in x 4.2 in x 3 in (Length/Depth x Height x Width)
- Weight : 9
- Certification : ,IEEE Std. C37.41
