Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description
5ACLS-12R

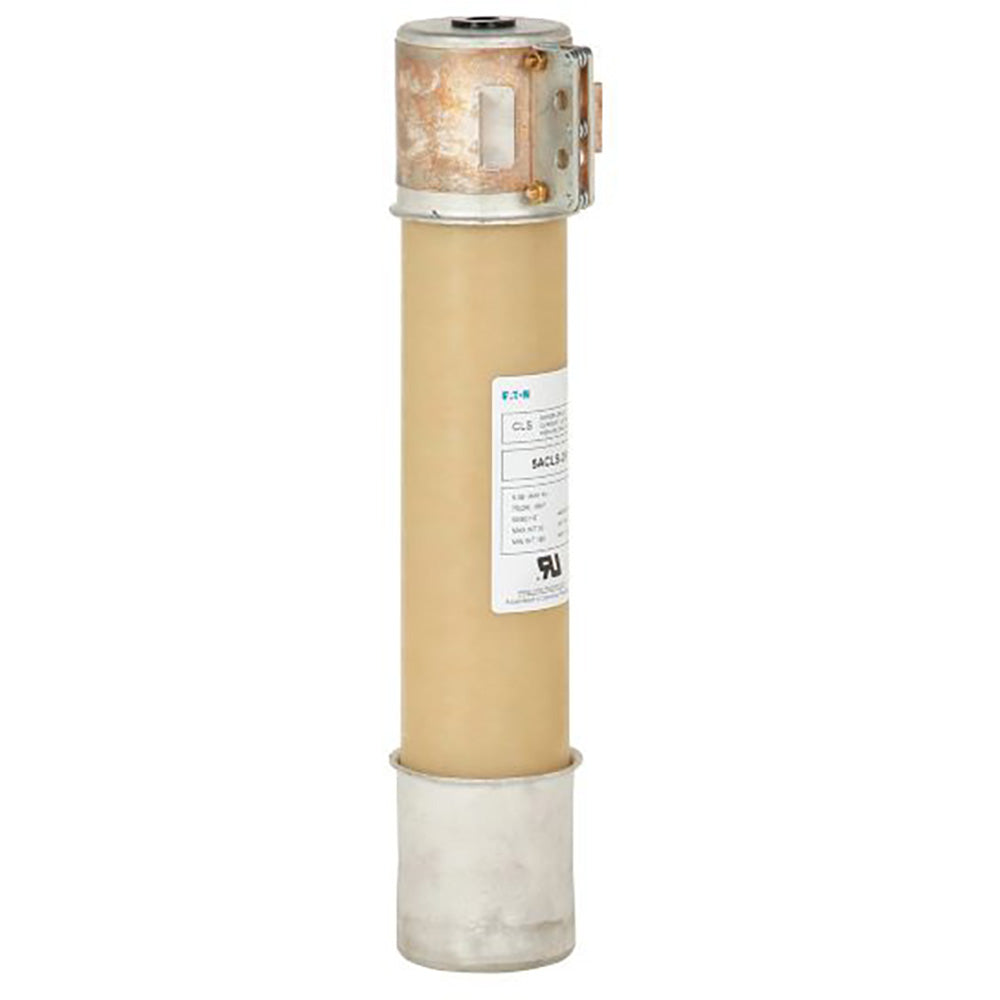

5ACLS-12R is an Eaton ACLS series Class R current limiting fuse designed for motor start applications, featuring a 230A amperage rating, 4.8kV voltage rating, and a 50kA interrupt rating. This single barrel fuse is built for reliable protection in medium voltage systems. This Eaton Bussmann series ACLS fuse is engineered for use with Ampgard 400A motor starters and offers ferrule and bolt-on construction for secure mounting. The 12R designation indicates its compatibility with specific mounting configurations, and it is rated for motor start duty. The fuse has a 3-inch diameter and is designed for single barrel applications.
- Part Number: 5ACLS-12R
- Manufacturer: Eaton
- Series: ACLS
- Amperage Rating: 230A
- Voltage Rating: 4.8kV
- Interrupt Rating: 50kAIC
- Class: R
- Mounting Type: Ampgard
- Barrels: 1
- Construction: Ferrule and bolt-on
- Application: Motor start
- Special Features: 12R designation
Specifications
- Part Number: 5ACLS-12R
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : CLS
- Type : ACLS
- Voltage : 5080
- Amperage : 230
- AIC rating : [email protected]
- Connection : Ferrule
- Diameter : 3
- Class Rating : R
- Barrels : 1
Product Data
- UPC : 051712527804
- GTIN : 00786670221630
- Country of Origin : Dominican Republic
- Dimensions : 15.9 in x 4.2 in x 3 in (Length/Depth x Height x Width)
- Weight : 9
- Certification : ,IEEE Std. C37.41
