Product Info
- Manufacturer:Westinghouse
- Sub-Category:Medium Voltage
Description
5978C62G01

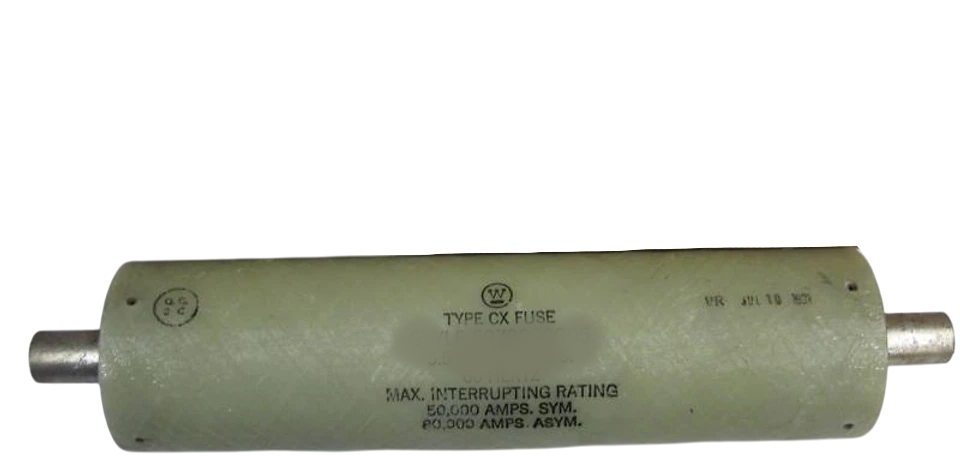

5978C62G01 is a Westinghouse CX Medium Voltage Fuse rated for 4300V at 18A with Class C current limiting characteristics designed for general purpose distribution applications. This single-barrel fuse features a 1.13 inch diameter ferrule and delivers reliable fault isolation with an 80kA interrupting capacity at full voltage, meeting ANSI standards for medium voltage power distribution systems.
- Voltage Rating: 4300V
- Current Rating: 18A
- Fuse Type: Class C Current Limiting
- Barrel Configuration: Single Barrel
- Ferrule Diameter: 1.13 inches
- Interrupting Capacity: 80kA at full voltage
- Symmetric Rating: 50,000A
- Asymmetric Rating: 80,000A
- Series: CX Medium Voltage
- Standards Compliance: ANSI
Specifications
- Part Number: 5978C62G01
- Manufacturer : Westinghouse
- Brand : Westinghouse
- Category : Fuse
- Item Subcategory : Medium Voltage
- Family : CX
- Type : CX
- Voltage : 4300
- Amperage : 18
- AIC rating : 80kA@4300V
- Connection : Clip Style
- Diameter : 1.13
- Class Rating : C
- Barrels : 1
Product Data
- Weight : 12
