592-1EFGD - Allen-Bradley E100 Advanced Electronic Overload Relay, 20-100A, 690/1000VAC, Trip Class 10/15/20/30, NEMA Size 3, Direct Mount, IEC/NEMA Contactor Compatible

592-1EFGD

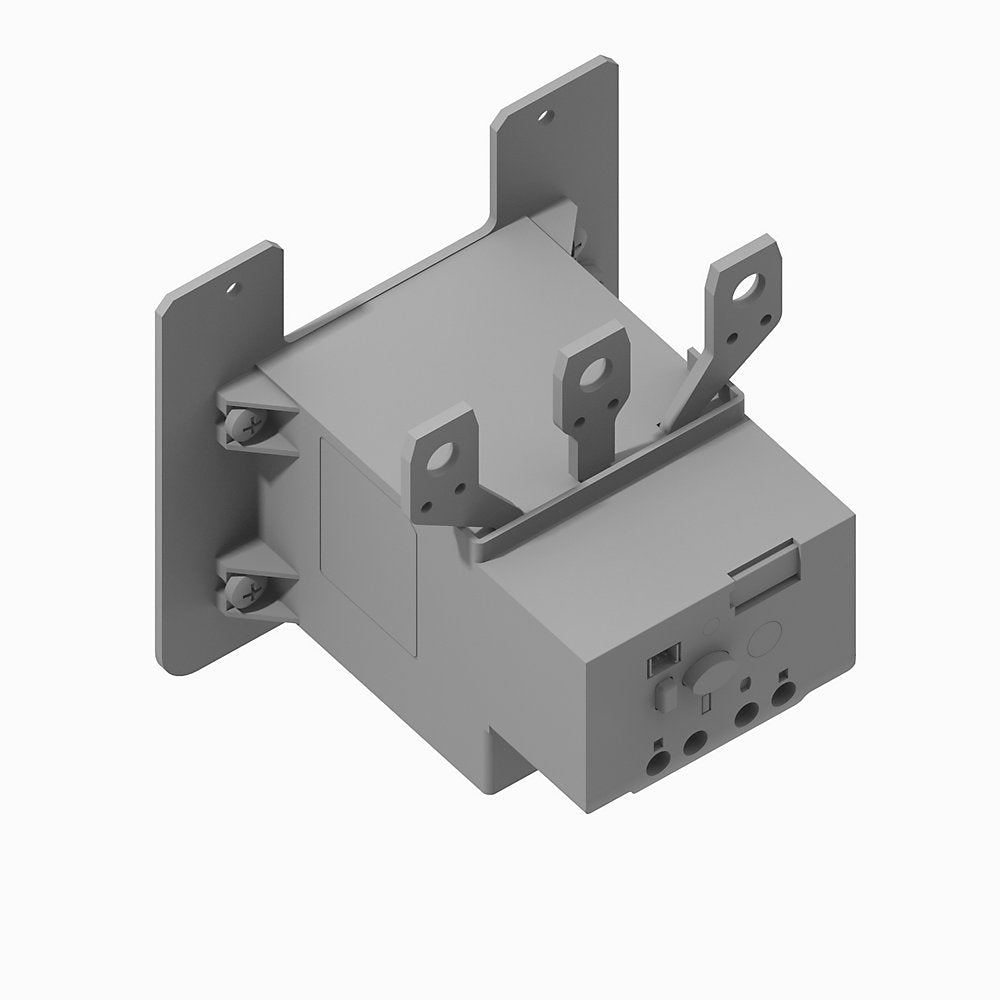

592-1EFGD is an Allen-Bradley E100 advanced electronic overload relay designed for robust motor protection in demanding industrial applications.

This relay features electronic overload detection, selectable trip classes (10, 15, 20, 30), RMS current sensing, and both manual and automatic reset options. It is compatible with both IEC and NEMA contactors, offers pass-thru wiring, and supports external current transformers for high-current setups. The unit includes test and reset buttons, remote reset capability, and is designed for direct mounting. Certifications include cULus Listed, CE Marked, and compliance with international standards for safety and performance.

Key Specifications
• Amperage: 20–100A
• Voltage: 690/1000VAC
• Poles: 3
• Mounting Type: Direct mount for IEC and NEMA contactors
• Interrupt Rating: Not specified in available sources
• Series/Frame: E100, NEMA Size 3
• Trip Unit: Electronic, selectable trip class (10, 15, 20, 30)
• Certifications: cULus Listed, CE Marked, RCM, ABS, RINA, DNV/GL, CCC, KC, EAC, China RoHS
• Reset: Manual or automatic
• Current Sensing: True RMS (50/60 Hz)
• Configuration: Simple, with test and reset buttons
• Environmental Rating: -20 to 65°C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 592-1EFGD
• Manufacturer : Allen-Bradley
• Brand : Allen-Bradley
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : Bulletin 592
• Temp Rating : -13-158 ¡F (-25-70 ¡C)

Product Data

• UPC : 889508723006
• GTIN : 10781180129688
• Weight : 5
• Temp Rating : -13-158 ¡F (-25-70 ¡C)
