Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description
55GFMSJ200E

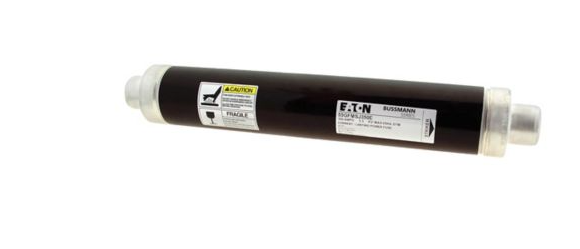

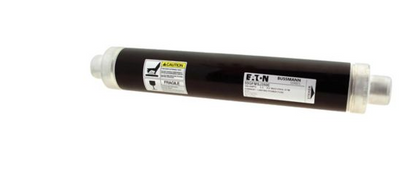

55GFMSJ200E is a medium voltage DIN fuse designed for high reliability in demanding electrical environments. This Eaton Bussmann series fuse provides robust protection for circuits requiring a 200A current rating and 5.5kV voltage rating. The fuse features a single barrel design and includes a visual indicator for easy status monitoring. It is constructed as a cartridge, ceramic fuse for durability and performance. This medium voltage fuse is engineered for slow blow response, making it suitable for applications where temporary overloads are expected. The physical dimensions and construction ensure compatibility with standard DIN mounting systems. The fuse is rated for high interrupting capacity, supporting safe operation in industrial and commercial power distribution systems.
- Part Number: 55GFMSJ200E
- Manufacturer: Eaton
- Series: Bussmann
- Current Rating: 200A
- Voltage Rating: 5.5kV
- Interrupt Rating: 65kA
- Mounting Type: DIN
- Fuse Type: Cartridge, Ceramic
- Response Time: Slow Blow
- Indicator: With Indicator
- Barrels: 1
- Construction: High Voltage
Specifications
- Part Number: 55GFMSJ200E
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Type : DIN
- Voltage : 5500
- Amperage : 200
- AIC rating : [email protected]
- Connection : Ferrule
- Diameter : 2
- Class Rating : E
- Barrels : 1
- Clip Center : 17.4
Product Data
- UPC : 005171269206
- GTIN : 00051712692069
- Dimensions : 20.078 in x 2.992 in x 2.992 in (Length/Depth x Height x Width)
- Weight : 10.46
