5358 - Thomas & Betts 2-1/2 Inch 90 Degree Malleable Iron Insulated Liquidtight Connector

5358

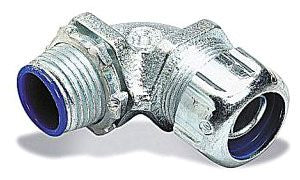

5358 is a 2-1/2 inch, 90 degree insulated liquidtight conduit connector manufactured by Thomas & Betts.

This connector is made of malleable iron with an electro zinc plated and chromate coated finish for corrosion resistance. It is designed to positively bond conduit to boxes or enclosures and is suitable for use with liquidtight flexible metal conduit in indoor or outdoor locations exposed to moisture. The connector features a 2-1/2 inch NPT threaded connection and complies with UL 514B and CSA C22.2 No. 18.3 standards. It meets IEC 61386-1 and -23 requirements and is CE certified. The product supports UL Listed type ratings tested to UL 50E requirements and has NEMA 250 Type 3, 3R, 4, 12, and 13 ingress protection ratings. It operates safely in temperatures from -20 to +105°C (-4 to +221°F). The insulated design includes heat curled insulators to protect wire sheathing and a double bevel sealing ring for a secure seal.

• Material: Malleable Iron
• Finish: Electro Zinc Plated/Chromate Coating
• Size: 2-1/2 Inch
• Angle: 90 Degree
• Thread Type: NPT
• Insulated: Yes
• Standards: UL 514B, CSA C22.2 No. 18.3, IEC 61386-1, -23, CE Certified
• NEMA Ratings: Type 3, 3R, 4, 12, 13
• Operating Temperature: -20 to +105°C (-4 to +221°F)
• Application: Liquidtight Flexible Metal Conduit
• Provides positive bonding to box or enclosure

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 5358
• Manufacturer : Thomas & Betts
• Brand : Thomas & Betts
• Category : Conduit & Fittings
• Family : 53 Series

Product Data

• UPC : 786210053585
• GTIN : 00786210053585
• Weight : 1 lb
