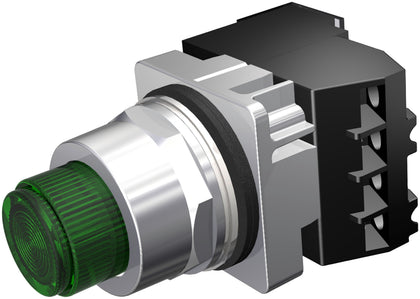

52PT6G3AB Siemens Command/52 Illuminated Pushbutton, 30 mm, Green, 1NO-1NC

52PT6G3AB

52PT6G3AB Siemens Command/52 Illuminated Pushbutton, 30 mm, Green, 1NO-1NC

52PT6G3AB is a Siemens Command/52 illuminated pushbutton with a 30 mm nominal size, 2-position momentary operation and 1NO-1NC contacts. This transformer-type unit combines 120 V AC illumination supply with a green LED, an extended plastic lens button and a chrome-finish metal body.

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Common Applications

• Momentary control switching with illuminated pushbutton actuation

Key Features

• Button: Extended, plastic lens
• Illumination: Green LED, lamp included
• Body: Metal, chrome finish
• Contact Rating: A600/P600

Specifications

• Manufacturer: Siemens
• Full Part Number: 52PT6G3AB
• Product Type: Illuminated Pushbutton
• Series or Family: Command/52
• Nominal Size: 30 mm
• Operating Type: 2-position momentary
• Contact Configuration: 1NO-1NC
• Illumination Supply: 120 V AC, transformer type
• Illumination: Green LED, lamp included
• Button: Extended, plastic lens
• Body: Metal, chrome finish
• Contact Rating: A600/P600
• Certifications: UL Listed, CSA Certified
• NEMA Type: 1, 3, 3R, 4, 4X, 12, 13
• IP Protection: IP66; terminals IP20
• Thermal Current: 10 A
• Terminals: Screw-type
• Lamp Transformer Output: 6 V

Product Identification

FAQ

What is Siemens 52PT6G3AB?

Siemens 52PT6G3AB is a Command/52 illuminated pushbutton with a chrome-finish metal body and 30 mm nominal size.

What contacts and operation does 52PT6G3AB provide?

The 52PT6G3AB configuration is 1NO-1NC with 2-position momentary operation and A600/P600 contact ratings.

What does the 120 V AC specification describe?

For 52PT6G3AB, 120 V AC identifies the transformer-type illumination supply; the lamp transformer output is 6 V.

Which lens color and button style identify this part?

The exact 52PT6G3AB part has a green LED lamp and an extended button with a plastic lens.

Specifications

• Part Number: 52PT6G3AB
• Brand : Siemens

Product Data

• UPC : 662643314007
• GTIN : 00662643314007
• Country of Origin : Mexico
• Dimensions : 0.154 x 0.311 x 0.154 inch
• Weight : 0.066 lb
