50LET - Eaton 50A 280VAC/150VDC High Speed British Standard Fuse Class aR

50LET

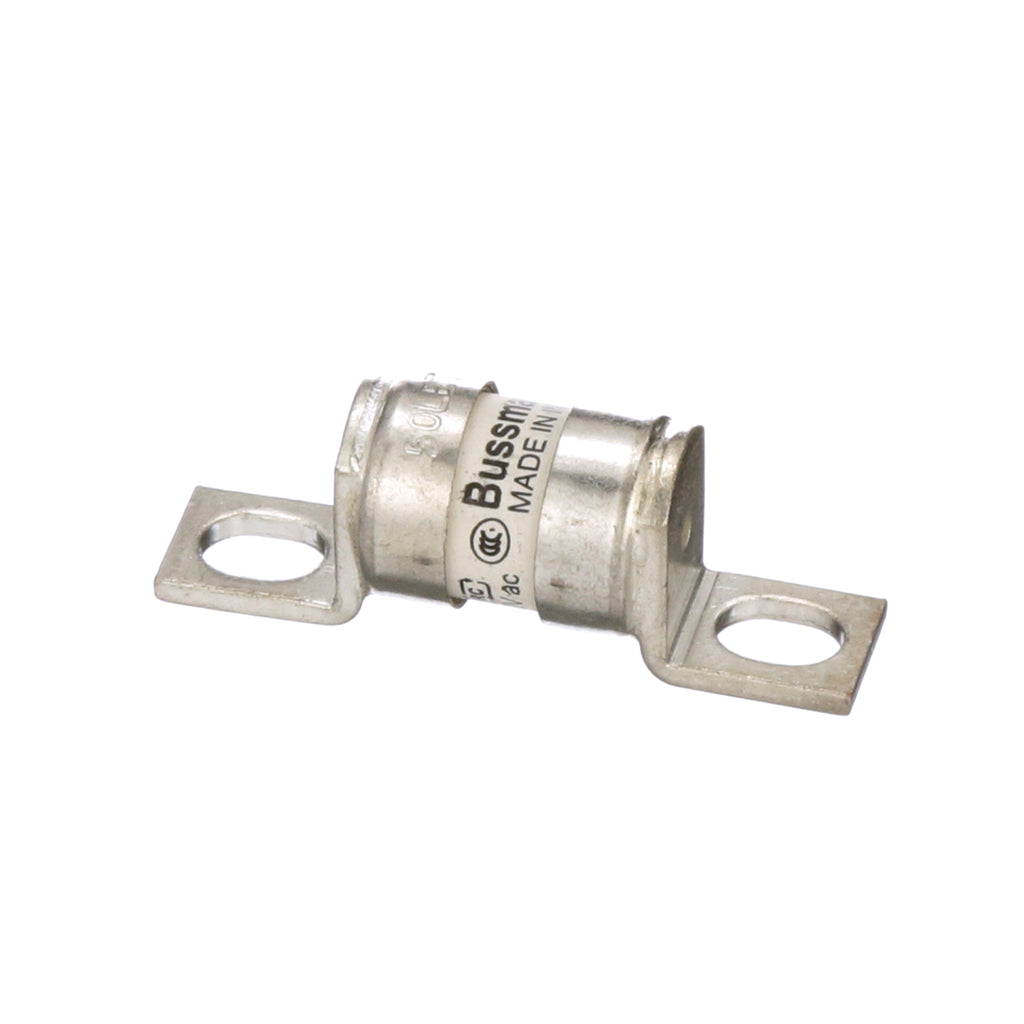

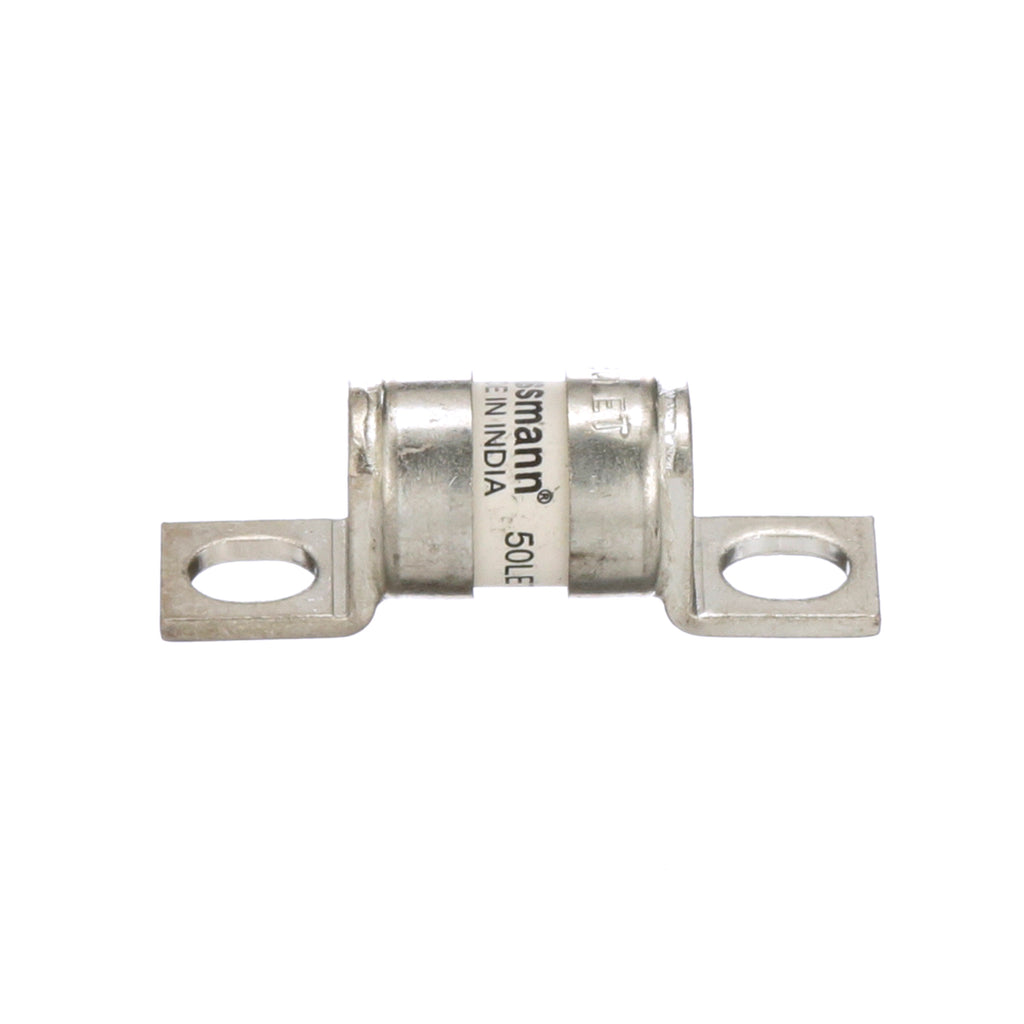

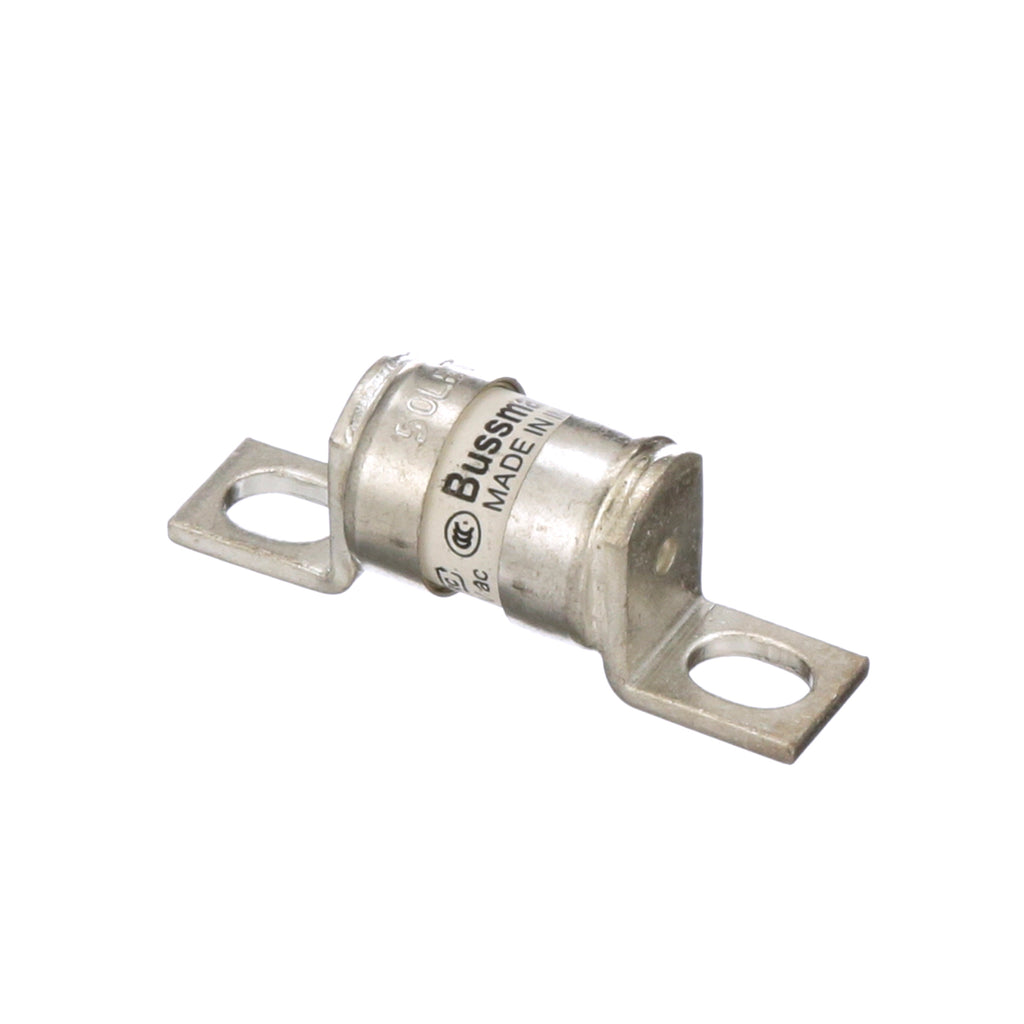

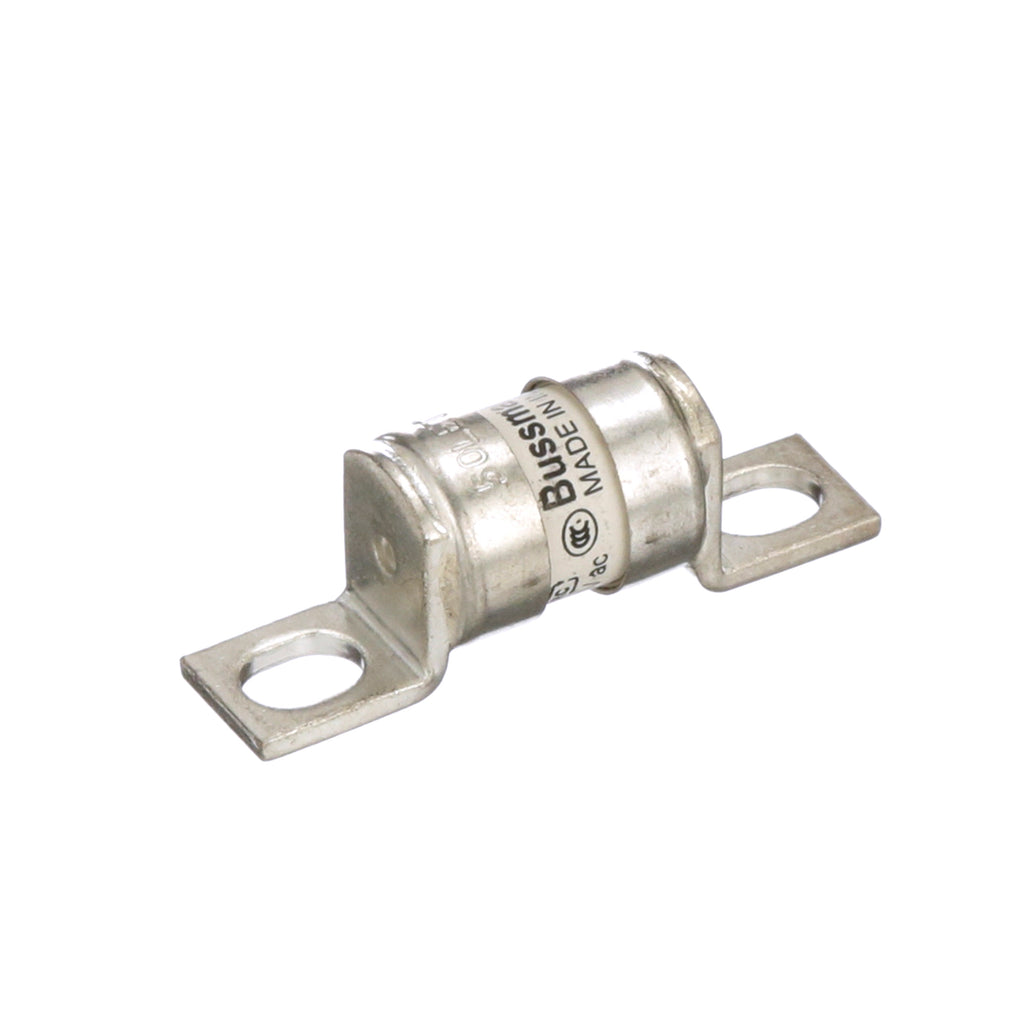

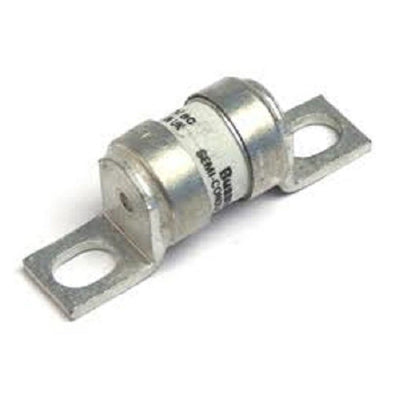

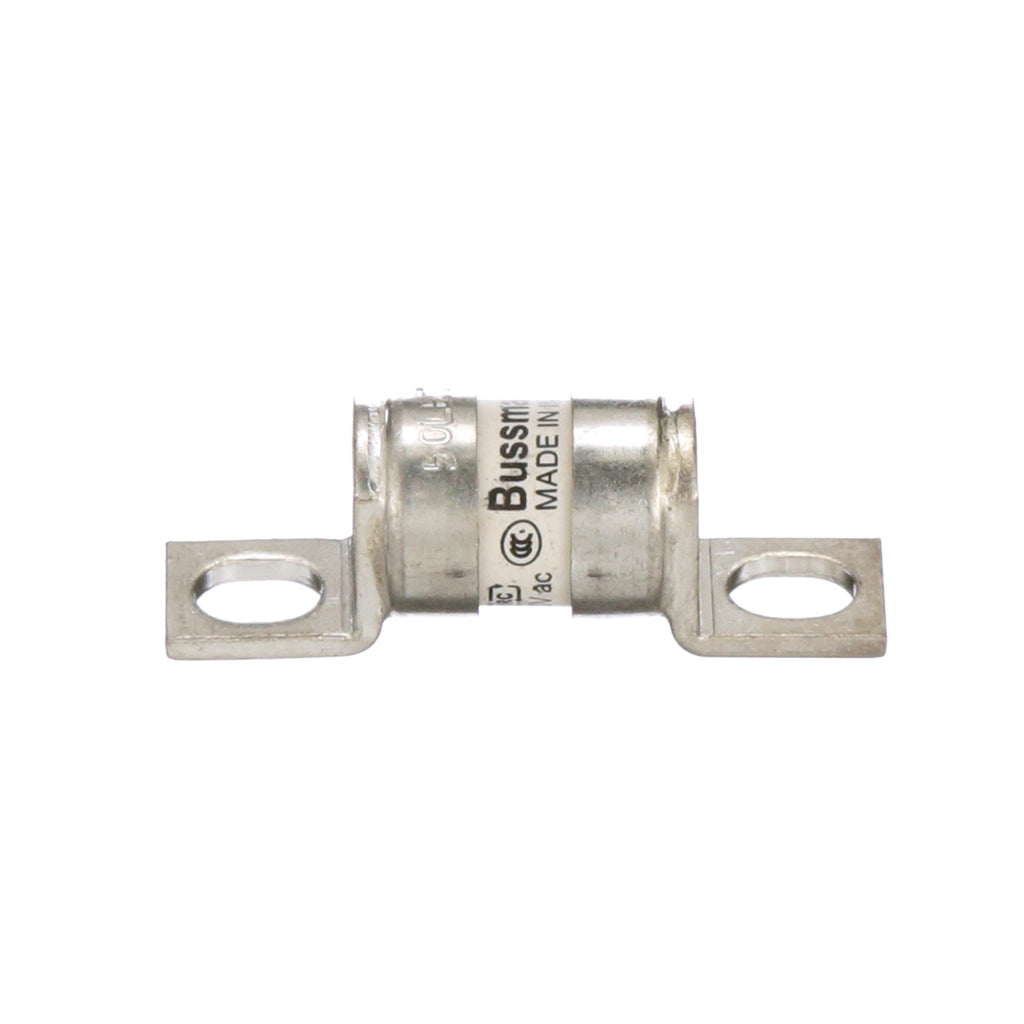

50LET is a high speed British standard fuse from Eaton Bussmann series rated at 50 amps and 280 volts AC/150 volts DC.50LET features a Class aR rating with a breaking capacity of 200 kA RMS symmetrical at AC and 50 kA DC at 150 VDC. It is designed for semiconductor protection and power management applications with excellent cycling capability and low energy let-through. The fuse has a stud mounting style with dimensions approximately 55 mm length and 18 mm width/height.

Key Specifications
• Amperage Rating: 50 A
• Voltage Rating AC: 280 V
• Voltage Rating DC: 150 V
• Interrupt Rating: 200 kA RMS Symmetrical AC, 50 kA DC
• Class: aR
• Mounting Type: Stud
• Dimensions: 55 mm length, 18 mm width/height
• Weight: 31.4 g
• Certifications: IEC Rated, UL Recognized, CE Marked, RoHS Compliant
• Application: Semiconductor, DC common bus, DC drives, power converters/rectifiers

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 50LET
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : BS 88
• Type : LET
• Voltage : 240
• Amperage : 50
• AIC rating : 200kA@240Vac
• Connection : Stud

Product Data

• UPC : 05171283567
• GTIN : 00051712835671
• Country of Origin : India
• Dimensions : 55 mm x 18 mm x 18 mm (Length/Depth x Height x Width)
• Weight : 0.07222
