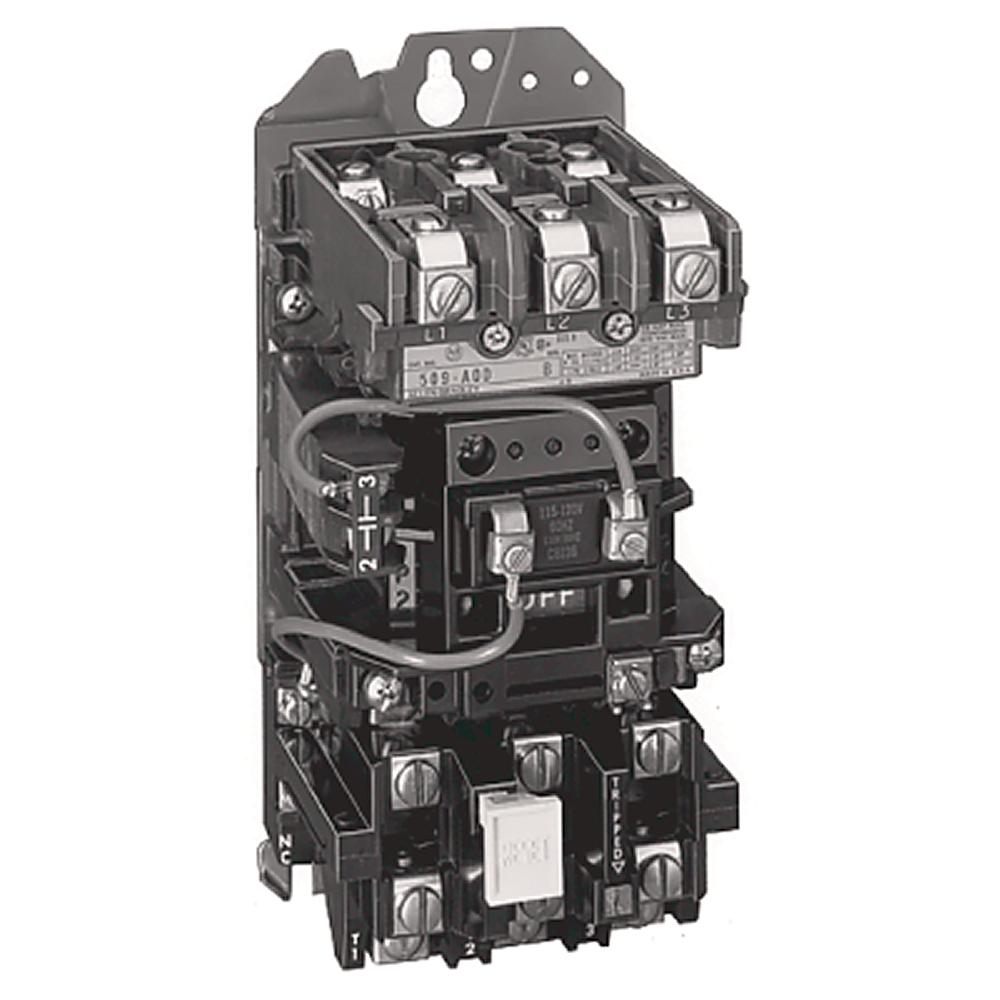

509-TOD - Allen-Bradley 9 Amp 600VAC 3-Pole 3-Phase NEMA 00 Non-Reversing Motor Starter

509-TOD

509-TOD is a 3-pole, 9 Amp motor starter from Allen-Bradley designed for 600VAC, 3-phase applications with a NEMA 00 frame.509-TOD features a non-reversing direct online starter configuration with a coil voltage of 110VAC at 50Hz and 120VAC at 60Hz. It is an open type starter suitable for motor control with a continuous current rating of 9 Amps and a service limit current rating of 11 Amps. The starter supports 3-phase power and is built to NEMA size 00 standards, providing reliable motor protection and control.

Key Specifications
• Manufacturer: Allen-Bradley
• Part Number: 509-TOD
• Amperage: 9 Amps continuous
• Voltage: 600VAC motor voltage
• Coil Voltage: 110VAC at 50Hz, 120VAC at 60Hz
• Poles: 3
• Phase: 3
• Frame Type: NEMA 00 (509 series)
• Type: Non-Reversing Direct Online Starter
• Enclosure: Open type (no enclosure)
• Interrupt Rating: Not explicitly specified
• Trip Unit: Eutectic Alloy Overload Relay (optional)
• Certifications: Meets NEMA standards

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 509-TOD
• Manufacturer : Allen-Bradley
• Brand : Allen-Bradley
• Category : Motor Control
• Item Subcategory : Motor Starter
• Compatible Frames : SKHA

Product Data

• UPC : 781180249686
• GTIN : 781180249686
• Weight : 2.49 lb
