Product Info
- Manufacturer:Allen-Bradley
- Sub-Category:Motor Starter
Description
509-TAD-1

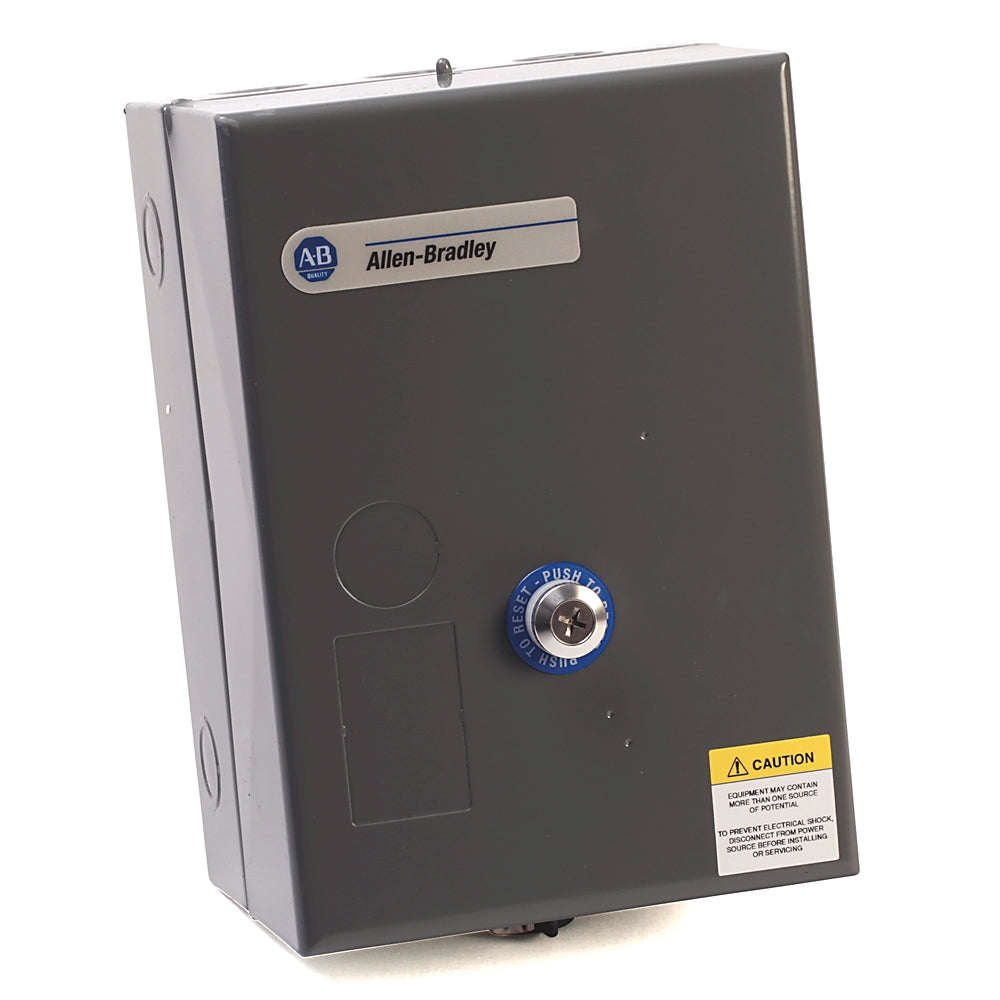

509-TAD-1 is a full voltage non-reversing motor starter from Allen-Bradley designed for 3-phase motor control applications.
This NEMA Size 00 starter features a Type 1 general purpose enclosure and operates at a control voltage of 110/120V 50/60 Hz. It includes a eutectic alloy overload relay suitable for motors up to 1-1/2 HP at 575V three-phase load voltage. The starter supports a continuous current rating of 9 amps and a service limit current rating of 11 amps. It is surface mountable and includes a factory-installed START-STOP push button. The device is designed for horizontal operation and uses pressure terminals for power connections.
- Amperage: 9 A continuous current rating
- Voltage: Control voltage 110/120 V 50/60 Hz, Load voltage 115–575 V
- Phases: 3 Phase
- NEMA Size: 00
- Enclosure: Type 1 General Purpose
- Overload Relay: Eutectic Alloy
- Maximum Horsepower: 1-1/2 HP at 575 V three-phase
- Mounting Type: Surface Mount
- Operating Position: Horizontal
- Power Terminals: Pressure Terminals, wire size 16–10 AWG
- Mechanical Life: 10 million operations
- Includes factory-installed START-STOP push button
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 509-TAD-1
- Manufacturer : Allen-Bradley
- Brand : Allen-Bradley
- Category : Motor Control
- Item Subcategory : Motor Starter
- Compatible Frames : THED
Product Data
- UPC : 781180249358
- Weight : 4.95
