509-DOD-A2L - Allen-Bradley 90A 3-Phase NEMA 3 Full Voltage Non-Reversing Motor Starter 110/120V Control Voltage Open Type

509-DOD-A2L

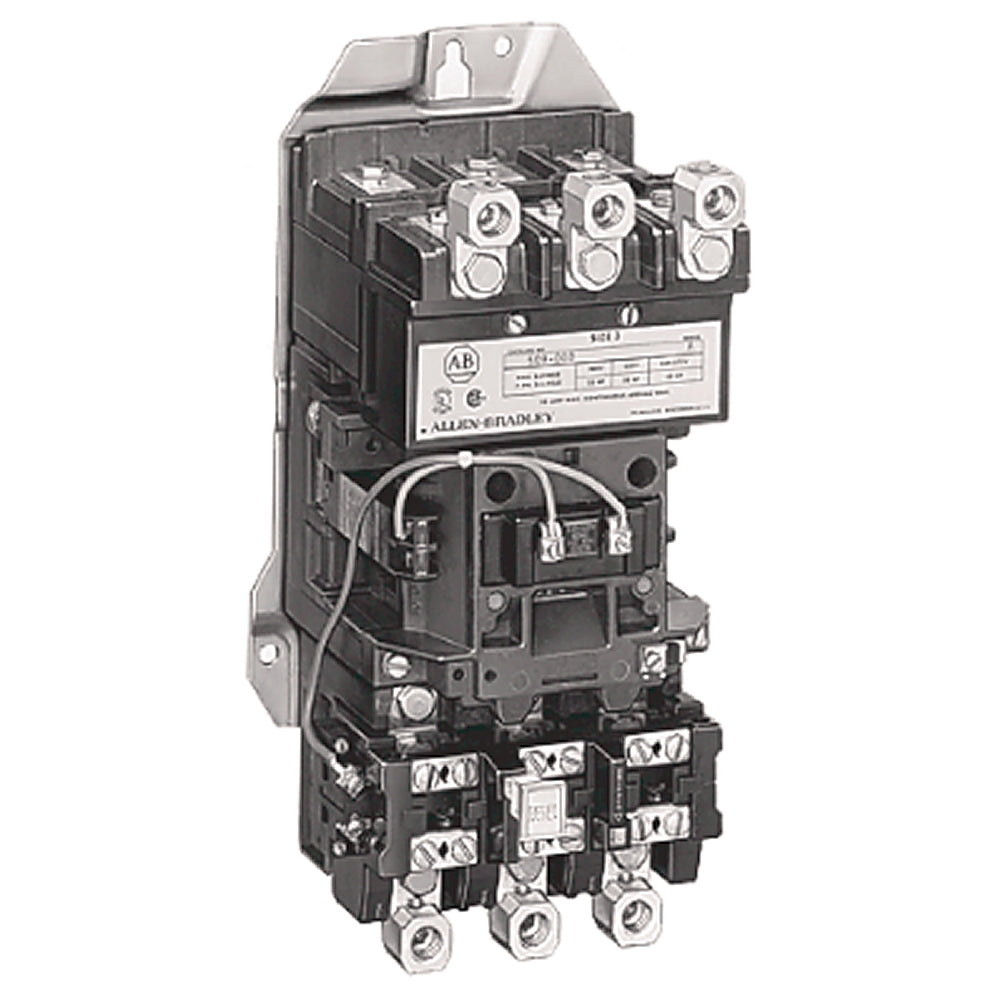

509-DOD-A2L is a 90 amp, 3-phase, NEMA Size 3 full voltage non-reversing motor starter from Allen-Bradley designed for open type mounting with 110/120V control voltage.

This motor starter features a NEMA Size 3 frame suitable for heavy-duty motor control applications. It supports 3-phase power with a continuous current rating of 90 amps and is rated for motor loads up to 30 HP at 230V and 50 HP at 380-415V. The starter includes an E100 solid-state overload relay adjustable from 18 to 90 amps for motor protection. It is designed for open style installation without enclosure and operates at 110/120V 50/60 Hz control voltage. The starter meets multiple certifications including CSA, CUL, KC, Marine, and UL standards.

• Amperage: 90 Amps
• Voltage: 600V maximum load voltage
• Control Voltage: 110/120V 50/60 Hz
• Poles: 3-Phase
• NEMA Size: 3
• Type: Full Voltage Non-Reversing Starter
• Mounting: Open Type (no enclosure)
• Overload Relay: E100 Solid-State, 18-90A adjustable
• Certifications: CSA, CUL, KC, Marine, UL
• Maximum HP Rating: 30 HP @ 230V, 50 HP @ 380-415V
• Auxiliary Contacts: 1 NO
• Corrosion Resistance: All metal parts treated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 509-DOD-A2L
• Manufacturer : Allen-Bradley
• Brand : Allen-Bradley
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Bulletin 509
• Voltage : 600
• Amperage : 90
• Poles : 3
• Coil Voltage Maximum : 120
• Compatible Frames : SGHA

Product Data

• Weight : 20
