Description
509-BOA

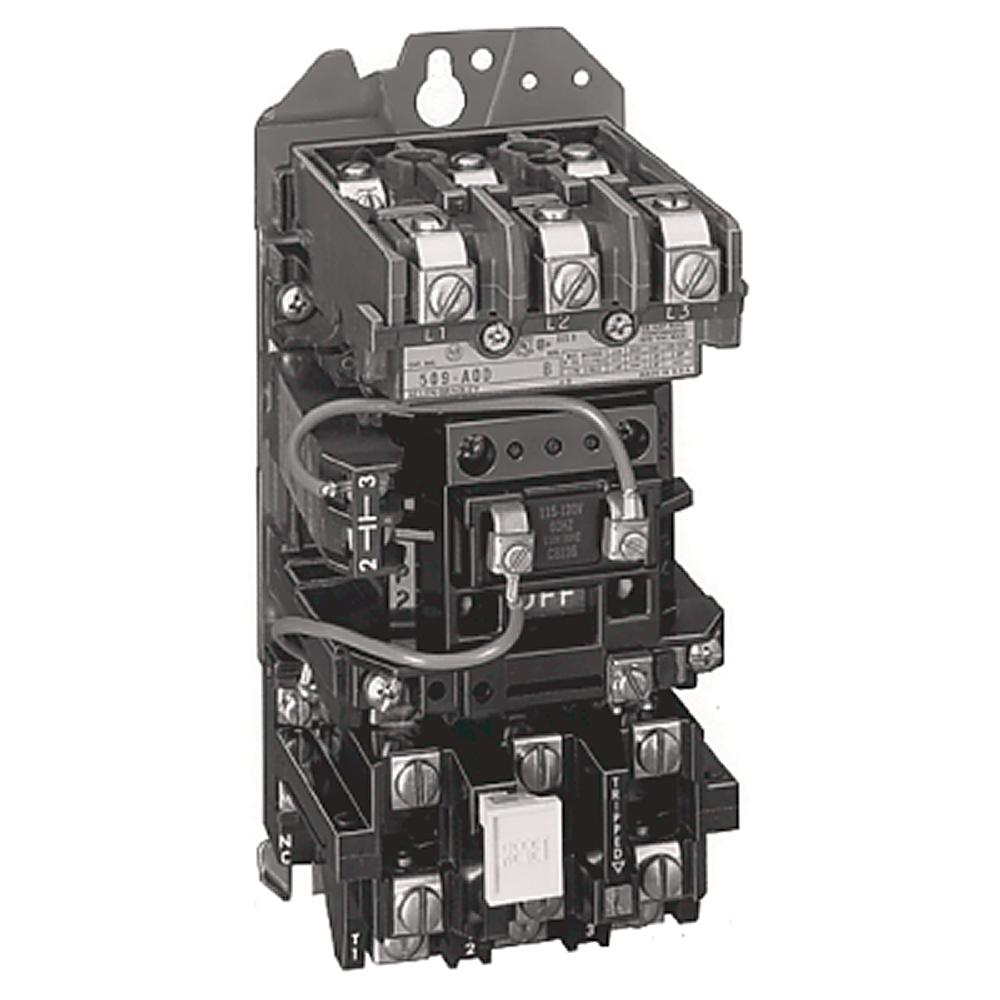

509-BOA is an Allen-Bradley NEMA Size 1 open-type full voltage non-reversing motor starter designed for three-phase motor control applications. This robust magnetic starter features a continuous current rating of 27 amperes at 600VAC maximum, with a control voltage of 220/240V at 50/60Hz. The unit is rated for 7.5 HP at 230V, 10 HP at 380-415V, and 10 HP at 460-575V, making it suitable for a wide range of industrial motor control requirements. The 509-BOA incorporates a eutectic alloy overload relay for motor protection and is part of the Bulletin 509 motor control system family. Its modular kit design allows for flexible configuration and integration into existing control systems.
- NEMA Size: 1
- Poles: 3
- Continuous Current Rating: 27 Amps
- Voltage Rating: 600VAC
- Control Voltage: 220/240V 50/60Hz
- Horsepower: 7.5 HP at 230V
- Overload Relay: Eutectic Alloy
- Enclosure Type: Open Style
- Mechanical Life: 10 Million Operations
- Operating Temperature Range: -25 to +65 degrees Celsius
- Wire Size for Power Terminals: 14 to 8 AWG
- Type of Power Terminal: Saddle or Wire Clamps
Specifications
- Part Number: 509-BOA
- Manufacturer : Allen-Bradley
- Brand : Allen-Bradley
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Bulletin 509
- Type : 509-B
- Voltage : 600
- Amperage : 27
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 240
- Nema Rating : 0
- Compatible Frames : SFHA
Product Data
- UPC : 781180160790
- GTIN : 00781180160790
- Weight : 5
