Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description
5.5CAVH1E

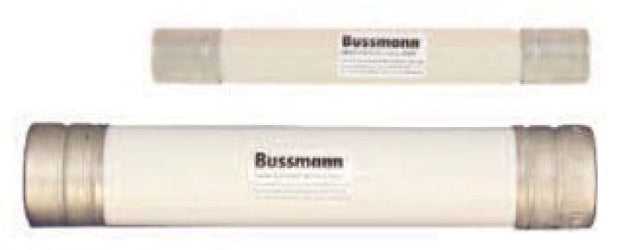

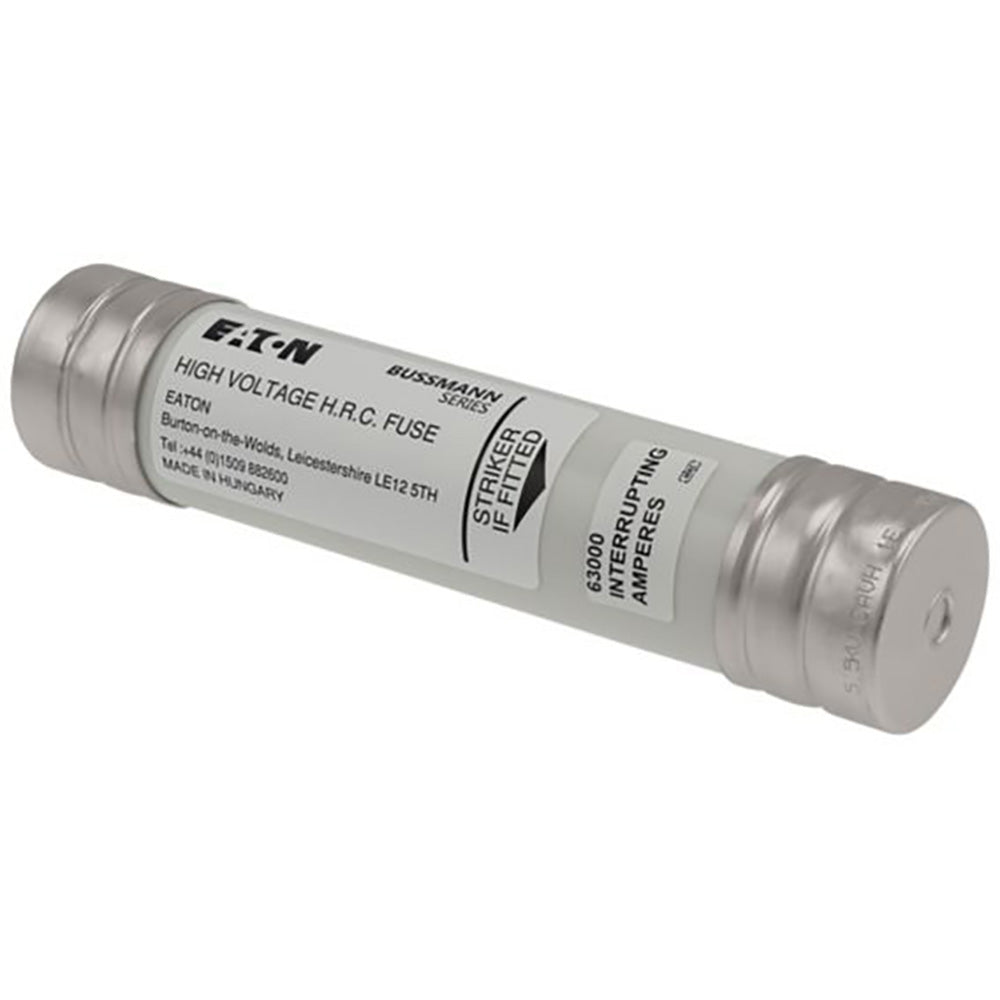

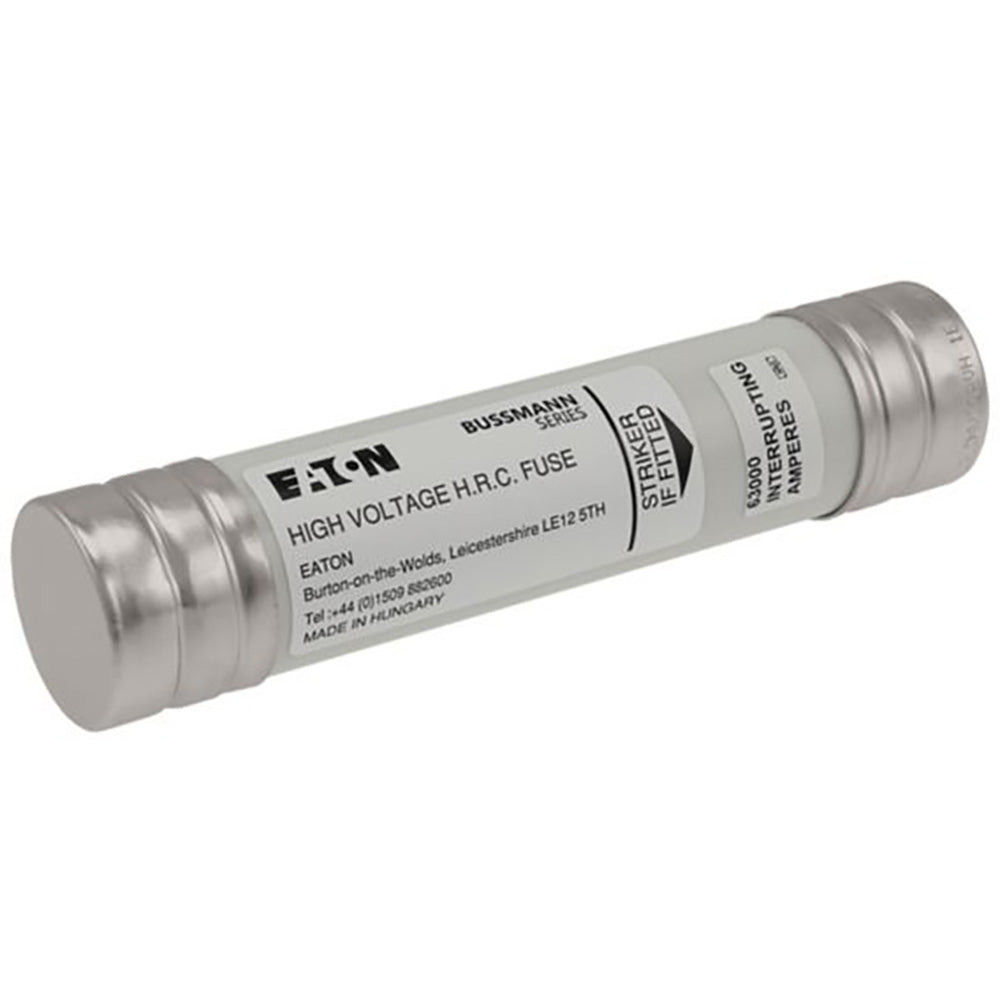

5.5CAVH1E is a medium voltage VT fuse-link from Eaton's Bussmann series designed for auxiliary transformer protection.This fuse-link features a 1 ampere rating with an AC voltage rating of 5.5 kV. It measures 187 x 41.3 mm and is a non-indicating type, suitable for backup protection applications. The fuse complies with BS, IEC, and US standards and is classified under the 1E series.
- Key Specifications
- Amperage Rating: 1 A
- Voltage Rating: AC 5.5 kV
- Fuse Size: 187 x 41.3 mm
- Fuse Type: VT fuse-link, medium voltage
- Series: Bussmann
- Fuse Indicator: Non Indicating
- Application: Protection of auxiliary transformers
- Standards: BS, IEC, US
- Series Classification: 1E
- Resistance: 12.1 ohms
- Part Number: 5.5CAVH1E
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : CAV
- Type : CAV
- Voltage : 5500
- Amperage : 1
- AIC rating : [email protected]
- Diameter : 1.63
- Class Rating : E
- Barrels : 1
- Clip Center : 6.18
- UPC : 051712794305
- GTIN : 00051712794305
- Country of Origin : United Kingdom
- Dimensions : 187 mm x 41.3 mm x 41.3 mm (Length/Depth x Height x Width)
- Weight : 1.38
