Product Info
- Manufacturer:Bussmann, Cooper Bussmann, Eaton
- Sub-Category:Medium Voltage Fuse
Description
5.5CAVH0.5E

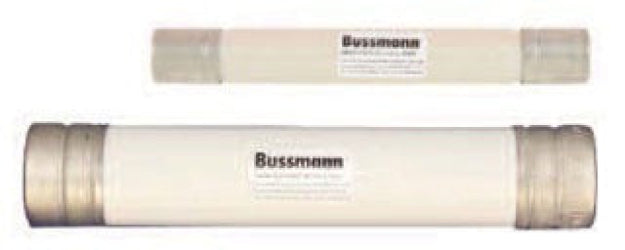

5.5CAVH0.5E is a medium voltage current-limiting fuse from Eaton designed for primary protection of medium voltage potential and small power transformers.5.5CAVH0.5E features a 0.5 ampere rating and is rated for 5.5 kV voltage with a 63kA interrupting rating. It is part of Eaton's 5.5CAVH series of fuses, sized for retrofitting in existing hardware and optimized for indoor/enclosure mounting. This fuse provides superior short-circuit protection with current-limiting capabilities and meets ANSI C37.46 "E" rating requirements.
- Key Specifications
- Amperage: 0.5 A
- Voltage Rating: 5.5 kV
- Interrupting Rating: 63 kA
- Fuse Type: Current-Limiting Medium Voltage Fuse
- Series: 5.5CAVH
- Mounting: Indoor/Enclosure
- Application: Protection of medium voltage potential and small power transformers
- Standards: Meets ANSI C37.46 "E" rating
- Dimensions: Approximately 7.375 inches length, 1.63 inches diameter
Specifications
- Part Number: 5.5CAVH0.5E
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : CAV
- Type : CAV
- Voltage : 5500
- Amperage : 0.5
- AIC rating : [email protected]
- Diameter : 1.63
- Class Rating : E
- Barrels : 1
- Clip Center : 6.18
Product Data
- UPC : 051712835978
- GTIN : 00051712835978
- Country of Origin : United Kingdom
- Dimensions : 187 mm x 41.3 mm x 41.3 mm (Length/Depth x Height x Width)
- Weight : 1.38
