Product Info
- Manufacturer:Appleton
- Sub-Category:Quick-Connect device / enclosure
Description
4Q50FM

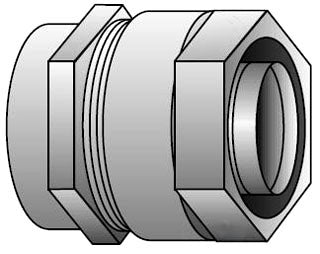

4Q50FM is a liquidtight combination coupling from Appleton designed to secure, ground, and seal liquidtight flexible metal conduit to threaded rigid conduit and IMC.4Q50FM features a female NPT hub, zinc-plated malleable iron construction, and is part of the 4Q-FM series. It includes a locknut and KO sealing ring for reliable grounding and sealing in wet or harsh environments. This coupling is UL Listed for liquidtight, raintight, oiltight, and concretetight applications, suitable for use with 1/2 inch trade size conduit.
- Manufacturer: Appleton
- Part Number: 4Q50FM
- Series: 4Q-FM
- Type: Liquidtight Combination Coupling
- Material: Zinc Plated Malleable Iron
- Thread Type: Female NPT
- Trade Size: 1/2 inch
- Dimensions: 1-1/4 in OD x 1-9/16 in Length
- Includes Locknut and KO Sealing Ring
- UL Listed for Liquidtight, Raintight, Oiltight, Concretetight
- Suitable for grounding per NEC Section 250.118(7)
- Application: Secures, grounds, and seals LFMC to threaded conduit
Additional Information
Heavy-duty connection device; configuration per suffix
Specifications
- Part Number: 4Q50FM
- Manufacturer : Appleton
- Brand : Appleton
- Category : Conduit & Fittings
- Item Subcategory : Quick-Connect device / enclosure
- Section : Electrical conduit coupling
- Family : 4Q-FM
Product Data
- UPC : 783126617153
- Dimensions : 1-1/4 in OD x 1-9/16 in L
- Weight : 0.25
